measuring transformers 150 A / 333 mV (33290)

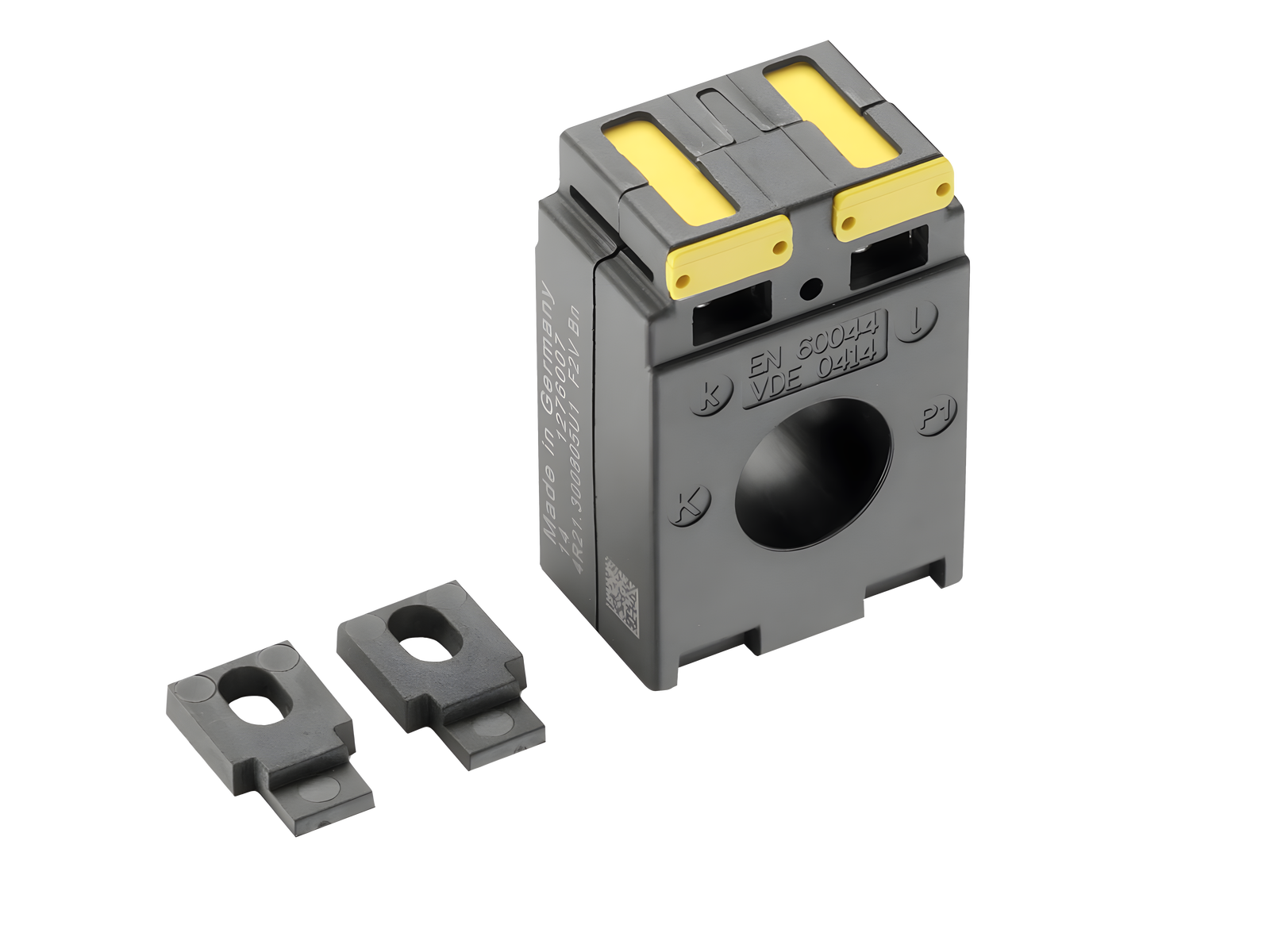

The picture may show a similar product.

说明

订货号 33290000A

measuring transformers 150 A / 333 mV

2.5 VA / 精度等级 0.5

尺寸 00

短期内将供货

系统

185Power

产品组 23

分组

24
包装件数 1
EAN 4021267332907
ECLASS 6.1 27210902
ECLASS 7.1 27210902
ETIM 4.0 EC002048
ETIM 5.0 EC002048

认证

标准

IEC 61869-1:2007
IEC 61869-2:2012

CCC 认证: 无需强制认证

产品信息

尺寸: CT3
Details IEC
标准
IEC 61869-1:2007
IEC 61869-2:2012
Electrical data IEC
一次额定电流 Ipr: 150 A
sec. rated voltage: 333 mV
burden: 2 kOhm
accuracy class (current): 0.5
最大工作电压 Um: 720 V
发热短时电流 lth: 9 kA
class of insulation: E
over-current limitation factor: FS5
机械数值
宽 x 高 x 厚: 44 x 30 x 66
重量: 14.0 kg/100
CT can be integrated in the device: ja
CT can be integrated in the CT module: nein
sealable: nein
连接端
double terminal
min. cross-section: 2.5 mm²
最大横截面积: 4 mm²
Not suitable for aluminium cables !

Application notes

Not suitable for aluminium cables !
