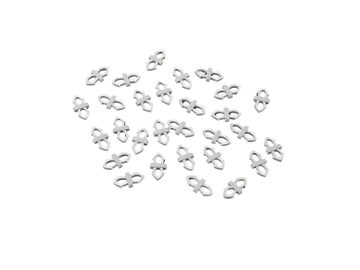

The picture may show a similar product.
订货号 32302000A
EQUES®CrossBoard
转接器 16 A
L3 相,1 个固定支承导轨，带导线 AWG 14 (2.5 mm²)
18 x 160
带 CrossLink® 接口
系统
CrossBoard® 125A / 250A, CrossBoard® 800 A
| 产品组 | 05 |
分组 |
19 |
| 包装件数 | 6 |
| EAN | 4021267323028 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
标准
IEC 61439-1:2020
UL 508
认证许可
UL
for UL feeder circuits >250V
型号: EQ18-AA
UL 文件: E123577, UL 类别 (适用美国) : NMTR https://www.ul.com
UL 文件: E123577, UL 类别 (适用加拿大) : NMTR7 https://www.ul.com
CCC 认证: 无需强制认证
| Details IEC | |
| 标准 | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| 额定电流（IEC）: | 16 A |
| 额定电压（IEC）AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| 额定冲击耐受电压 Uimp: | 6 kV |
功率输出:
The power dissipation at a typical load of 80 % results to 0.6 W.
(The power dissipation at full load would be 1.0 W.)
| Details UL | |
| 标准 | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| 额定电流 (UL): | 16 A |
| 额定电压 (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 6 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 50 kA |
| 短路电流额定值: |
14 kA with any DIVQ/7 circuit breaker 16 A / 480 V AC
65 kA with any 3-pole NKJH/7 Comb. Motor Controller 16 A / 480 V AC 65 kA with any 1-pole NKJH/7 Comb. Motor Controller 16 A / 277 V AC 50 kA with JFFZ fuse Class CC 20 A / 600 V AC |
| 机械数值 | |
| 宽 x 高 x 厚: | 18 x 160 x 35 |
| 重量: | 6.0 kg/100 |
| 极数: | 1线 |
适用于导线保护开关
| 短路稳定性: | the short-circuit capacity of the combination of adapter and MCB depends on the MCB |
| for UL feeder circuits >250V | |
