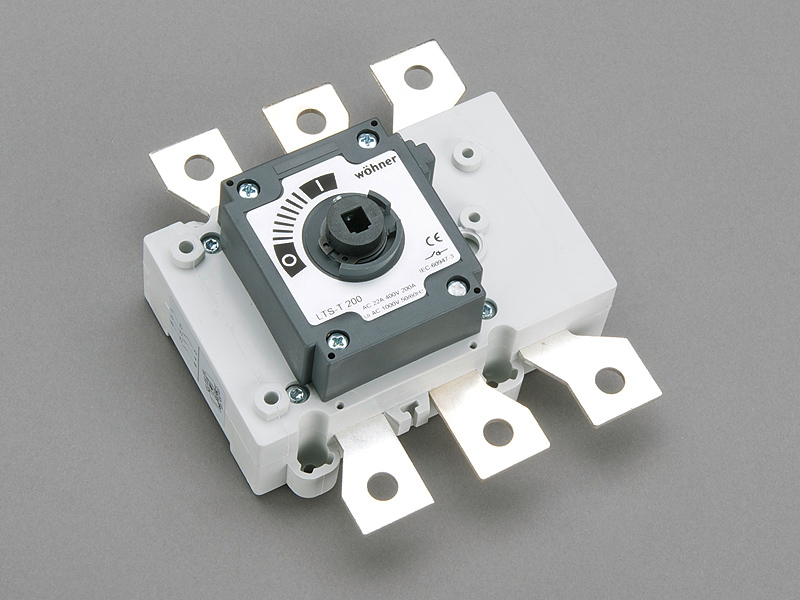

The picture may show a similar product.
系统
Panel
| 产品组 | 14 |
分组 |
03 |
| 包装件数 | 1 |
| EAN | 4021267334284 |
| ECLASS 6.1 | 27371403 |
| ECLASS 7.1 | 27371403 |
| ETIM 4.0 | EC000216 |
| ETIM 5.0 | EC000216 |
标准
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
认证许可
CCC
型号: LTS-T 200
CCC认证: 2015010302764793
| Details IEC | |
| 标准 | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| 端部供电（IEC）: | 200 A |
| 额定电压（IEC）AC: | 690 V |
| rated isolation voltage Ui AC: | 1000 V |
| 额定冲击耐受电压 Uimp: | 8 kV |
| rated short-time withstand current Icw (1.0 s) max.: | 7 kA |
功率输出:
The power dissipation at a typical load of 80 % results to 9.4 W.
(The power dissipation at full load would be 14.7 W.)
| 使用类别 参阅数据表(下载) |
| 机械数值 | |
| 宽 x 高 x 厚: | 131 x 154 x 77 |
| 重量: | 80.0 kg/100 |
| 极数: | 3 极 |
| Mounting: | for mounting plate |
