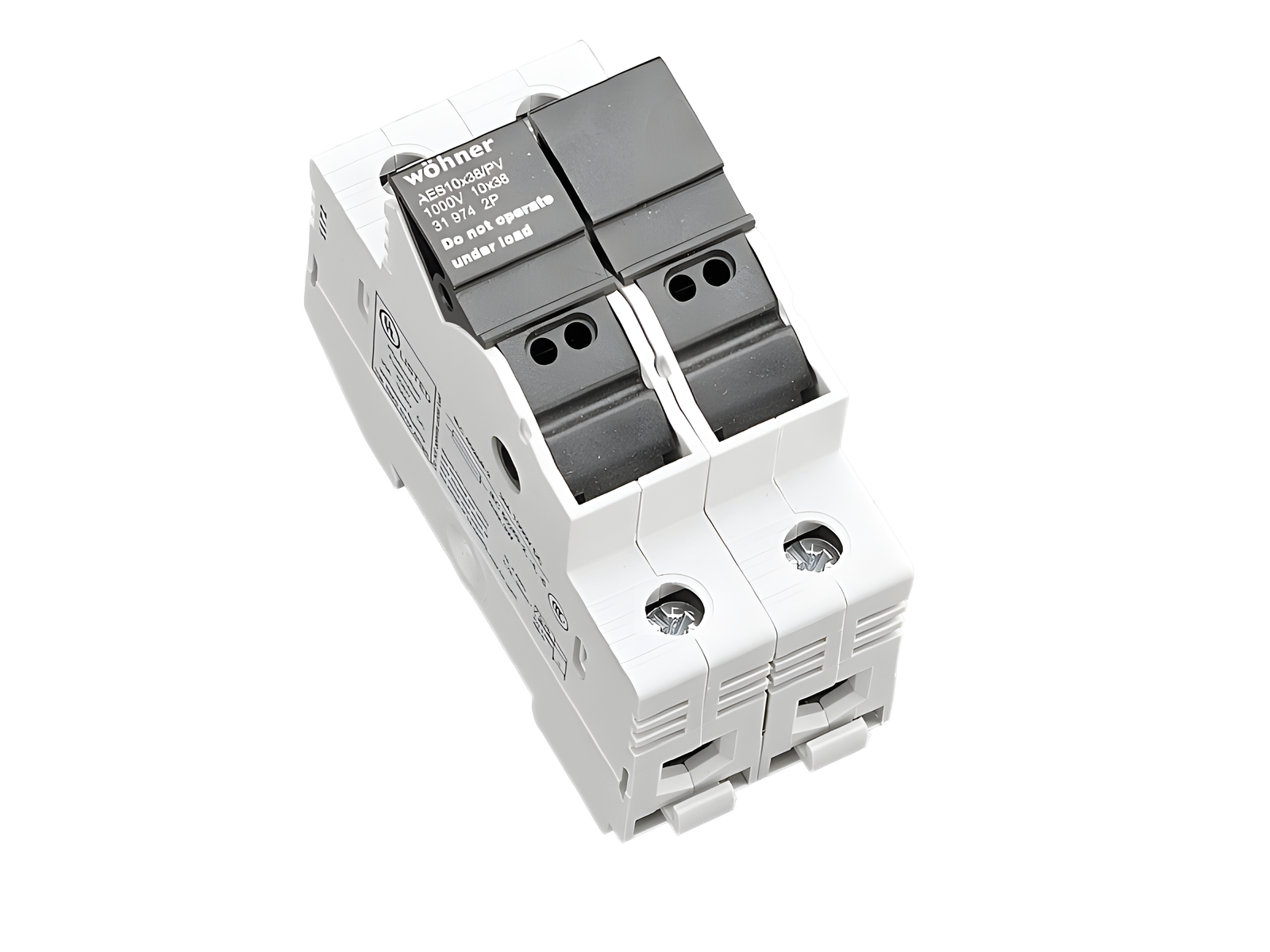

The picture may show a similar product.
订货号 31974 000
AMBUS Panel
圆筒形帽 熔断器支持件
10x38 / 2 极
30 A / 1000 V DC
for mounting rail
系统
Panel
产品优势
连接夹开口空间较大
放置标志牌
| 产品组 | 17 |
分组 |
06 |
| 包装件数 | 6 |
| EAN | 4021267319748 |
| ECLASS 14.0 | 27142190 |
| ETIM 5.0 | EC002705 |
| ETIM 5.0 | EC002705 |
| ETIM 10.0 | EC002705 |
标准
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016
UL 4248-1
UL 4248-19
认证许可
IEC (CB) , CSA , UL , CCC
for UL feeder circuits >250V
型号: AES10x38/PV
EAC Type: AES
UL 文件: E342576, UL 类别 (适用美国) : IZMR https://www.ul.com
CSA 文件: 110285, CSA 等级: 6225-30 https://directories.csa-international.org
CCC认证: 2013010308601276
| for fuse links size: | 10x38 |
| fuse links acc. to standard: | IEC / EN 60269-6 |
| 所使用熔断器的允许损耗功率: | 4 W |
| Details IEC | |
| 标准 | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-2:2013 + A1:2016 |
| Electrical data IEC | |
| 端部供电（IEC）: | 30 A |
| 额定电压 （IEC） DC: | 1000 V |
| 额定绝缘电压 Ui DC: | 1000 V |
| 额定冲击耐受电压 Uimp: | 8 kV |
| cond. short-circuit current with fuses (DC): | 20 kA / 1000 V (30 A) |
| 带熔断器测定的工作等级: | gPV |
功率输出:
The power dissipation at a typical load of 80 % results to 0.4 W.
(The power dissipation at full load would be 0.6 W.)
| Supplementary data IEC | |
|
下述参数已经在特定条件下通过测试得到验证。开始设计之前，请联系维纳尔咨询这些条件。 |
| 最大电压 IEC DC: | 1000 V |
| 最小允许工作温度 | -40°C |
| 最大允许工作温度 | 65°C |
| 熔断器在使用时推荐使用镀银盖罩 |
| Details UL | |
| 标准 | |
|
UL 4248-1
UL 4248-19 |
| for UL feeder circuits >250V | |
| suitable for field-installed conductors |
| Electrical data UL | |
| 额定电流 (UL): | 30 A |
| 额定电压 (UL) DC: | 1000 V |
| for wires UL: | Cu 90°C |
| SCCR protected max.: | 33 kA |
| with IZLT fuse 10x38 30 A / 1000 V DC | |
| max. let-through current Id (UL): | 8.65 kA |
| max. let-trough energy (UL): | 16.9 kA²s |
| 机械数值 | |
| 宽 x 高 x 厚: | 36 x 81 x 58 |
| 重量: | 10.3 kg/100 |
| 极数: | 2 极 |
| Mounting: | for mounting rail |
| 防护等级: | IP20 |
| 正面防护等级: | IP20 |
| 连接端 | |
| cage clamp connection | |
| screw drive: | PZ2 |
| wire stripping: | 11 mm |
| min. cross-section: | 0.75 mm² |
| 最大横截面积: | 25 mm² |
| Md min.: | 2.0 Nm |
| Md max.: | 2.5 Nm |
| Not suitable for aluminium cables ! | |
| 最小横截面积: | AWG 18 |
| max. cross-section UL: | AWG 4 |
| torque (UL): | 18 - 22 lb-in |
| for wires UL: | Cu 90°C |
| 原材料性能 | |
| halogen-free: | Yes |
| Not suitable for aluminium cables ! | |
| 所使用熔断器的允许损耗功率: | 4 W |
| for UL feeder circuits >250V | |
