订货号 33244 000

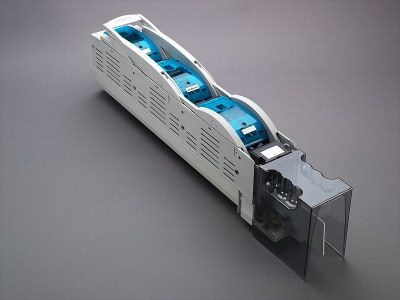

条形熔断器式隔离开关 400 A
V 形连接端子，3 极分断
尺寸 2
不再供货
产品优势
Self-closing inspection holes are available in the cover.
Strips are equipped with arc chambers.
Cover can be locked when closed.
| 产品组 | 12 |
分组 |
54 |
| 包装件数 | 1 |
| EAN | 4021267332440 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001046 |
| ETIM 5.0 | EC001046 |
标准
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
认证许可
IEC (CB) , CCC
型号: SLS2
CCC认证: 2004010302117259
| 所使用熔断器的允许损耗功率: | 34 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| 尺码: | NH 2 |
| Details IEC | |
| 标准 | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| 端部供电（IEC）: | 400 A |
| 额定电压（IEC）AC: | 690 V |
| rated isolation voltage Ui AC: | 1000 V |
| 额定冲击耐受电压 Uimp: | 8 kV |
| 使用等级 AC (IEC 60947-3): | AC-23B (500V) AC-22B (690V) AC-21B (690V) |
| 带熔断器时的条件额定短路电流: | 100 kA / 690 V |
| 带熔断器测定的工作等级: | gG |
功率输出:
The power dissipation at a typical load of 80 % results to 42.9 W.
(The power dissipation at full load would be 67.0 W.)
| Supplementary data IEC | |
|
下述参数已经在特定条件下通过测试得到验证。开始设计之前，请联系维纳尔咨询这些条件。 |
| 符合 IEC 60947-3 的熔断器组合电器，只有在作为没有分断能力的熔断器式隔离器时、在不超过额定绝缘电压使用并进行相应的标识时，才允许超过额定工作电压运行。 |
| Degree of protection IP30 at front, degree of protection near terminal depends on installation |
| 机械数值 | |
| 宽 x 高 x 厚: | 100 x 764 x 195 |
| 重量: | 650.0 kg/100 |
Type of fastening:
can be screwed onto drilled busbar, diameter 13mm, undrilled with terminal clamp
connection:
V-direct connection: s(r) 50-185mm², s(s) 70-240mm², sol(s) 95-300mm²; SW6, 22 - 25Nm torque
| 连接端 | |
|
V-terminal : |
|
| 符合 IEC 60947-3 的熔断器组合电器，只有在作为没有分断能力的熔断器式隔离器时、在不超过额定绝缘电压使用并进行相应的标识时，才允许超过额定工作电压运行。 | |
| 所使用熔断器的允许损耗功率: | 34 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
