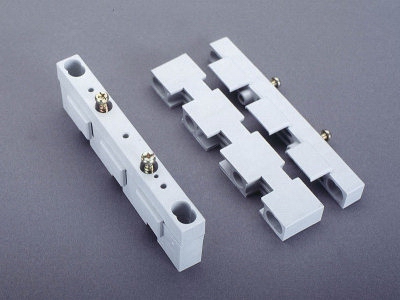

The picture may show a similar product.
订货号 01774 000
母线支架
3 线，带内置螺钉孔
适用母线 12 x 5, 10
不再供货
产品优势
With internal screw holes
can also be used as centre support.
| 产品组 | 06 |
分组 |
15 |
| 包装件数 | 10 |
| EAN | 4021267017743 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
标准
IEC 61439-1:2020
UL 508
认证许可
CSA , UL
型号: 497
UL 文件: E123577, UL 类别 (适用美国) : NMTR2 https://www.ul.com
UL 文件: E123577, UL 类别 (适用加拿大) : NMTR8 https://www.ul.com
CSA 文件: 110285, CSA 等级: 3211-37 https://directories.csa-international.org
CCC 认证: 无需强制认证
| Details IEC | |
| 标准 | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| 额定电压（IEC）AC: | 690 V |
| rated isolation voltage Ui AC: | 690 V |
| 额定冲击耐受电压 Uimp: | 6 kV |
功率输出:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Short-circuit withstand rating: surge current strength > 34kA at busbar support separation of 400mm surge current strength > 45kA at busbar support separation of 200mm further values in the short-circuit withstand rating diagram |
| Details UL | |
| 标准 | |
| UL 508 |
| Electrical data UL | |
| 额定电压 (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| 机械数值 | |
| 宽 x 高 x 厚: | 15 x 140 x 41 |
| 重量: | 9.3 kg/100 |
| 极数: | 3 极 |
| 适用母线: | 12 x 5, 10 |
Tightening torque of the screws: 4 Nm
