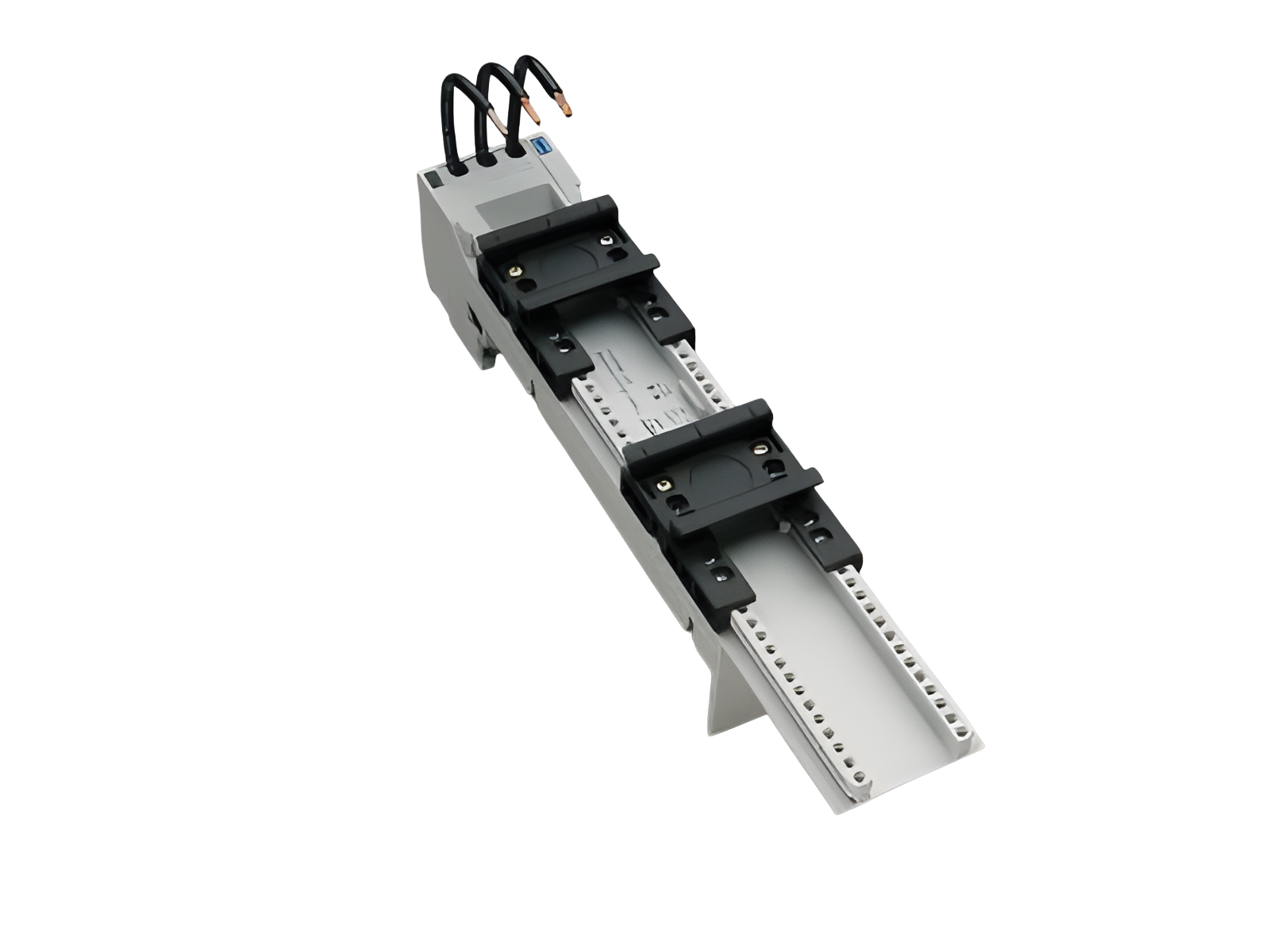

The picture may show a similar product.
订货号 32433 000
EQUES®60Classic
母线转接器 25 A
3 极

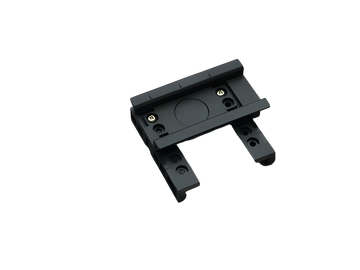

2 个可调节支承导轨
45 x 260, 带导线 AWG 12 (4 mm²)
适用母线 12, 15, 20, 25, 30 x 5, 10 和异型母线
系统
60Classic
产品优势
导线末端超声铸压。
卡接机构用于在母线上滑动
| 产品组 | 05 |
分组 |
21 |
| 包装件数 | 4 |
| EAN | 4021267324339 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
标准
IEC 61439-1:2020
UL 508
认证许可
CSA , UL
for UL feeder circuits >250V
型号: EEC6025-L
UL 文件: E123577, UL 类别 (适用美国) : NMTR https://www.ul.com
UL 文件: E123577, UL 类别 (适用加拿大) : NMTR7 https://www.ul.com
CSA 文件: 110285, CSA 等级: 3211-37 https://directories.csa-international.org
CCC 认证: 无需强制认证
| Details IEC | |
| 标准 | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| 端部供电（IEC）: | 25 A |
| 额定电压（IEC）AC: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| 额定冲击耐受电压 Uimp: | 6 kV |
|
Motorschutzschalter bis 25 A: |
功率输出:
The power dissipation at a typical load of 80 % results to 1.2 W.
(The power dissipation at full load would be 1.9 W.)
| Details UL | |
| 标准 | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| 额定电流 (UL): | 25 A |
| 额定电压 (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 5 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 65 kA |
| 短路电流额定值: |
50 kA with any NKJH Comb. Motor Controller 32 A / 480 V AC
65 kA with any NKJH Comb. Motor Controller 16 A / 480 V AC 30 kA with any NKJH Comb. Motor Controller 12,5 A / 600 V AC 65 kA with any NKJH Comb. Motor Controller 25 A / 480 V AC |
| 机械数值 | |
| 宽 x 高 x 厚: | 45 x 260 x 63 |
| 重量: | 35.7 kg/100 |
| 极数: | 3 极 |
| 适用母线: | 12, 15, 20, 25, 30 x 5, 10 和异型母线 |
| 连接端 | |
| with leads | |
| AWG12 (4 mm²) | |
| wire stripping: | 9 mm |
| There must be a clearance of at least 12 mm above the article to remove it from the busbar system. | |
|
与市场常见的开关设备一起，形成紧凑的电机保护回路, 能实现与母线系统安全的机械和电连接 |
|
|
电机保护开关承载转接器的短路保护 |
|
| for UL feeder circuits >250V |
