订货号 31158000

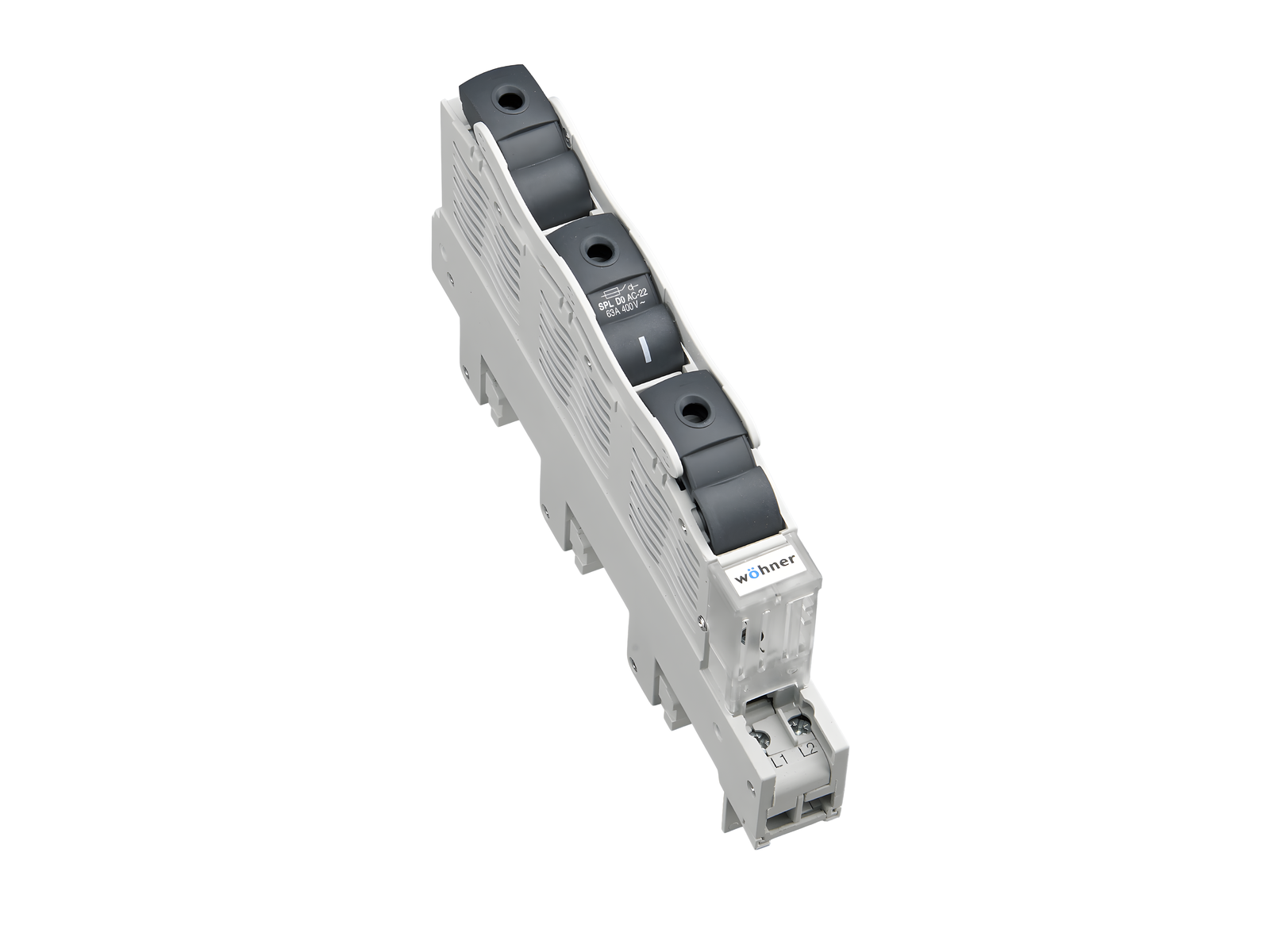

SECUR®60Classic PowerLiner
D0 隔离开关熔断器组（母线式安装）
适用 D01 和 D02 熔断体
E18 / 63 A / 3极
下端接电缆
适用母线 12, 15, 20, 25, 30 x 5, 10 和异型母线
3-pole / 1-pole switching
系统
60Classic
| 产品组 | 01 |
分组 |
42 |
| 包装件数 | 1 |
| EAN | 4021267311582 |
| ECLASS 6.1 | 27142110 |
| ECLASS 7.1 | 27142110 |
| ETIM 4.0 | EC000277 |
| ETIM 5.0 | EC000277 |
标准
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
认证许可
VDE , CCC
型号: SPL-D0
CCC认证: 2018010302128773
| for fuse links size: | D0 |
| fuse links acc. to standard: | IEC / HD 60269-3 |
| 所使用熔断器的允许损耗功率: | 5.5 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Details IEC | |
| 标准 | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| 额定电流（IEC）: | 63 A |
| 额定电压（IEC）AC: | 400 V |
| 额定电压 （IEC） DC: | 110 V |
| rated isolation voltage Ui AC: | 500 V |
| 额定绝缘电压 Ui DC: | 250 V |
| 额定冲击耐受电压 Uimp: | 6 kV |
| 使用等级 AC (IEC 60947-3): | AC-23A (400 V) |
| 使用等级 DC (IEC 60947-3) : | DC-21B (48 V) 1极 DC-21B (110V) 2 极 |
| 带熔断器时的条件额定短路电流: | 50 kA / 400 V |
| 带熔断器测定的工作等级: | gG |
功率输出:
The power dissipation at a typical load of 80 % results to 6.7 W.
(The power dissipation at full load would be 10.5 W.)
| Supplementary data IEC | |
|
下述参数已经在特定条件下通过测试得到验证。开始设计之前，请联系维纳尔咨询这些条件。 |
| 符合 IEC 60947-3 的熔断器组合电器，只有在作为没有分断能力的熔断器式隔离器时、在不超过额定绝缘电压使用并进行相应的标识时，才允许超过额定工作电压运行。 |
| for fuse links and gauge rings as per DIN VDE 0636-3 IEC / HD 60269-3 utilisation category as per VDE 0638: AC22 |
|
The function of isolation between incoming and outgoing contacts is provided by the opening of the switching mechanism as required in the standard. |
| 机械数值 | |
| 宽 x 高 x 厚: | 27 x 220 x 100 |
| 重量: | 75.9 kg/100 |
| 极数: | 3线 |
| 适用母线: | 12, 15, 20, 25, 30 x 5, 10 和异型母线 |
| 正面防护等级: | IP20 |
Type of fastening: patented click mechanism
| 连接端 | |
| cage clamp connection | |
| screw drive: | PZ2 |
| wire stripping: | 12 mm |
| min. cross-section: | 1.5 mm² |
| 最大横截面积: | 16 mm² |
| Md min.: | 2.0 Nm |
| Md max.: | 2.5 Nm |
| Not suitable for aluminium cables ! | |
|
用于导线连接的框端子: |
|
| Not suitable for aluminium cables ! | |
| 符合 IEC 60947-3 的熔断器组合电器，只有在作为没有分断能力的熔断器式隔离器时、在不超过额定绝缘电压使用并进行相应的标识时，才允许超过额定工作电压运行。 | |
|
说明 |
SECUR®PowerLiner can be fitted with D0 adapter sleeves. With reducer insert (Part no. 31902) and adapter sleeves, also suitable for D01 fuse links. The use of the side module part no. 31901 is recommended for continuous loads of 35 A or greater. |
| 所使用熔断器的允许损耗功率: | 5.5 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
