产品选择

适用 UL 供电电路 >250V

条形连接器 (01439)

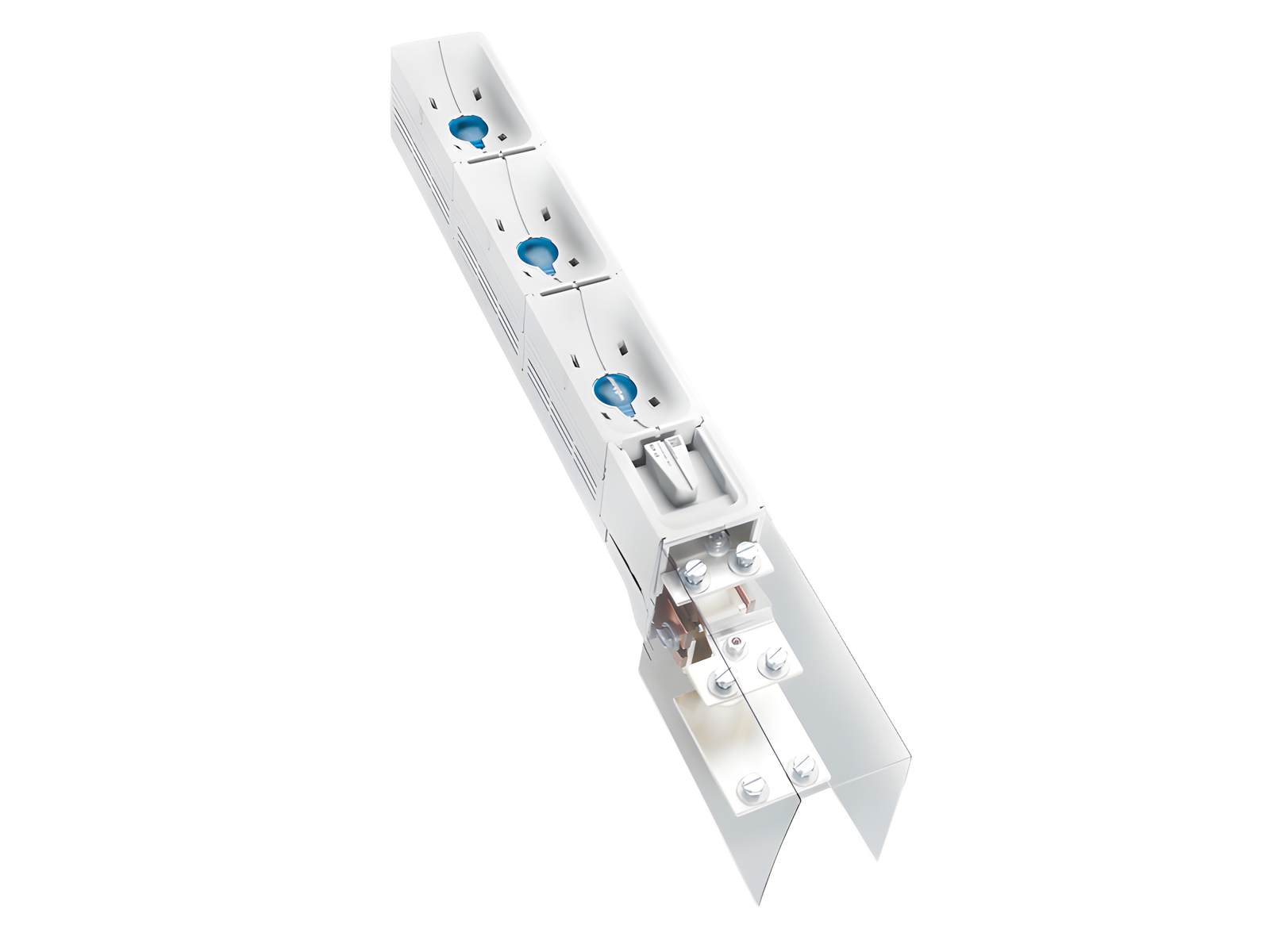

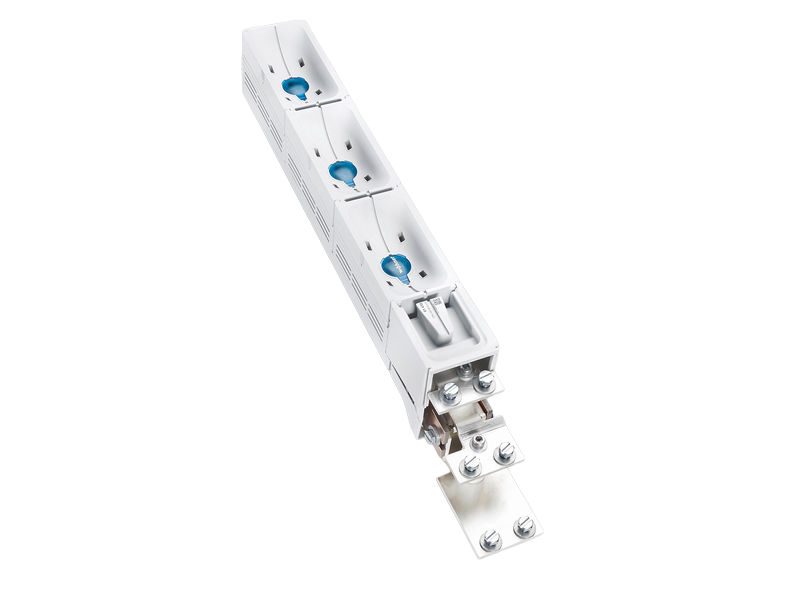

The picture may show a similar product.

说明

订货号 01439000A

CRITO®185Power

条形连接器

3 极

适用 3 个线鼻子 300 mm² (偏移布局), 适用 4 个线鼻子240 mm² 或多层软铜排 80 x 10

上端或下端接电缆

适用母线 30, 40, 60, 80, 100, 120 x 10

系统

185Power

产品组 07

分组

 57
包装件数 1
EAN 4021267014391
ECLASS 6.1 27141146
ECLASS 7.1 27141146
ETIM 4.0 EC000001
ETIM 5.0 EC000001

认证

标准

IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003

型号: CRL185-1000

CCC 认证: 无需强制认证

产品信息

Details IEC
标准
IEC 61439-1:2020
IEC 60999-1:1999
IEC 60999-2:2003
Electrical data IEC
额定电流（IEC）: 1400 A
额定电压（IEC）AC: 690 V
额定冲击耐受电流 Ipk : 87.4 kA
rated short-time withstand current Icw (1.0 s) max.: 40.6 kA

功率输出:

The power dissipation at a typical load of 80 % results to 352.0 W.

(The power dissipation at full load would be 550.0 W.)

Supplementary data IEC

下述参数已经在特定条件下通过测试得到验证。开始设计之前，请联系维纳尔咨询这些条件。
最大电压 IEC AC: 1000 V
最大电压 IEC DC: 1500 V
最大电流负载能力 (IEC): 1,400 A

4个 240 mm² 电缆的电流负载能力为1400A (直接用条形连接器的螺钉安装在母线系统上)

使用挂钩 33 738 或 33 740时,电流负荷能力将降到1200A

可实现最多4个线鼻子连接达到300 mm² 的DIN 46235标准
机械数值
宽 x 高 x 厚: 100 x 960 x 150
重量: 1050.0 kg/100
极数: 3线
适用母线: 30, 40, 60, 80, 100, 120 x 10
连接端
screw connection
M12
