适用 UL 供电电路 >250V

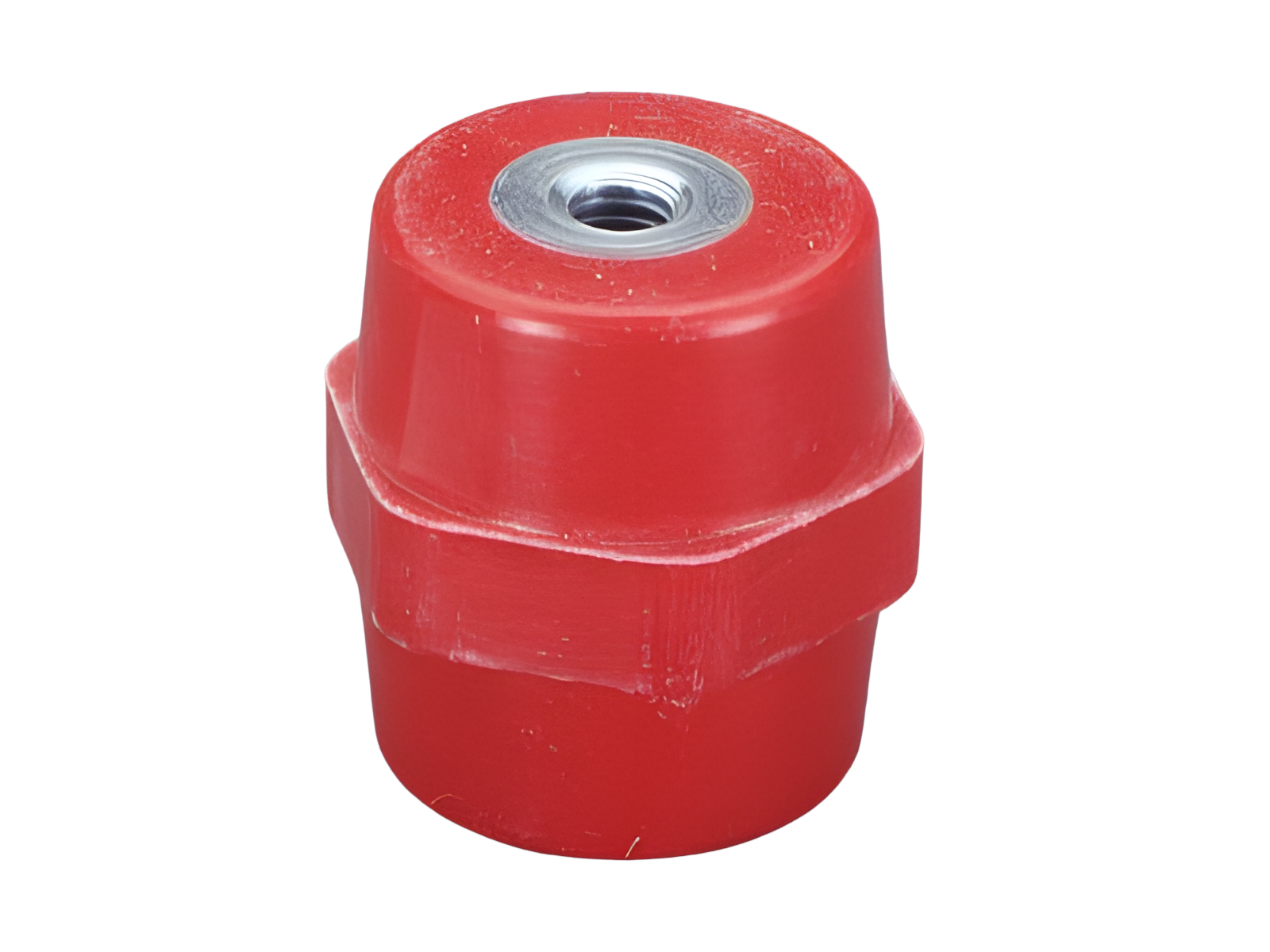

The picture may show a similar product.
订货号 05782000
绝缘子
带双侧内螺纹，扳手规格 32
M8 x 35
| 产品组 | 06 |
分组 |
89 |
| 包装件数 | 20 |
| EAN | 4021267057824 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
标准
IEC 61439-1:2020
CCC 认证: 无需强制认证
| Details IEC | |
| 标准 | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| 额定电压（IEC）AC: | 1500 V |
| 额定电压 （IEC） DC: | 1500 V |
功率输出:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| 机械数值 | |
| 宽 x 高 x 厚: | 32 x 32 x 35 |
| 重量: | 7.2 kg/100 |
| 连接端 | |
| female thread | |
| M8 | |
|
说明 |
The installation of the insulator is required on a flat surface on both sides. The fixing screw must be fixed on both surfaces. |
| 短路稳定性: | 无说明 |
