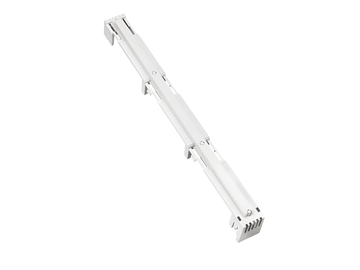

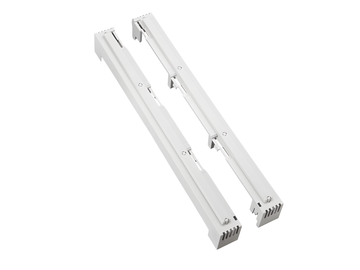

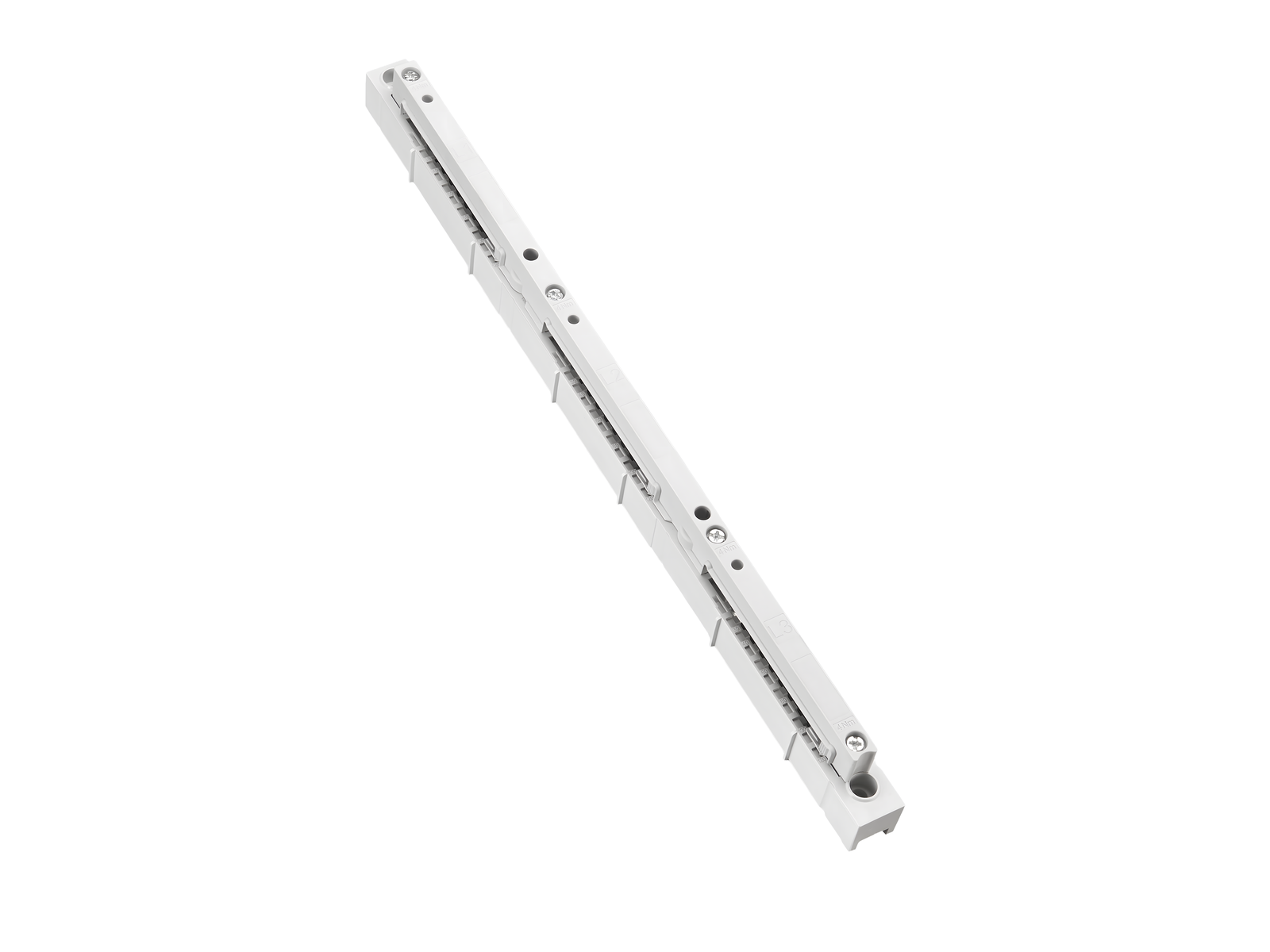

The picture may show a similar product.
订货号 01430000A
通用母线支架
适用母线 30, 40, 60, 80, 100, 120 x 10
系统
185Power
| 产品组 | 06 |
分组 |
24 |
| 包装件数 | 4 |
| EAN | 4021267014308 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
标准
IEC 61439-1:2020
UL 508
认证许可
UL
for UL feeder circuits >250V
型号: S185-A120
UL 文件: E123577, UL 类别 (适用美国) : NMTR https://www.ul.com
UL 文件: E123577, UL 类别 (适用加拿大) : NMTR7 https://www.ul.com
CCC 认证: 无需强制认证
| Details IEC | |
| 标准 | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| 额定电压（IEC）AC: | 800 V |
| rated frequency (IEC): | 50 / 60 Hz |
| rated isolation voltage Ui AC: | 1000 V |
| 额定冲击耐受电压 Uimp: | 8 kV |
| 额定冲击耐受电流 Ipk : | 106 kA |
功率输出:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| Supplementary data IEC | |
|
下述参数已经在特定条件下通过测试得到验证。开始设计之前，请联系维纳尔咨询这些条件。 |
| 最大电压 IEC DC: | 1500 V |
| short-circuit capacity IEC / EN : Ipk max. = 106 kA (busbars 120x10, 2 busbar supports in 550 mm distance) go to calculation for 3-pole system (IEC) |
| Details UL | |
| 标准 | |
| UL 508 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| 额定电压 (UL) AC: | 1000 V |
| rated frequency (UL): | 50 / 60 Hz |
| 额定电压 (UL) DC: | 1000 V |
| SCCR unprotected max.: | 50 kA |
| 3 cycles (without OPD) @ 1000 V AC |
| 机械数值 | |
| 宽 x 高 x 厚: | 30 x 583 x 59 |
| 重量: | 50.0 kg/100 |
| 极数: | 3线 |
| 适用母线: | 30, 40, 60, 80, 100, 120 x 10 |
| 产品的绝缘性能与安装条件有关。 | |
|
说明 |
使用M6或M8的螺钉, 扭力矩 4Nm 在3mm安装板上固定 |
| for UL feeder circuits >250V | |
