Арт.: 33554000

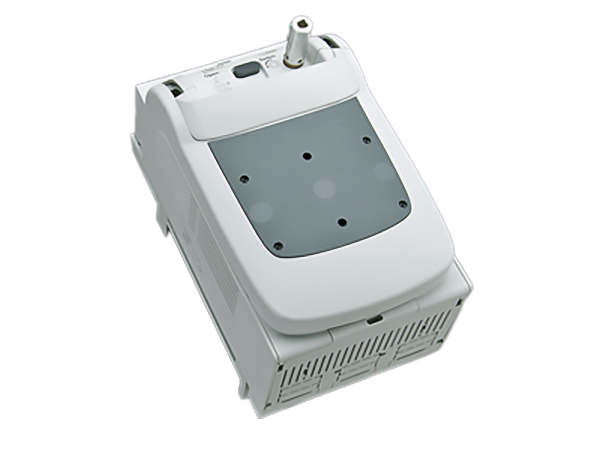

QUADRON®60Classic Speed
выключатель-разъединитель нагрузки 3-полюсный
Винт М10, подсоединение сверху, для поворотной ручки двери
320 A
double-breaking
operator independent switching (snap-action mechanism)
для шин 12, 15, 20, 25, 30 x 5, 10 и профильные шины
Система
60Classic
Преимущества продукта
With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
Lockable in neutral position with up to 3 padlocks
FLAG indicator shows the switch setting
double-breaking main contacts
Can be used as a mains disconnector as per IEC / EN 60204-1 (main switch)
Can also be used as an Emergency Off switch in combination with the red/yellow door coupling twist handle
Main switch only in combination with utilisation category AC-23A/B
AC-23B (400V/280A), AC-23B (690V/250A)
CrossLink® adapter technology
Simple and safe clicking into place and making contact
Busbar supports can be mounted above each other for flat busbars
Switches can be installed 90° left/right horizontal, always with the same switch handle position
| Группа продуктов | 14 |
| Подгруппа | 23 |
| Кол-во | 1 |
| EAN | 4021267335540 |
| ECLASS 6.1 | 27371403 |
| ECLASS 7.1 | 27371403 |
| ETIM 4.0 | EC000216 |
| ETIM 5.0 | EC000216 |
Стандарты
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
номер типа: QCS-320
| Подробности IEC | |
| Стандарты | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Электрические данные IEC | |
| Номинальный ток (IEC): | 320 A |
| номинальное напряжение (IEC) AC: | 690 В |
| номинальное напряжение изоляции U i AC: | 800 В |
| номинальное импульсное напряжение U imp : | 8 kV |
| Катагория применения AC: | AC-23B (690V/250A) AC-23A (500V/250A) AC-23B (400V/280A) AC-22A (690V/250A) AC-22B (690V/300A) AC-22B (500V/320A) |
| одобрено с плавкими вставками рабочего класса: | gG |
| rated short-circuit making capacity 12kA (690V AC) cond. rated short-circuit current 50kA (fuses gL/gG size 1 250A-690V AC) | |
| Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals. | |
| When several devices are used side-by-side in continuous operation, the rated load factor specified in VDE 0660 Part 500 / EN 60 439-1, Table 1, must be observed. | |
| System component: degree of protection IP20 at front as per DIN EN 60529, degree of protection near terminal depends on installation; shock protection as per DIN EN 50274 adapter module: front side degree of protection IP20 as per DIN EN 60529 (finger-safe) |
| Механические данные | |
| Ш x В x Г: | 184 x 314 x 192 |
| Вес: | 565,0 kg/100 |
| Полюсность: | 3-пол. |
| для шин: | 12, 15, 20, 25, 30 x 5, 10 и профильные шины |
Busbar connector: externally tensioned contacting, convenient click mechanism, simple conversion of the combination bases from 5 to 10mm-thick busbars When installing QCS, a busbar support is to be applied left and right, see assembly manual.
| Особенности клеммной техники | |
| screw connection | |
| M10 | |
| screw drive: | SW16 |
| Md min.: | 30,0 Nm |
| Md max.: | 35,0 Nm |
