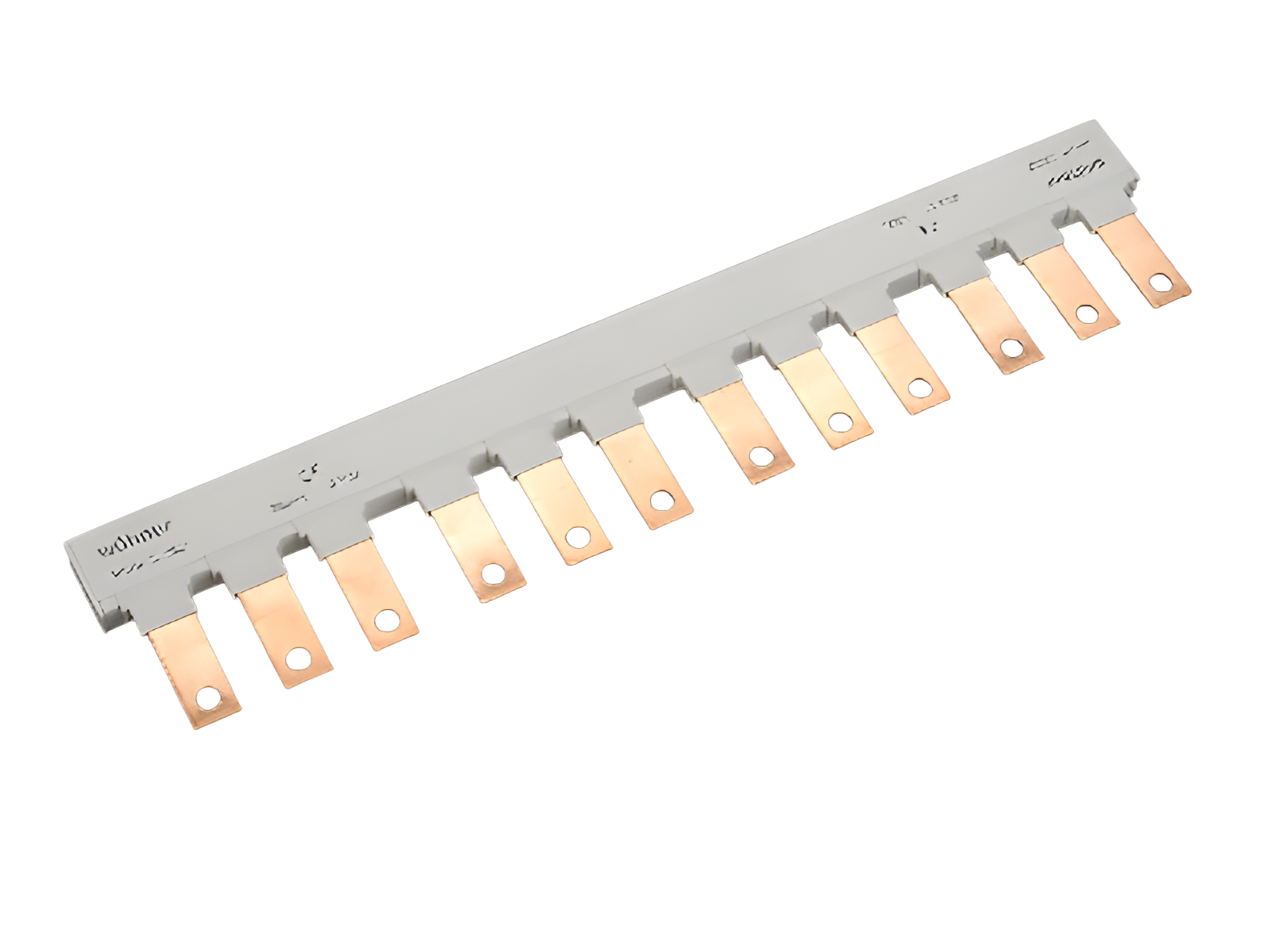

На фотографии может быть изображена аналогичная статья.
Арт.: 33392000
Гребенчатая шина, 3-полюсная, для четырех разъединителей-держателей NH предохранителей
35 mm²
для 33200
Преимущества продукта
Shock protection: as per DIN EN 50274/BGV A3
Prefabricated for four NH- LTS closed version with end caps
| Группа продуктов | 09 |
| Подгруппа | 51 |
| Кол-во | 4 |
| EAN | 4021267333928 |
| страница каталога | 2020 : 6.14 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC000215 |
| ETIM 5.0 | EC000215 |
Стандарты
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Сертификация
EAC
Тип EAC: AC-A
| Подробности IEC | |
| Стандарты | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Электрические данные
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 8,9 Вт.
(The power dissipation at full load would be 13,9 Вт.)
| rated insulation voltage: 800V at pollution degree 2; 690V at pollution degree 3 For rated operating current, see download diagram |
|
| rated surge withstand capacity: 25 kA /400V; rated short-time withstand current resistance: 12.5kA-100ms/400V |
|
| Degree of protection: IP 20 at front in combination NH-LTS, comb-type busbar and connecting terminal possible. Degree of protection near terminal depends on installation. |
| Механические данные | |
| Ш x В x Г: | 424 x 15 x 32 |
| Вес: | 62,3 kg/100 |
| Сечение: | 35 мм² |
Справочная информация
Recommended installation situation:
Feed with the comb-type busbar at NH-LTS from below.
Reductions are to be taken into consideration for different installation situations and conditions of use.
