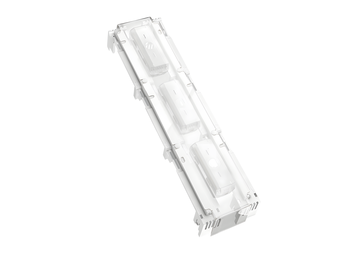

A imagem pode mostrar um produto similar.
Código da peça: 01480000A
conector longitudinal de barras
40 mm
para barramentos 30, 40, 80, 100 x 10
Sistema
185Power
Grupo de produto | 07 |
Subgroup | 33 |
Unidade por pacote | 3 |
EAN | 4021267014803 |
ECLASS 6.1 | 27400606 |
ECLASS 7.1 | 27400606 |
ETIM 4.0 | EC000713 |
ETIM 5.0 | EC000713 |
Standards
IEC 61439-1:2020
UL 508
Approvals
UL
for UL feeder circuits >250V
Número de tipo: CR185-C40
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
Aprovação CCC: no certification required
Dados IEC | |
Standards | |
IEC 61439-1:2020 |
Dados elétricos IEC | |
Tensão de medição (IEC) AC: | 690 V |
Dados adicionais IEC | |
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
tensão máxima IEC AC: | 1000 V |
tensão máxima IEC DC: | 1500 V |
current capacity (IEC) max.: | 750 A |
the busbar connector was tested in an arrangment where the busbar supports at the connection of the 2 systems had a spacing of 200 mm test conditions: 100x10 - 100x10 (1x 01480 + 1x 01481) peak withstand current Ipk: 106 kA Icw (1,0 s): 50 kA test conditions: 80x10 - 80x10 (2x 01480) peak withstand current Ipk: 106 kA Icw (1,0 s): 50 kA test conditions: 40x10 - 40x10 (1x 01480) peak withstand current Ipk: 81 kA Icw (1,0 s): 34 kA test conditions: 30x10 - 30x10 (1x 01480) peak withstand current Ipk: 81 kA Icw (1,0 s): 34 kA |
Dados UL | |
Standards | |
UL 508 |
for UL feeder circuits >250V |
Dados electricos UL | |
corrente nominal (UL): | 700 A |
rated voltage (UL) AC: | 1000 V |
rated frequency (UL): | 50 / 60 Hz |
tensão nominal (UL) DC: | 1000 V |
SCCR unprotected max.: | 42 kA |
3 cycles (without OPD) @ 1000 V AC |
Dados mecânicos | |
L x A x P: | 47 x 40 x 49 |
Peso: | 48,0 kg/100 |
para barramentos: | 30, 40, 80, 100 x 10 |
permitted busbar displacement: | 1 |
permitted spacing between systems: | 11 - 14 mm |
The insulation performance of the article depends on the installation conditions. | |
Notas |
one terminal is required to connect busbars 30x10 |
for UL feeder circuits >250V |
