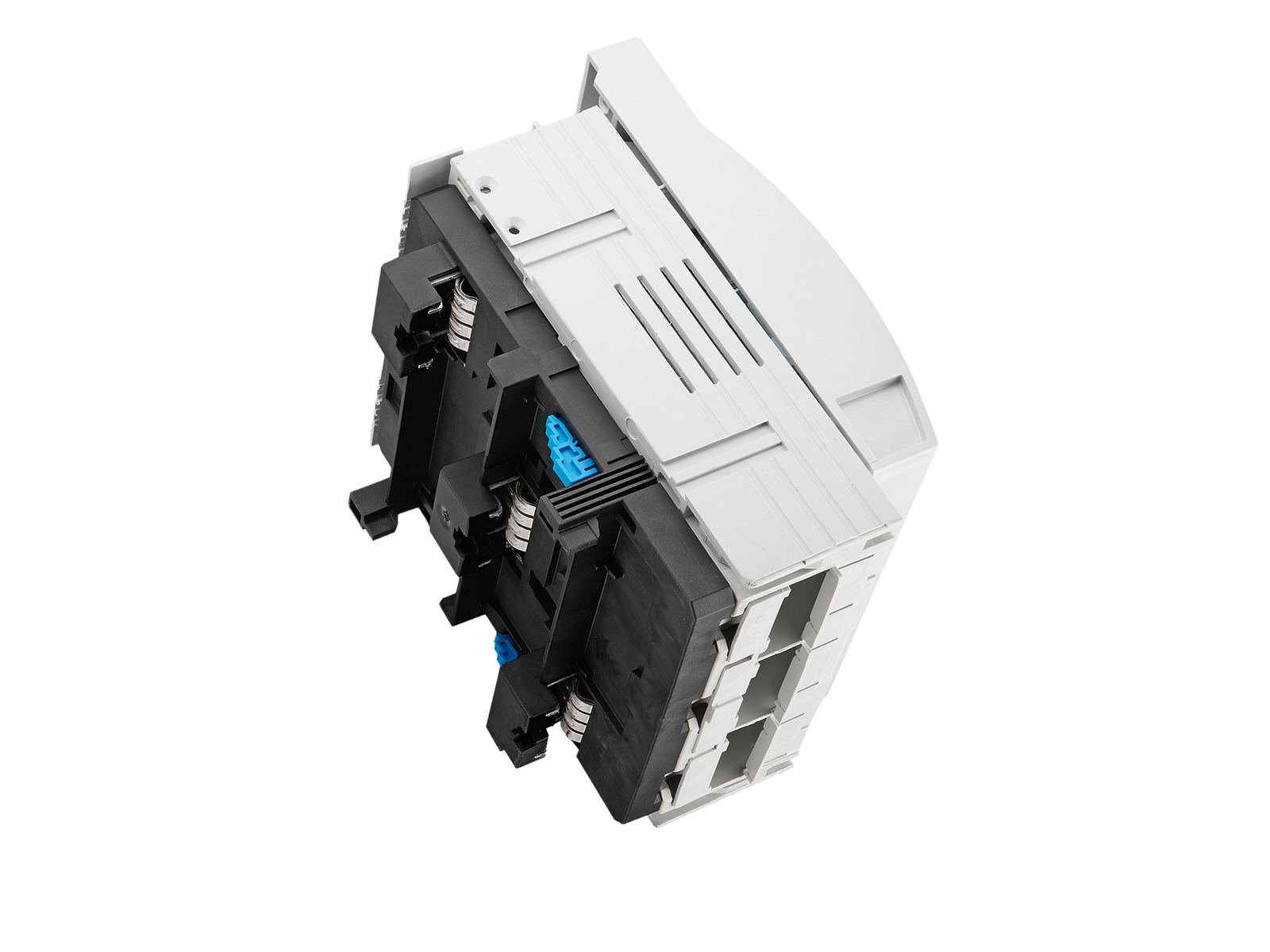

A imagem pode mostrar um produto similar.
Código da peça: 33194000
QUADRON®60Classic
interruptor-seccionador-fusível NH tamanho 1, 250 A, montagem em barramento, conexão superior/inferior
parafuso M10
adequado para sistema de barramento 5 polos
para barramentos 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção
no longer available
Sistema
60Classic
Vantagens do produto
Self-closing inspection holes are available in the cover.
| Grupo de produto | 09 |
| Subgroup | 27 |
| Unidade por pacote | 1 |
| EAN | 4021267331948 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
IEC (CB)
| for fuse links size: | NH 1 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 23 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Dados IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Dados elétricos IEC | |
| Corrente de medição (IEC): | 250 A |
| Tensão de medição (IEC) AC: | 690 V |
| Tensão de medição (IEC) DC: | 440 V |
| Tensão nominal de isolamento: | 800 V |
| rated isolation voltage Ui DC: | 500 V |
| Tensão suportável nominal de impulso Uimp: | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-22B (400V) AC-23B (400V/160A) AC-21B (690V) AC-20B (1000V) at pollution degree 2 visible information required if used at more than 690V AC: do not switch under load |
| Utilisation category DC (IEC 60947-3) : | DC specifications: 2 current paths (L1,L3) in series DC-20B (440 V) DC-20B (1000V) at pollution degree 2 visible information required if used at more than 440V DC: do not switch under load |
| cond. short-circuit current with fuses (AC): | 80 kA / 690 V |
| approved wth fuse links of operation class: | gG |
Dissipação de energia do artigo:
A dissipação de energia em uma carga de 80% resulta em 16,6 W.
(A dissipação de energia em sua carga máxima seria 26,0 W.)
| Dados adicionais IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| tensão máxima IEC DC: | 800 V |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| Entsprechend den angegeben AC- und DC- Schalteigenschaften und unter Berücksichtigung der Überlastbedingungen, sind gewisse Abstände zu geerdeten Metallteilen einzuhalten. Nähere Informationen auf Anfrage. Bei Verwendung als Trennschalter ist die Einhaltung der Abstände nicht erforderlich. |
|
| Degree of protection IP30 at front, degree of protection near terminal depends on installation |
| Dados mecânicos | |
| L x A x P: | 184 x 220 x 129 |
| Peso: | 357,0 kg/100 |
| Polaridade: | 3 polos |
| para barramentos: | 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção |
| front degree of protection: | IP30 |
| pontos terminais | |
| screw connection | |
| M10 | |
| screw drive: | SW16 |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| permitted power dissipation of the fuse-link: | 23 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
