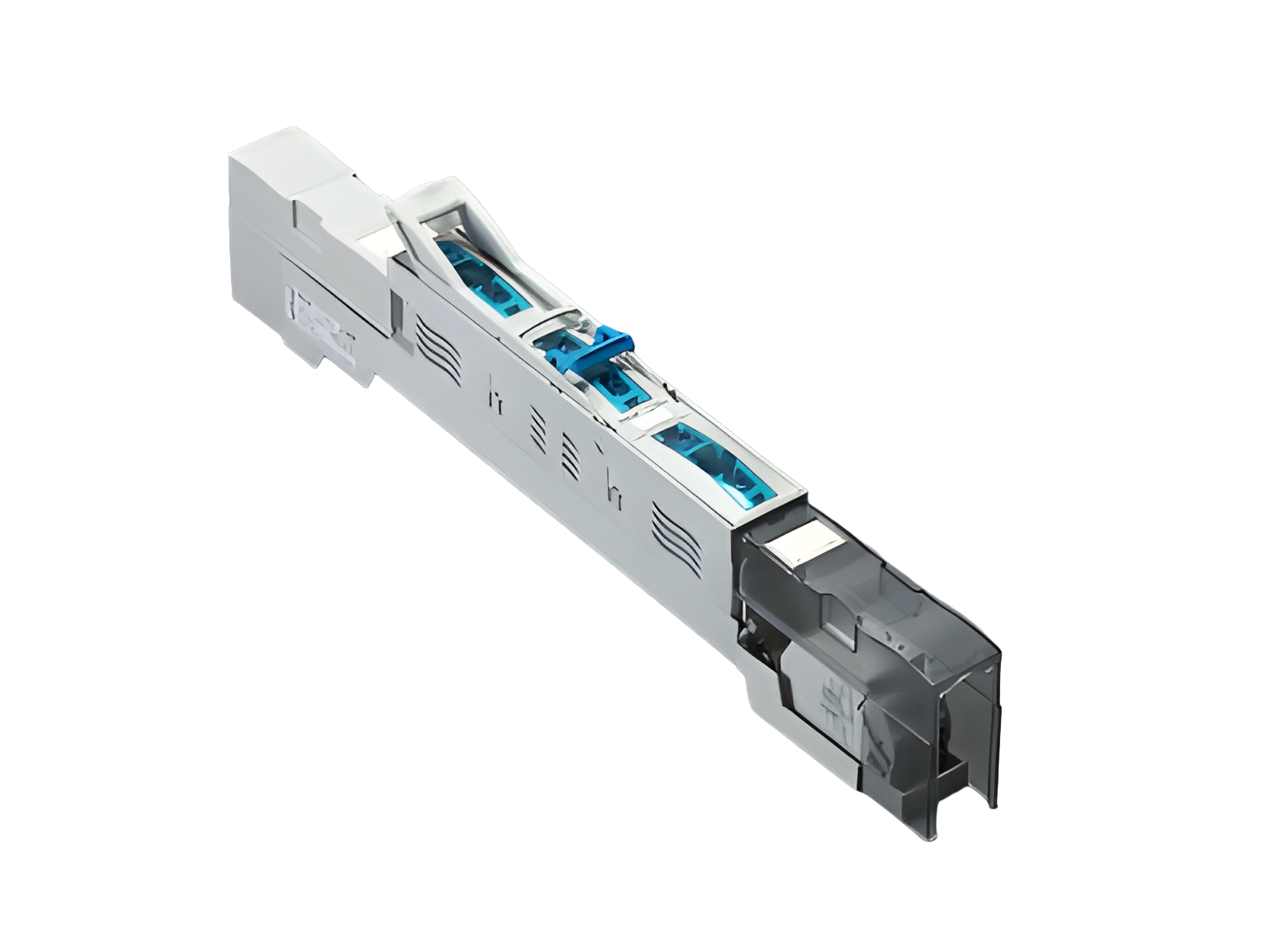

A imagem pode mostrar um produto similar.
Código da peça: 33285000
chave seccionadora de fusível vertical 160 A
parafuso M8 / braçadeira 70 mm2, com monitoramento eletrônico de fusível
tamanho 00
para barramentos 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção
Sistema
60Classic
Vantagens do produto
Self-closing inspection holes are available in the cover.
Electronic fuse monitoring:
operating current principle, optionally with latching properties (latches without bridge X1-X2)
device display:
green LED = intact fuses
red LED = fuse tripped, cover position up
| Grupo de produto | 12 |
| Subgroup | 50 |
| Unidade por pacote | 1 |
| EAN | 4021267332853 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001046 |
| ETIM 5.0 | EC001046 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approvals
IEC (CB) , CCC
Número de tipo: SLS-00
CCC certificate: 2004010302117261
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Dados IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Dados elétricos IEC | |
| Corrente de medição (IEC): | 160 A |
| Tensão de medição (IEC) AC: | 400 V |
| Tensão nominal de isolamento: | 400 V |
| Tensão suportável nominal de impulso Uimp: | 4 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23B (400V) |
| cond. short-circuit current with fuses (AC): | 50 kA / 690 V |
| approved wth fuse links of operation class: | gG |
Dissipação de energia do artigo:
A dissipação de energia em uma carga de 80% resulta em 12,8 W.
(A dissipação de energia em sua carga máxima seria 20,0 W.)
| Dados adicionais IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| Electronic fuse monitoring: nominal voltage: 3AC 400V, nominal frequency: 50...40Hz, switch contact: 2 changeover switches, max. AC 250V, AC15 closer 3A, opener 1A, rated surge voltage: 4kV, pollution degree: 2 Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals. |
|
| Degree of protection IP30 at front, degree of protection near terminal depends on installation |
| Dados mecânicos | |
| L x A x P: | 50 x 610 x 136 |
| Peso: | 146,0 kg/100 |
| para barramentos: | 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção |
Type of fastening: patented click mechanism,
connection 70mm², screw M8, 12 - 14Nm torque,
connection clamp 1.5-70mm², 3Nm torque,
wedge clamp terminal 16-70mm², 3Nm torque
Conductor connection, fuse monitoring:
2 x 2.5mm² solid DIN 46 288 or
2 x 1.5mm² braid with ferrule
DIN 46 228-1/-2/-3
| pontos terminais | |
|
screw M8 : |
|
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
