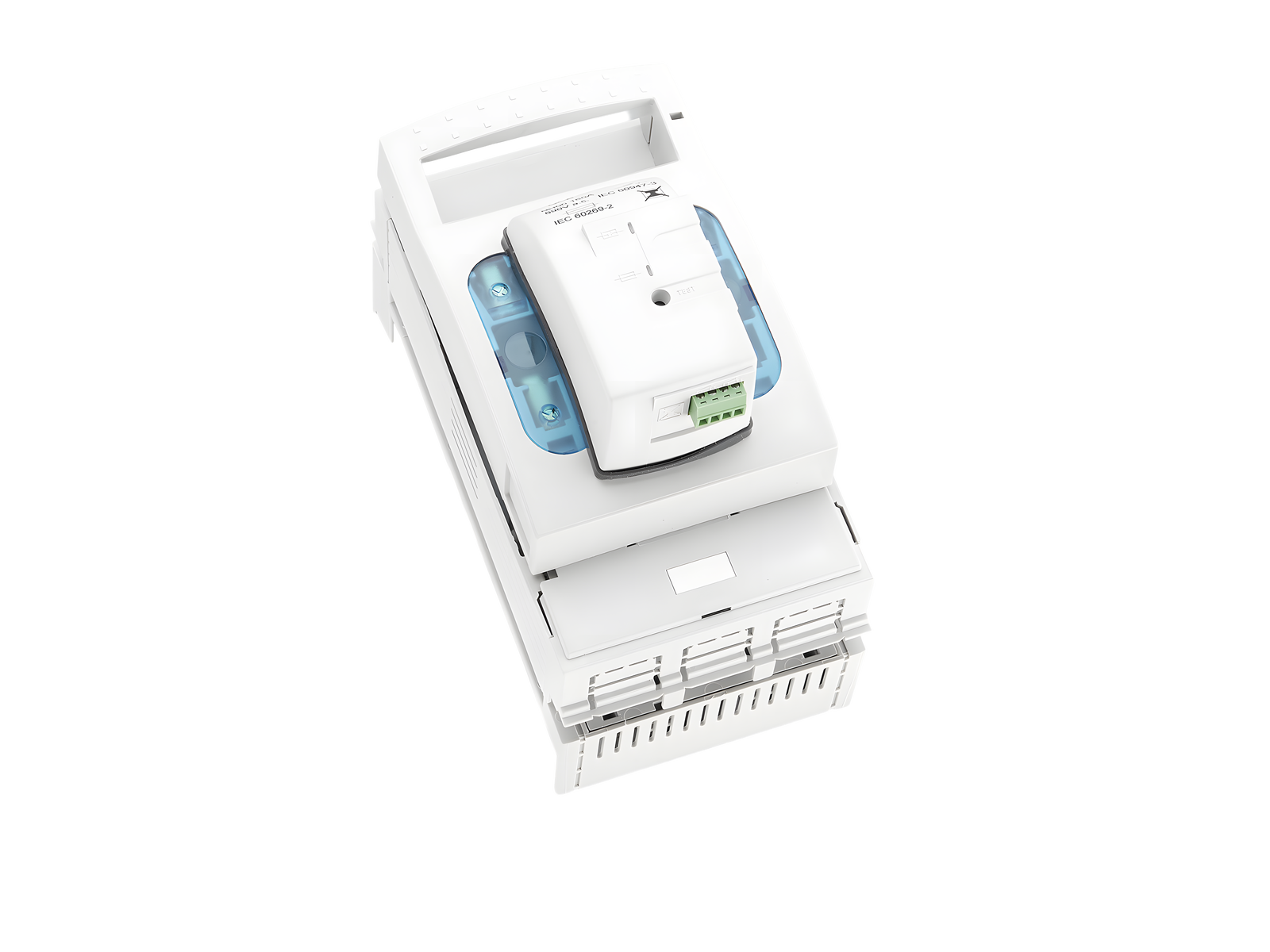

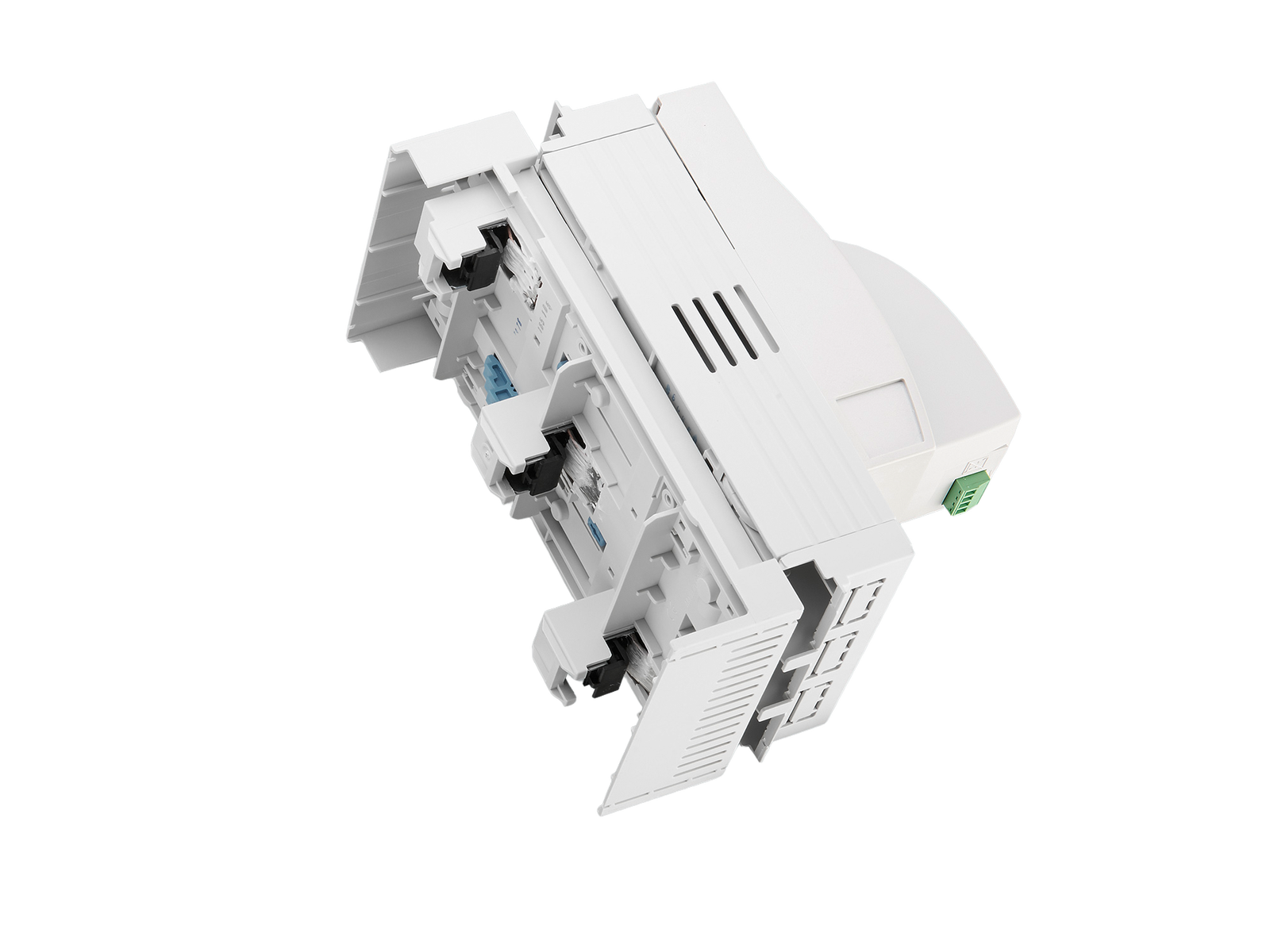

A imagem pode mostrar um produto similar.
Código da peça: 33394000
QUADRON®60Classic
chave seccion. de fusível NH, tam. 00, 160 A, p/ mont. em barramento, conexão sup / inf
parafuso M8
with electronic fuse monitoring
connection top or bottom
para barramentos 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção
com CrossLink®Technology
Sistema
60Classic
Vantagens do produto
CrossLink® adapter technology
Fast and safe conversion of the connection for top or bottom; the parts under voltage remain shock protected
Simple and safe clicking into place and making contact
Safe connection through shock protection split into two
Busbar supports for flat busbars can be mounted above each other
| Grupo de produto | 09 |
| Subgroup | 25 |
| Unidade por pacote | 1 |
| EAN | 4021267333942 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Approvals
IEC (CB) , UL , VDE , CCC , DNV GL
for UL feeder circuits >250V
Número de tipo: QCB-NH00
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| live grip lugs required: | Yes |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Dados IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Dados elétricos IEC | |
| Corrente de medição (IEC): | 160 A |
| Tensão de medição (IEC) AC: | 690 V |
| Tensão de medição (IEC) DC: | 250 V |
| Tensão nominal de isolamento: | 690 V |
| rated isolation voltage Ui DC: | 250 V |
| Tensão suportável nominal de impulso Uimp: | 6 kV |
| Utilisation category AC (IEC 60947-3) : | AC-22B (500 V) |
| cond. short-circuit current with fuses (AC): | 50 kA / 690 V |
| 80 kA / 500 V (160 A) | |
| approved wth fuse links of operation class: | gG |
Dissipação de energia do artigo:
A dissipação de energia em uma carga de 80% resulta em 11,3 W.
(A dissipação de energia em sua carga máxima seria 17,7 W.)
| Dados adicionais IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| tensão máxima IEC AC: | 725 V |
| tensão máxima IEC DC: | 262 V |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| for fuse links IEC 60269-2 / DIN VDE 0636-2 size 00 up to 12W power dissipation, with grip lugs under voltage | |
| Entsprechend den angegeben AC- und DC- Schalteigenschaften und unter Berücksichtigung der Überlastbedingungen, sind gewisse Abstände zu geerdeten Metallteilen einzuhalten. Nähere Informationen auf Anfrage. Bei Verwendung als Trennschalter ist die Einhaltung der Abstände nicht erforderlich. Bei Dauerbetrieb von mehreren Geräten nebeneinander ist der Bemessungsbelastungsfaktor nach VDE 0660 Teil 500 / EN60439-1, Tabelle 1 zu beachten. |
|
| Systemkomponente: frontseitig Schutzart IP30 nach DIN EN 60529, im Anschlussbereich vom Einbau abhängig Adaptermodul: frontseitig Schutzart IP20 nach DIN EN 60529 (fingersicher) Elektronische Sicherungsüberwachung: - Zur Erkennung von Sicherungsausfällen mit Bemessungsspannung AC 100V bis AC 690V - Keine Hilfsenergie erforderlich; Versorgung über Netzspannung - Hilfskontakte potentialfrei - LED- Blinkmelder (rot/grün) - Testtaster - Weitere Informationen unter Downloads / Datenblatt |
| Dados UL | |
| Standards | |
| UL 4248-1 |
| for UL feeder circuits >250V |
| Dados electricos UL | |
| corrente nominal (UL): | 160 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR: | 100 kA |
| Dados mecânicos | |
| L x A x P: | 106 x 200 x 137 |
| Peso: | 117,0 kg/100 |
| Polaridade: | 3 polos |
| para barramentos: | 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção |
| front degree of protection: | IP30 |
Busbar connector: externally tensioned contacting, convenient click mechanism, simple conversion of the combination bases from 5 to 10mm-thick busbars
| pontos terminais | |
| screw connection | |
| M8 | |
| screw drive: | SW13 |
| Md min.: | 8,0 Nm |
| Md max.: | 10,0 Nm |
| Not suitable for aluminium cables ! | |
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| live grip lugs required: | Yes |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| for UL feeder circuits >250V | |
