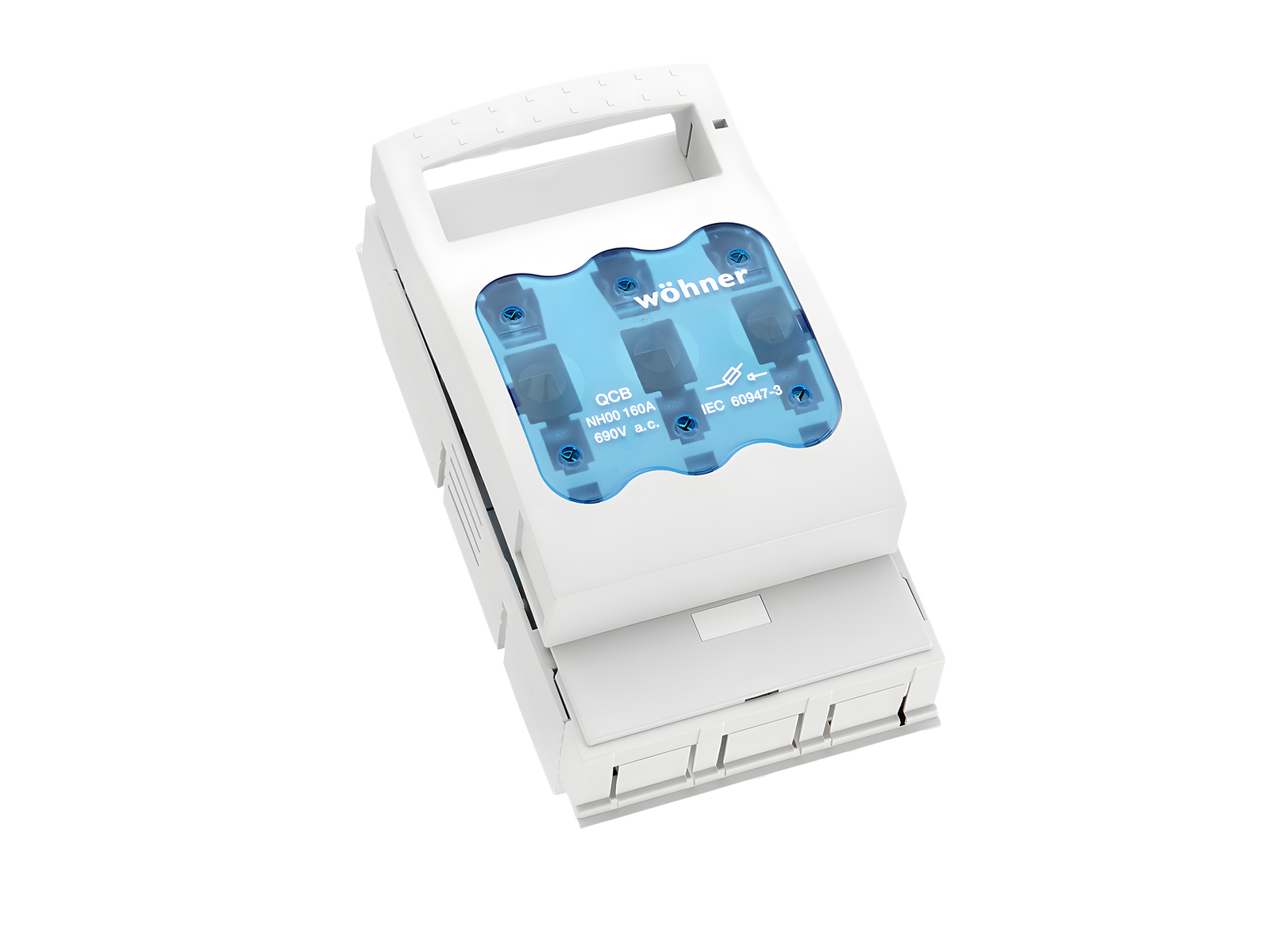

A imagem pode mostrar um produto similar.
Código da peça: 33079000
QUADRON®60Classic
interruptor-seccionador-fusível NH tamanho 00, 160 A, montagem em barramento, conexão superior/inferior
parafuso M8
adequado para sistema 5 polos
connection top or bottom
para barramentos 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção
Sistema
60Classic
| Grupo de produto | 09 |
| Subgroup | 24 |
| Unidade por pacote | 1 |
| EAN | 4021267330798 |
| ECLASS 6.1 | 27142108 |
| ECLASS 7.1 | 27142108 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Approvals
IEC (CB) , UL , VDE , CCC , DNV GL
for UL feeder circuits >250V
Número de tipo: QCB-NH00
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Dados IEC | |
| Standards | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Dados elétricos IEC | |
| Corrente de medição (IEC): | 160 A |
| Tensão de medição (IEC) AC: | 690 V |
| Tensão de medição (IEC) DC: | 440 V |
| Tensão nominal de isolamento: | 800 V |
| rated isolation voltage Ui DC: | 500 V |
| Tensão suportável nominal de impulso Uimp: | 6 kV |
| cond. short-circuit current with fuses (AC): | 50 kA / 690 V |
| 80 kA / 500 V (160 A) | |
| approved wth fuse links of operation class: | gG |
Dissipação de energia do artigo:
A dissipação de energia em uma carga de 80% resulta em 11,3 W.
(A dissipação de energia em sua carga máxima seria 17,7 W.)
| Dados adicionais IEC | |
|
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
| tensão máxima IEC DC: | 800 V |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
| Entsprechend den angegeben AC- und DC- Schalteigenschaften und unter Berücksichtigung der Überlastbedingungen, sind gewisse Abstände zu geerdeten Metallteilen einzuhalten. Nähere Informationen auf Anfrage. Bei Dauerbetrieb von mehreren Geräten nebeneinander ist der Bemessungsbelastungsfaktor nach VDE 0660 Teil 500 / EN60439-1, Tabelle 1 zu beachten. |
|
| System component: degree of protection IP30 at front as per DIN EN 60529, degree of protection near terminal depends on installation adapter module: front side degree of protection IP20 as per DIN EN 60529 (finger-safe) |
| Dados UL | |
| Standards | |
| UL 4248-1 |
| for UL feeder circuits >250V |
| Dados electricos UL | |
| corrente nominal (UL): | 160 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR: | 100 kA |
| Dados mecânicos | |
| L x A x P: | 106 x 200 x 97 |
| Peso: | 100,0 kg/100 |
| Polaridade: | 3 polos |
| para barramentos: | 12, 15, 20, 25, 30 x 5, 10 e barramentos de seção |
| front degree of protection: | IP30 |
Busbar connection:
externally tensioned contacting,
convenient click mechanism,
simple conversion of the combination bases from 5 to 10mm-thick busbars
| pontos terminais | |
| Md min.: | 12,0 Nm |
| Md max.: | 14,0 Nm |
| Not suitable for aluminium cables ! | |
|
Schellenanschluß (im Lieferumfang enthalten): Cu 1,5 -70mm² rm, f+AE; lam. Cu 12x1-10; |
|
| Not suitable for aluminium cables ! | |
| A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
| permitted power dissipation of the fuse-link: | 12 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| for UL feeder circuits >250V | |
