A imagem pode mostrar um produto similar.
Código da peça: 33217 000

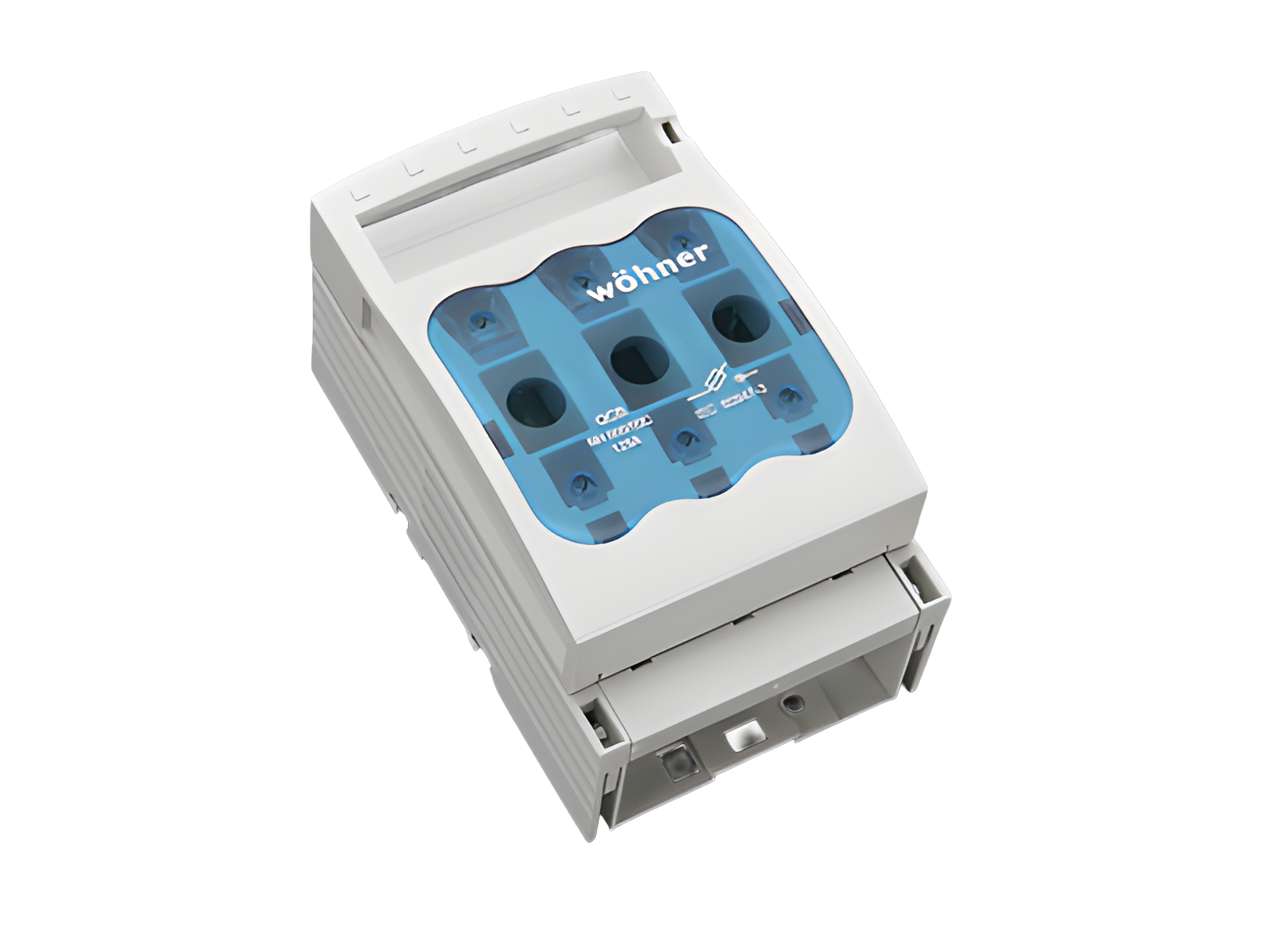

chave seccion. de fusível NH tam. 000, 125 A, montagem em painel
prensa-cabo
para montagem em placa
Sistema
Panel
Vantagens do produto
Self-closing inspection holes are available in the cover.
Grupo de produto | 09 |
Subgroup | 01 |
Unidade por pacote | 1 |
EAN | 4021267332174 |
ECLASS 6.1 | 27142108 |
ECLASS 7.1 | 27142108 |
ETIM 4.0 | EC001040 |
ETIM 5.0 | EC001040 |
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 4248-1
Approvals
IEC (CB) , UL , CCC , DNV GL
for UL feeder circuits >250V
Número de tipo: LTS-000
for fuse links size: | NH 000 |
fuse links acc. to standard: | IEC / HD 60269-2 |
permitted power dissipation of the fuse-link: | 9 W |
requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
Dados IEC | |
Standards | |
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Dados elétricos IEC | |
Corrente de medição (IEC): | 125 A |
Tensão de medição (IEC) AC: | 690 V |
Tensão de medição (IEC) DC: | 440 V |
Tensão nominal de isolamento: | 800 V |
rated isolation voltage Ui DC: | 500 V |
Tensão suportável nominal de impulso Uimp: | 6 kV |
Utilisation category AC (IEC 60947-3) : | AC-21B (690 V / 80 A) AC-22B (400 V / 125 A) |
Utilisation category DC (IEC 60947-3) : | DC specifications: 2 current paths (L1,L3) in series DC-22B (440V/63A) DC-22B (220V/100A) DC-21B (440V/80A) DC-21B (220V/125A) |
cond. short-circuit current with fuses (AC): | 50 kA / 690 V |
approved wth fuse links of operation class: | gG |
Dissipação de energia do artigo:
A dissipação de energia em uma carga de 80% resulta em 3,2 W.
(A dissipação de energia em sua carga máxima seria 5,0 W.)
Dados adicionais IEC | |
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel. |
tensão máxima IEC DC: | 800 V |
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. |
In accordance with the specified AC and DC switching properties and in consideration of the overload conditions, certain distances to earthed metal parts are to be adhered to. detailed information upon inquiry When several devices are used side-by-side in continuous operation, the rated load factor specified in IEC / EN 61439-1, Table 1, must be observed. |
Dados UL | |
Standards | |
UL 4248-1 |
for UL feeder circuits >250V |
Dados electricos UL | |
corrente nominal (UL): | 125 A |
rated voltage (UL) AC: | 600 V |
rated frequency (UL): | 50 / 60 Hz |
SCCR: | 100 kA |
Dados mecânicos | |
L x A x P: | 89 x 143 x 75 |
Peso: | 57,2 kg/100 |
Polaridade: | 3 polos |
Montagem: | para montagem em placa |
front degree of protection: | IP30 |
pontos terminais | |
cage clamp connection | |
screw drive: | S4 |
min. cross-section: | 1,5 mm² |
max. cross-section: | 50 mm² |
re: | 1.5 - 10 mm² |
rm: | 16 - 50 mm² |
f: | 2.5 - 50 mm² |
f + AE: | 1.5 - 50 mm² |
(f + AE may not fit with max. cross-section) | |
Not suitable for aluminium cables ! | |
Área de aperto: | 10 x 10 |
Not suitable for aluminium cables ! | |
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such. | |
permitted power dissipation of the fuse-link: | 9 W |
requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
for UL feeder circuits >250V |
33247
000
kit de montagem rápida
para 1 trilho de montagem
tamanho 000
Mais
33906
000

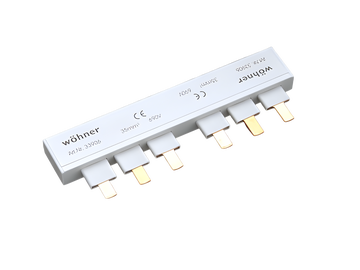

barramento tipo pente, 3 polos, para 2 chaves seccionadoras de fusível NH
35 mm²
para: 33217
Mais
33907
000

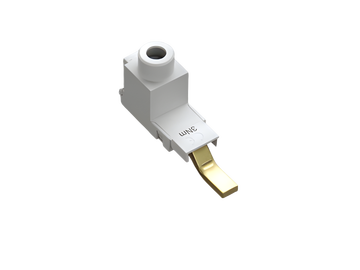

terminal de conexão, conexão frontal
para barramento tipo pente 3 polos 35 mm², adequado para chave seccionadora de fusível NH tamanho 000 com prensa-cabo
4 - 35 mm²
Mais
33219
000
moldura de acabamento, única
130 x 210
tamanho 000
Mais
