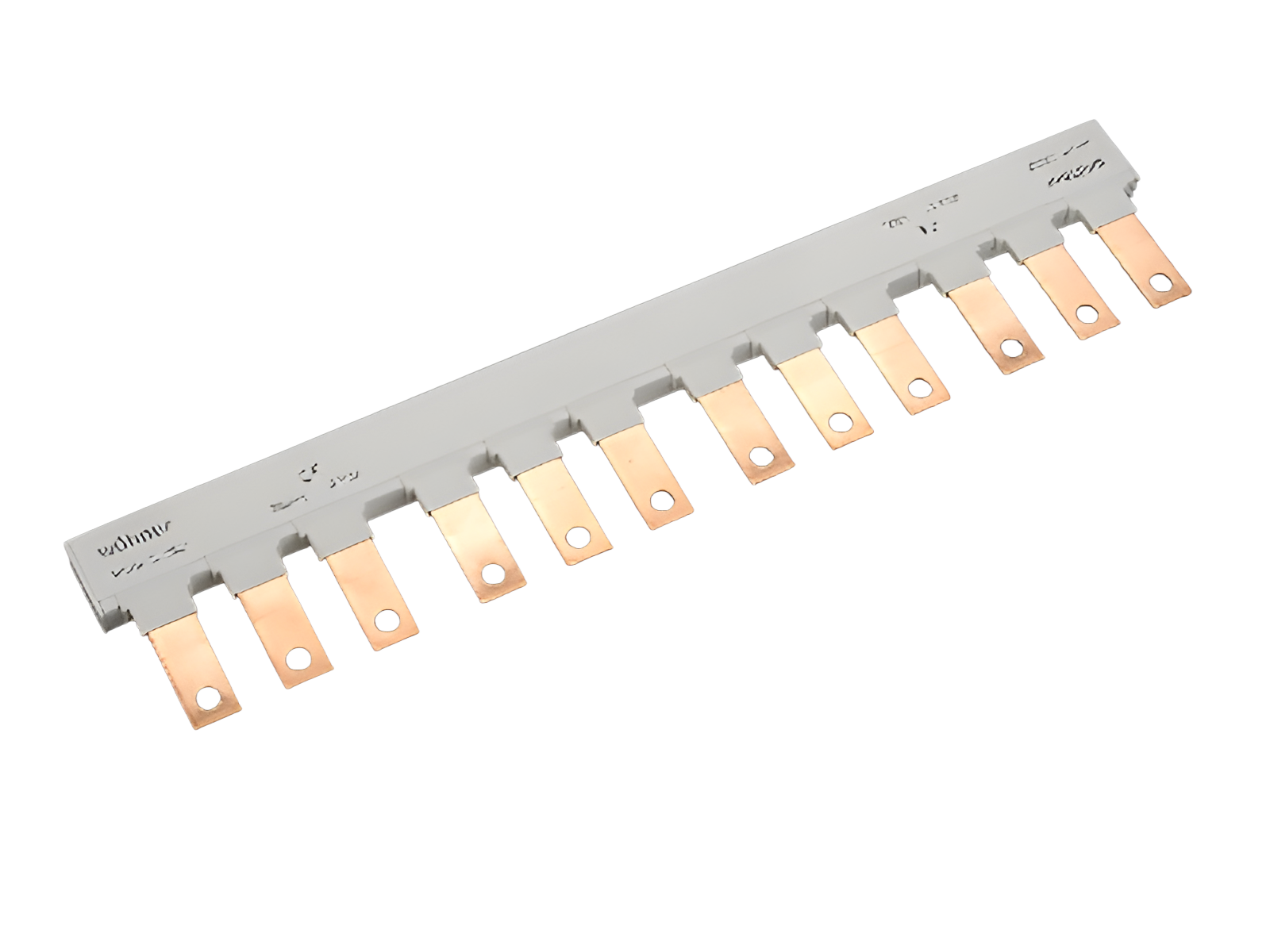

The picture may show a similar product.
Cod.art.: 33392 000
barra a pettine, 3p, per 4 basi sezion.
35 mm²
per 33200
Vantaggi prodotto
Shock protection: as per DIN EN 50274/BGV A3
Prefabricated for four NH- LTS closed version with end caps
| gruppo di prodotto | 09 |
| sottogruppo prodotto | 51 |
| pz/ conf. | 4 |
| EAN | 4021267333928 |
| ETIM 5.0 | EC000215 |
| ETIM 8.0 | EC000215 |
| ETIM 10.0 | EC000215 |
Norme
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
| Details IEC | |
| Norme | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Valori elettrici
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 8,9 W.
(The power dissipation at full load would be 13,9 W.)
| rated insulation voltage: 800V at pollution degree 2; 690V at pollution degree 3 For rated operating current, see download diagram |
|
| rated surge withstand capacity: 25 kA /400V; rated short-time withstand current resistance: 12.5kA-100ms/400V |
|
| Degree of protection: IP 20 at front in combination NH-LTS, comb-type busbar and connecting terminal possible. Degree of protection near terminal depends on installation. |
| Valori meccanici | |
| L x A x P: | 424 x 15 x 32 |
| peso: | 62,3 kg/100 |
| Sezione: | 35 mm² |
| Proprietà materiali | |
| halogen-free: | Yes |
|
Recommended installation situation: |
|
