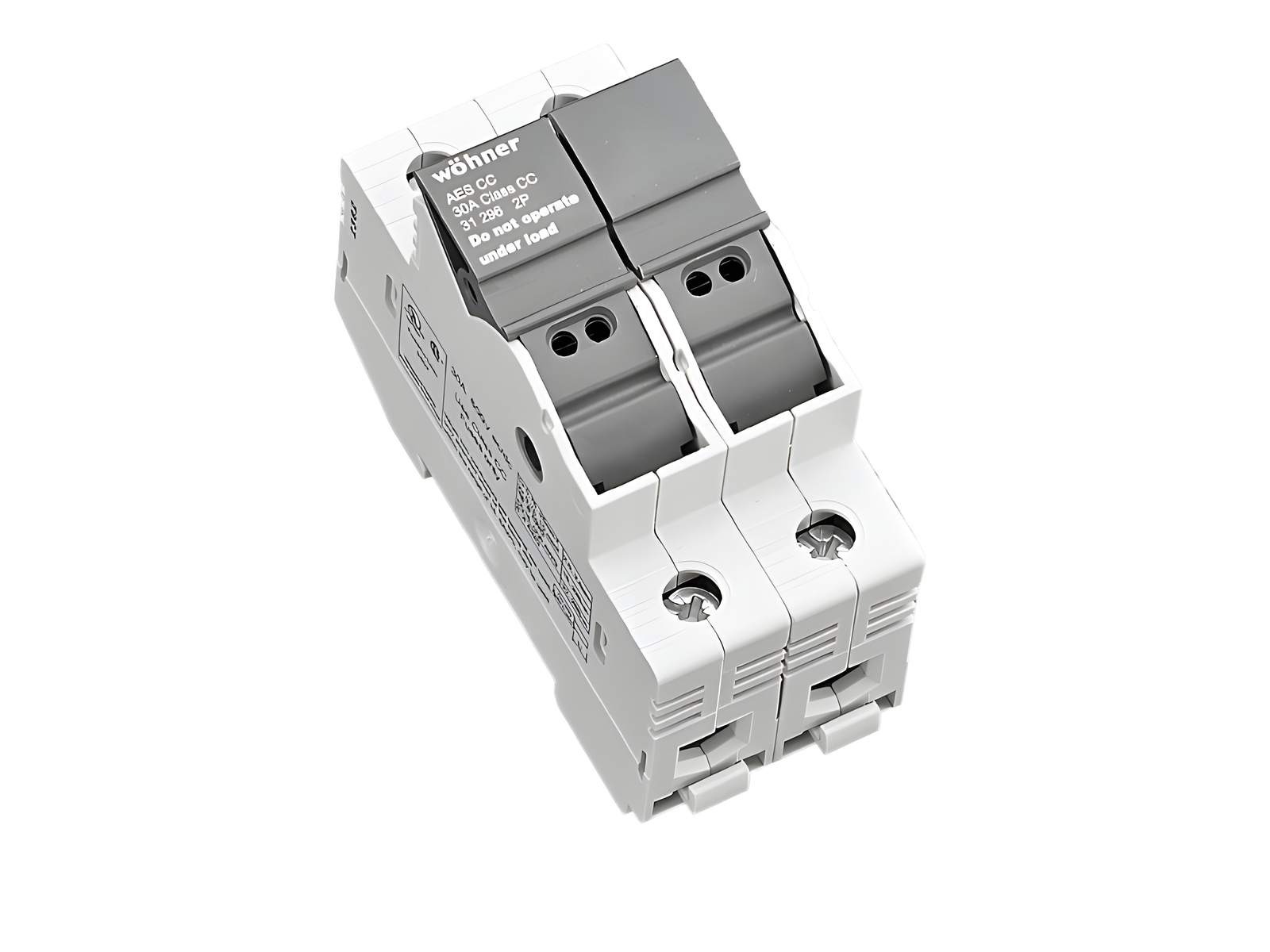

Base sezion. per fusibili cilindr. (31296)

The picture may show a similar product.

Descrizione

Cod.art.: 31296000

AMBUS®Panel

Base sezion. per fusibili cilindr.

Class CC / 2P

30 A / 600 V

for mounting rail

Montaggio

Panel

Vantaggi prodotto

large clamping range, also for two identical conductors (adjacent)
holder for label

gruppo di prodotto 17
sottogruppo prodotto 07
pz/ conf. 6
EAN 4021267312961
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002705
ETIM 5.0 EC002705

Certificazioni

Norme

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system J

UL 4248-1

UL 4248-4

Omologazioni

CSA , UL , CCC

for UL feeder circuits >250V

type no.: AESCC

UL file: E230163, UL category (for USA): IZLT https://www.ul.com

UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com

CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org

CCC certificate: 21107299296

Dati tecnici

per fusibili di grandezza: Class CC
fusibile secondo norma: UL 248-4
potenza diss. max. ammissibile del fusibile inserito: 4 W
Details IEC
Norme
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system J

Valori elettrici

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0,4 W.

(The power dissipation at full load would be 0,6 W.)

Details UL
Norme
UL 4248-1
UL 4248-4
for UL feeder circuits >250V
suitable for field-installed conductors
Electrical data UL
corrente nominale (UL): 30 A
tensione nominale (UL) AC: 600 V
frequenza nominale (UL): 50 / 60 Hz
tensione nominale (UL) DC: 600 V
SCCR: 200 kA
Valori meccanici
L x A x P: 36 x 81 x 58
peso: 11,3 kg/100
Poli: 2 poli
Mounting: for mounting rail
grado di protezione: IP20
grado di protezione dal fronte: IP20
Connessioni
cage clamp connection
screw drive: PZ2
wire stripping: 11 mm
min. cross-section: 0,75 mm²
max. cross-section: 25 mm²
Md min.: 2,0 Nm
Md max.: 2,5 Nm
Not suitable for aluminium cables !

min. cross-section UL: AWG 18
max. cross-section UL: AWG 4


for applications acc. to IEC / EN :
1 wire :
Cu 0,75 - 25 mm²
2 wires (of same cross-section) :
Cu 0,75 - 10 mm²
flexible cables, directly or with wire-end ferrule
(flexible cables of max. cross-section may not fit when using wire-end ferrule)
Md 2,0 - 2,5 Nm / 18 - 22 lb.in.

for applications acc. to UL / CSA :
only Cu cables acc. to UL 486E 60°C/75°C
1 wire :
AWG 18 - AWG 8, Class B, Md 2,0 -2,5 Nm / 18 - 22 lb.in.
AWG 6 - AWG 4, Class C, Md 2,5 - 3,0 Nm / 22 - 26 lb.in.
2 wires (of identical cross-section) :
AWG 18 - AWG 8, Class B, Md 2,0 - 2,5 Nm / 18 - 22 lb.in.
AWG 6, Class C, Md 2,0 - 2,5 Nm / 18 - 22 lb.in.

Application notes

Not suitable for aluminium cables !
potenza diss. max. ammissibile del fusibile inserito: 4 W
for UL feeder circuits >250V
