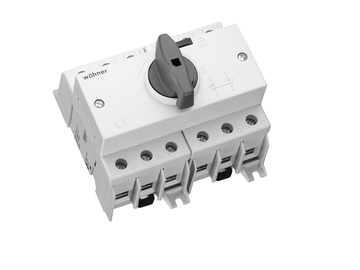

The picture may show a similar product.
Cod.art.: 33695 000A
set calotte copriterminali 3p
per SD2-3, SD2-4
| gruppo di prodotto | 14 |
| sottogruppo prodotto | 51 |
| pz/ conf. | 1 |
| EAN | 4021267336950 |
| ECLASS 6.1 | 27371492 |
| ECLASS 7.1 | 27371492 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Norme
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
UL 60947-4-1
Omologazioni
UL
type no.: SD2-C-3
UL file: E506215, UL category (for USA): NLRV https://www.ul.com
UL file: E506215, UL category (for Canada): NLRV7 https://www.ul.com
| Details IEC | |
| Norme | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Details UL | |
| Norme | |
| UL 60947-4-1 |
| Electrical data UL | |
| for wires UL: | Cu 75°C |
| Valori meccanici | |
| peso: | 2.2 kg/100 |
| Poli: | 3 poli |
| Connessioni | |
| min. cross-section UL: | AWG 6 |
| max. cross-section UL: | AWG 1 |
| torque (UL): | 31 lb-in |
| for wires UL: | Cu 75°C |
|
Two connection space covers are necessary for each the top and the bottom of a 3P+N switch: 3-pole and 1-pole. |
|
|
not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
|
