The picture may show a similar product.
Cod.art.: 33365000

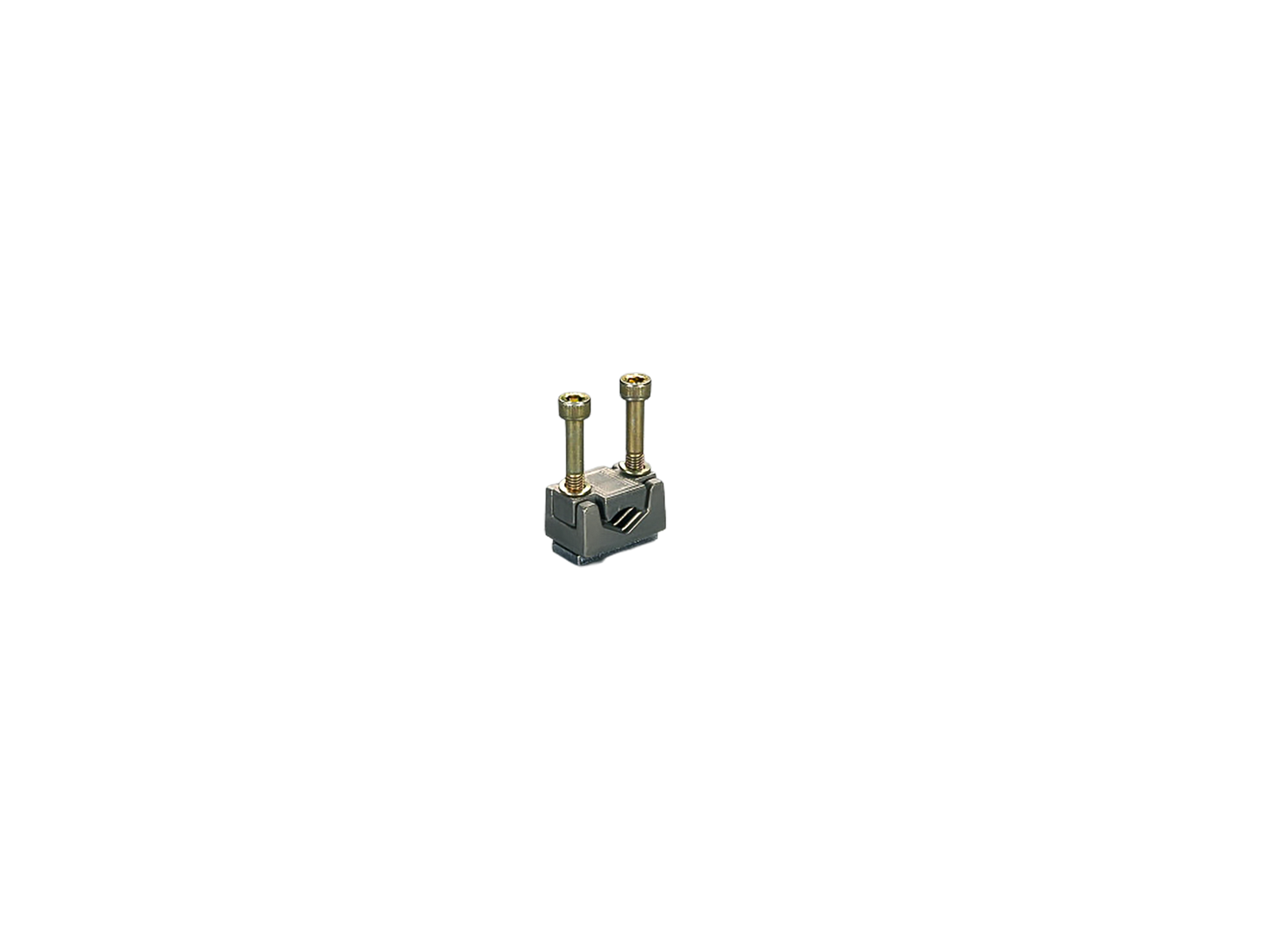

Morsetto a prisma per cavi Cu e Al
70 - 120 mm²
per LTS 250
BPE-200
| gruppo di prodotto | 14 |
| sottogruppo prodotto | 51 |
| pz/ conf. | 3 |
| EAN | 4021267333652 |
| ECLASS 6.1 | 27371492 |
| ECLASS 7.1 | 27371492 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Norme
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
| Details IEC | |
| Norme | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Valori meccanici | |
| peso: | 6.7 kg/100 |
| Connessioni | |
| min. cross-section: | 70 mm² |
| max. cross-section: | 120 mm² |
|
Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions. |
|
|
70 - 120 |
|
| Suitable for aluminium cables. When using aluminium cables, observe the maintenance instructions. |
|
| short-circuit withstandability: | determined by main product |
