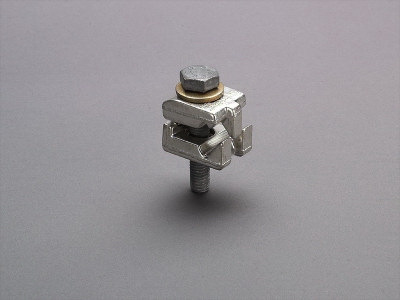

The picture may show a similar product.
Cod.art.: 33268000
Morsetto per conn. Cu e Al
Gr. NH 3
| gruppo di prodotto | 12 |
| sottogruppo prodotto | 70 |
| pz/ conf. | 3 |
| EAN | 4021267332686 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Norme
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
| Details IEC | |
| Norme | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Valori meccanici | |
| peso: | 10.1 kg/100 |
1 x 35-150mm² s(s) 1 x 50-185mm² sol(s) 1 x 35- 70mm² s(r) 1 x 50mm² sol(r)
Connections not maintenance-free if aluminium conductors are used
| Connessioni | |
| min. cross-section: | 35 mm² |
| max. cross-section: | 185 mm² |
| short-circuit withstandability: | determined by main product |
