Référence 37536 000A
QUADRON®185Power
réglette sectionneur à fusible 250 A
taille 1, commutation à 1 pôle
V-clamp 50-300mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 250 A / 333 mV, accuracy class 1, with 6-pole plug connection
pour jeux de barres 30, 40, 60, 80, 100, 120 x 10
coming soon
Système
185Power
Avantages produit
Self-closing inspection holes are available in the cover.
Cover can be locked when closed.
Groupe de produits | 12 |
Sous-groupe | 63 |
Dimensions de l'emballage | 1 |
EAN | 4021267375362 |
ECLASS 6.1 | 27142108 |
ECLASS 7.1 | 27142108 |
ETIM 4.0 | EC001046 |
ETIM 5.0 | EC001046 |
Normes
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Type: QU185-1 Pre-Assembled
for fuse links size: | NH 1 |
fuse links acc. to standard: | IEC / HD 60269-2 |
permitted power dissipation of the fuse-link: | 23 W |
requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
Details IEC | |
Normes | |
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
Electrical data IEC | |
Courant assigné (IEC): | 250 A |
Tension assignée (IEC) CA: | 800 V |
accuracy class (current): | 1 |
rated isolation voltage Ui AC: | 1000 V |
Tension assignée de tenue aux chocs Uimp: | 12 kV |
Catégorie d'emploi CA: | AC-22B (800 V / 160 A) |
Catégorie d'emploi CC: | DC-20B max. voltage between the fuses: 1000V visible information required: Do not switch under load. |
cond. short-circuit current with fuses (AC): | 80 kA / 800 V (160 A) |
100 kA / 690 V (250 A) | |
120 kA / 500 V (250 A) | |
approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 15,4 W.
(The power dissipation at full load would be 24,0 W.)
Supplementary data IEC | |
Les valeurs suivantes ont été vérifiées par des tests sous certaines conditions. Veuillez demander ces conditions à Wöhner avant de concevoir votre armoire. |
Les unités de commutation à fusibles conformes à la norme IEC 60947-3 ne peuvent fonctionner au-delà de la tension de service nominale que si elles sont utilisées comme sectionneurs à fusible sans fonction de commutation de charge et cela jusqu'à la tension d'isolement assignée et sont marquées en conséquence. |
Besondere Betriebsbedingungen gemäß IEC / EN 61439-1 können zu Fehlauslösungen von Meldeschaltern oder Sicherungsüberwachungen führen. Die vorliegenden Betriebsbedingungen sind dementsprechend bei der Auswertung der Meldesignale zu berücksichtigen. | |
Degree of protection IP20 at front, degree of protection near terminal depends on installation |
Charactéristiques mécaniques | |
L x H x P: | 100 x 687 x 189 |
Poids: | 543,0 kg/100 |
Pôles: | 3 pôles |
pour jeux de barres: | 30, 40, 60, 80, 100, 120 x 10 |
front degree of protection: | IP20 |
degree of protection when open: | IP10 |
Type of fastening:
can be screwed onto drilled busbar, diameter 13mm, undrilled mounting with terminal clamp
Points de raccordement | |
v-clamp | |
min. cross-section: | 50 mm² |
max. cross-section: | 300 mm² |
re: | 70 - 150 mm² |
rm: | 50 - 120 mm² |
se: | 35 - 240 mm² |
sm: | 35 - 185 mm² |
Suitable for aluminium conductors. the temperature of aluminium conductors must not exceed 80°C (see operating instructions) pre-treatment of aluminium conductors: see general technical information (under Downloads) |
Suitable for aluminium conductors. the temperature of aluminium conductors must not exceed 80°C (see operating instructions) pre-treatment of aluminium conductors: see general technical information (under Downloads) |
|
Les unités de commutation à fusibles conformes à la norme IEC 60947-3 ne peuvent fonctionner au-delà de la tension de service nominale que si elles sont utilisées comme sectionneurs à fusible sans fonction de commutation de charge et cela jusqu'à la tension d'isolement assignée et sont marquées en conséquence. | |
The terminal compartment cover 33733 is always needed for the connection at top and when using cable lugs. |
|
permitted power dissipation of the fuse-link: | 23 W |
requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
33740
000A
étrier de serrage
etier de serrage sans protection
taille 1 - 3
Plus
33738
000A
étrier de serrage CrossLink®
pour des jeux de barres avec protection CrossLink® contre les contacts accidentels
taille 1 - 3
Plus
33559
000B
V-clamp
with cover cap
terminal body alu, pressure piece brass
taille 1-3
for Cu / Al 50 - 300 mm²
Nouveau
Plus
33733
000A
cache-bornier
universel pour réglettes NH, taille 1 - 3 et réglette de raccordement 800 A
taille 1 - 3
Plus
33758
000A
obturateur latéral
pour caches frontaux
taille 00 - 3
Plus

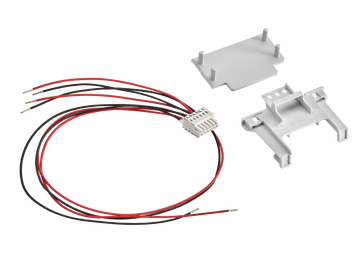

37902
000A
Connection kit LTL NH1-3 for RJ12 cable
spring strip with 6 x 0.5 mm² cables
for internal wiring of the transformers and connection of the RJ12 cable
coming soon
Plus
37903
000A
Wago connector components
for independent assembly of RJ12 cables
coming soon
Plus
37904
000A
RJ12 Leitung mit Wago-Stiftleiste
with leads RJ12, 3.00 m
to connect prewired in-line fuse switch-disconnectors with the current extension module 37100
coming soon
Plus
37905
000A
RJ12 Leitung mit Wago-Stiftleiste
with leads RJ12, 1.5 m
to connect prewired in-line fuse switch-disconnectors with the current extension module 37100
coming soon
Plus
37906
000A
RJ12 Leitung mit Wago-Stiftleiste
with leads RJ12, 0.6 m
to connect prewired in-line fuse switch-disconnectors with the current extension module 37100
coming soon
Plus
33156
000
contact de signalisation
commutateur 250 V AC / 5 A, 30 V DC / 4 A
Plus
Trouver votre contact
to the contact site
