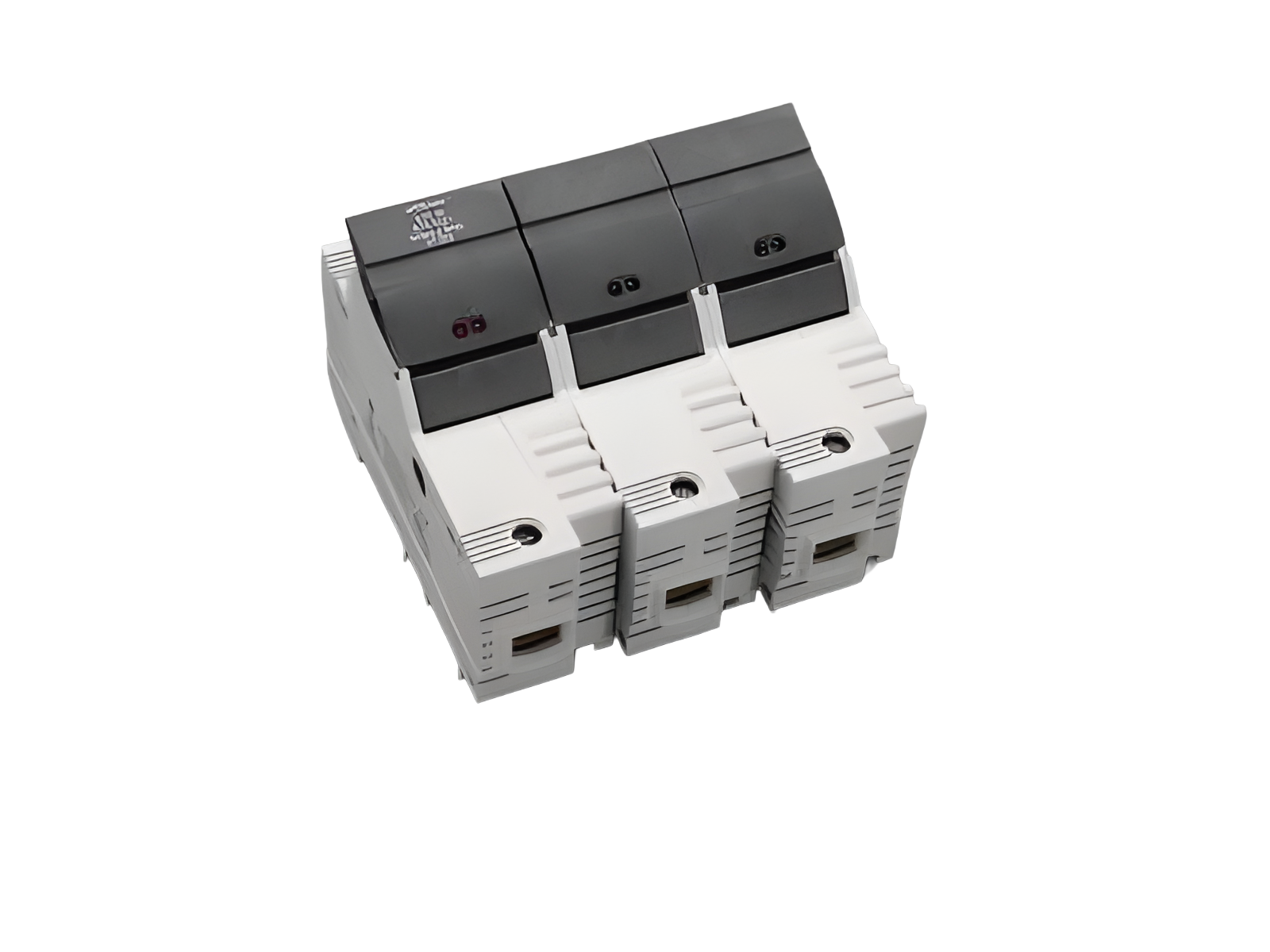

support pour fusibles cylindriques avec LED (31925)

The picture may show a similar product.

Description

Référence 31925 000

AMBUS®Panel

support pour fusibles cylindriques avec LED

Class J / 3P, borne à cage 50 mm²

60 A / 600 V (27x60)

for mounting rail

Système

Panel

Avantages produit

large clamping range, also for two identical conductors (adjacent)
holder for label
with indicator for tripped fuse
any polarity for DC voltage applications

Groupe de produits 16
Sous-groupe 06
Dimensions de l'emballage 2
EAN 4021267319250
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002705
ETIM 5.0 EC002705

Homologations

Normes

IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H

UL 4248-8

UL 4248-1

Approbations

CSA , UL

for UL feeder circuits >250V

Type: AJC60

UL file: E230163, UL category (for USA): IZLT https://www.ul.com

UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com

CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org

Données techniques

for fuse links size: Class J 60 A
fuse links acc. to standard: UL 248-8
permitted power dissipation of the fuse-link: 7 W
Details IEC
Normes
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-2:2013 + A1:2016, Fuse system H
Electrical data IEC
min. operating voltage AC: 110 V
min. operating voltage DC: 110 V

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 2,5 W.

(The power dissipation at full load would be 3,9 W.)

for Class J fuses 35 - 60A as per UL 248-8 (27x60)

indicator light
operating voltage range: 110 - 600 V AC / DC
Details UL
Normes
UL 4248-8
UL 4248-1
for UL feeder circuits >250V
suitable for field-installed conductors
Electrical data UL
rated current (UL): 60 A
rated voltage (UL) AC: 600 V
min. operating voltage AC: 110 V
rated frequency (UL): 50 / 60 Hz
rated voltage (UL) DC: 600 V
min. operating voltage DC: 110 V
for wires UL: Cu 75°C
Icc: 200 kA
Charactéristiques mécaniques
L x H x P: 120 x 118 x 82
Poids: 55,9 kg/100
Pôles: 3 pôles
Mounting: for mounting rail
degree of protection: IP20
front degree of protection: IP20
Points de raccordement
Not suitable for aluminium cables !

min. cross-section UL: AWG 14
max. cross-section UL: AWG 1/0
for wires UL: Cu 75°C


for applications acc. to IEC / EN :
1 wire : Cu 6 - 50 mm², Md 3,5 - 4,0 Nm / 31 - 35 lb.in.
2 wires (of same cross-section) : Cu 6 - 16 mm², Md 3,5 - 4,0 Nm / 31 - 35 lb.in.
flexible cables, directly or with wire-end ferrule
(flexible cables of max. cross-section may not fit when using wire-end ferrule)

for applications acc. to UL / CSA :
only Cu cables acc. to UL 486E
1 wire : AWG 14 - AWG 1, Class C, Md 4,0 Nm / 35 lb.in.
2 wires (of identical cross-section) :  AWG 14 - AWG 6, Class C, Md 4,0 Nm / 35 lb.in.

Application notes

Not suitable for aluminium cables !
permitted power dissipation of the fuse-link: 7 W
for UL feeder circuits >250V

Links

Article master data, overviews and prices

Calcul de la plus-value métal

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Documentation

| Informations techniques générales

| Symbole CAD 3D PDF

| Symbole CAD 3D STP

| Symbole CAD 2D DXF

| Data packet EPlan (*.edz)

| Dessin d’encmbrement

| Déclaration de conformité UE

| Descriptif produit (Pdf)

| Donnée pour la vérification de la conformité à l’IEC/EN 61439-1

| Texte complet pour spécification format (*.rtf)

| Texte standard pour spécification format (*.rtf)

Accessoires

fuse links

31360 000
fusible 35 A
-Mersen-
600 V AC, time delay
Class J, 27x60
Plus

31361 000
fusible 40 A
-Mersen-
600 V AC, time delay
Class J, 27x60
Plus

31362 000
fusible 45 A
-Mersen-
600 V AC, time delay
Class J, 27x60
Plus

31363 000
fusible 50 A
-Mersen-
600 V AC, time delay
Class J, 27x60
Plus

31364 000
fusible 60 A
-Mersen-
600 V AC, time delay
Class J, 27x60
Plus

31511 000A
fusible 35 A
-Mersen-
600 V AC, fast acting
Class J, 27x60
Plus

31512 000A
fusible 40 A
-Mersen-
600 V AC, fast acting
Class J, 27x60
Plus

31514 000A
fusible 50 A
-Mersen-
600 V AC, fast acting
Class J, 27x60
Plus

31515 000A
fusible 60 A
-Mersen-
600 V AC, fast acting
Class J, 27x60
Plus

Similar products

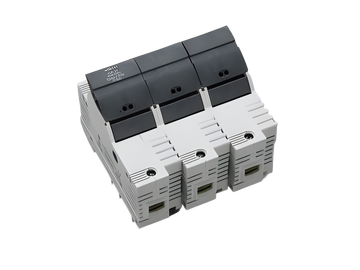

31922 000
AMBUS®Panel
support pour fusibles cylindriques
Class J / 3P, borne à cage 50 mm²
60 A / 600 V (27x60)
for mounting rail
Plus

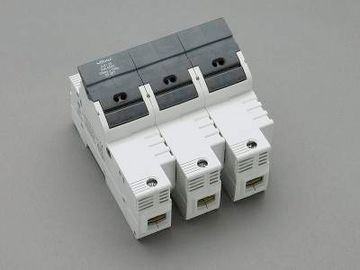

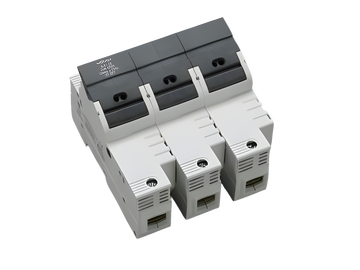

31287 000
AMBUS®Panel
support pour fusibles cylindriques
Class J / 3P, borne à cage 50 mm²
30 A / 600 V (21x57)
for mounting rail
Plus
