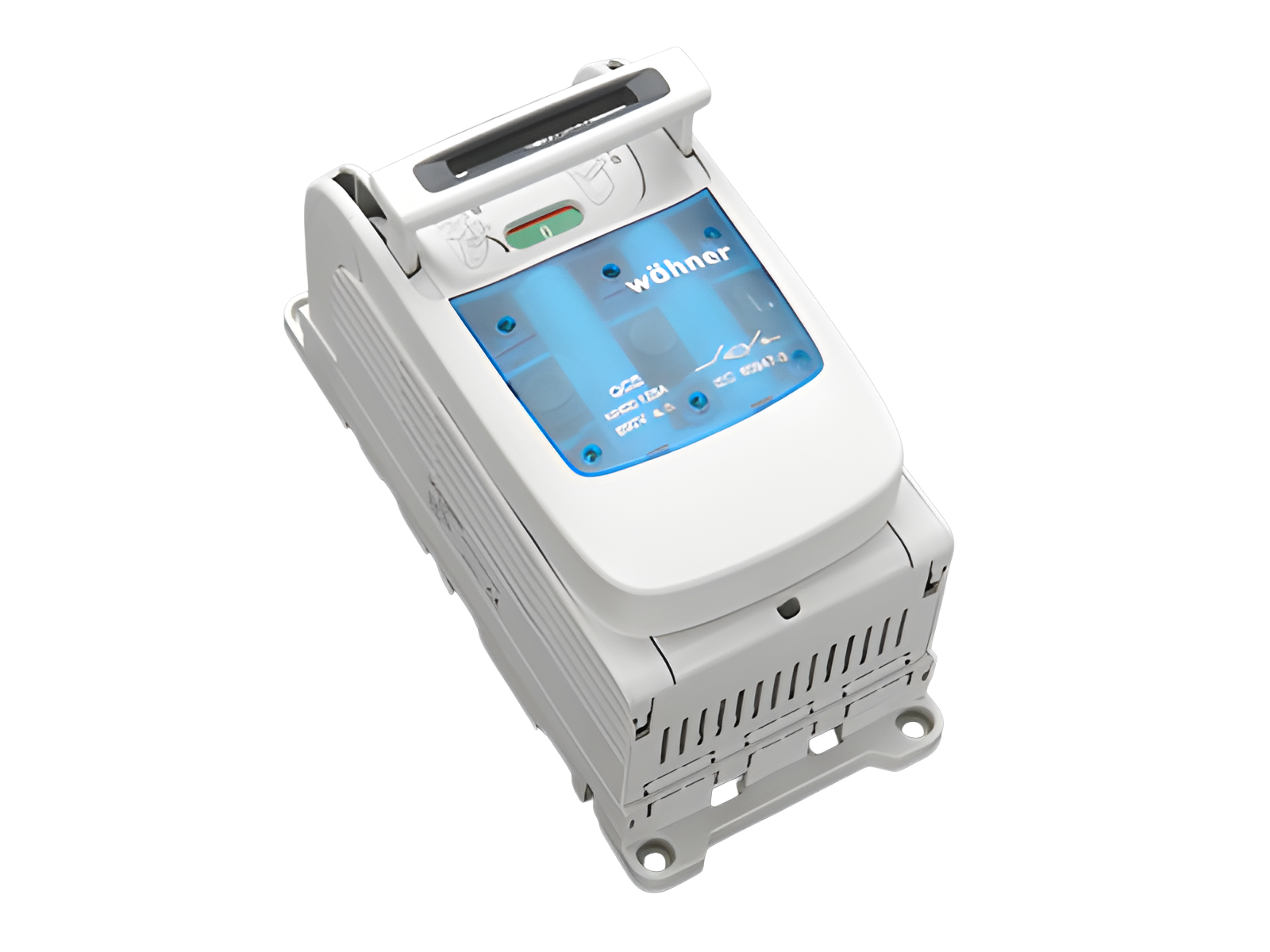

The picture may show a similar product.
Référence 33502 000
QUADRON®Panel Speed
sectionneur avec fusibles à 3 pôles
borne à cage
taille 00
double-breaking
operator independent switching (snap-action mechanism)
for mounting plate
Système
Panel
Avantages produit
With spring-controlled switch mechanism for frequent switching as per utilisation category "A"
Can be locked in neutral position with up to 3 padlocks
FLAG indicator shows the switch setting
Fuses can be changed safely and without tools thanks to double-breaking main contacts
Additional visible separating section by removing the cover incl. fuses
Can be used as mains disconnector as per IEC / EN 60204-1 (main switch)
Mains switch only in combination with AC-23A/B
Compact dimensions (106mm wide)
| Groupe de produits | 15 |
| Sous-groupe | 03 |
| Dimensions de l'emballage | 1 |
| EAN | 4021267335021 |
| ECLASS 6.1 | 27371401 |
| ECLASS 7.1 | 27371401 |
| ETIM 4.0 | EC001040 |
| ETIM 5.0 | EC001040 |
Normes
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Approbations
IEC (CB) , VDE , CCC
Type: QCS-NH00
CCC certificate: 2010010302392782
| for fuse links size: | NH 000, NH 00 |
| fuse links acc. to standard: | IEC / HD 60269-2 |
| permitted power dissipation of the fuse-link: | 10 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
| Details IEC | |
| Normes | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| Electrical data IEC | |
| Courant assigné (IEC): | 125 A |
| Tension assignée (IEC) CA: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| Tension assignée de tenue aux chocs Uimp: | 8 kV |
| Catégorie d'emploi CA: | AC-23B (690V/125A) AC-23A (500V/125A) AC-22A (690V/125A) |
| Catégorie d'emploi CC: | 2 current paths (L1,L3) in series DC-22B (220V/125A) 3 current paths in series DC-22B (440V/63A) |
| cond. short-circuit current with fuses (AC): | 50 kA / 690 V (125A) |
| approved wth fuse links of operation class: | gG |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 16,2 W.
(The power dissipation at full load would be 25,4 W.)
| Special operating conditions corresponding to IEC / EN 61439-1 may yield to foulty activations of pilot switches and fuse monitors. The operating conditions have to be considered for the analysis of status signals. | |
| When several devices are used side-by-side in continuous operation, the rated load factor specified in VDE 0660 Part 500 / EN 60 439-1, Table 1, must be observed. |
| Charactéristiques mécaniques | |
| L x H x P: | 106 x 233 x 128 |
| Poids: | 208,0 kg/100 |
| Pôles: | 3 pôles |
| Mounting: | for mounting plate |
| Points de raccordement | |
| cage clamp connection | |
| screw drive: | S4 |
| wire stripping: | 20 mm |
| min. cross-section: | 1,5 mm² |
| max. cross-section: | 70 mm² |
| re: | 1.5 - 10 mm² |
| f: | 1.5 - 70 mm² |
| f + AE: | 1.5 - 70 mm² |
| (f + AE may not fit with max. cross-section) | |
| Md min.: | 5,0 Nm |
| Md max.: | 6,0 Nm |
| Not suitable for aluminium cables ! | |
| Alvéole de serrage: | 13x13 |
| lam. Cu width: | 9 - 13 mm |
| lam. Cu thickness: | 1 - 10 mm |
| Not suitable for aluminium cables ! | |
| permitted power dissipation of the fuse-link: | 10 W |
| requirements for contact parts: |
Fuse links with silver-plated contact pieces recommended. For fuse links with nickel-plated contact pieces, a reduction factor of 0.8 is to be observed. |
