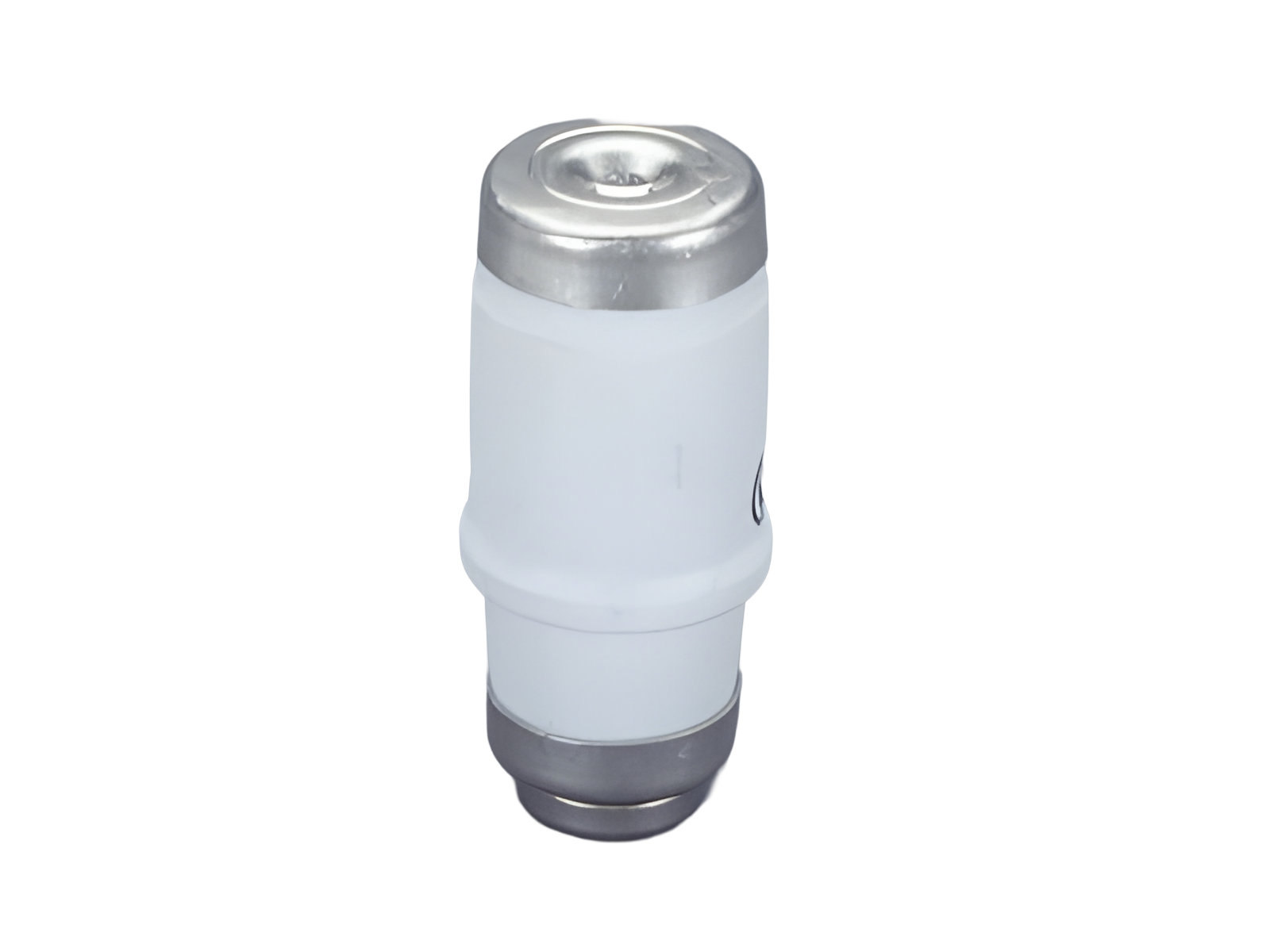

The picture may show a similar product.
Référence 01693000
fusible D02, 50 A
400 V, gG
E 18
with silver plated contacts
| Groupe de produits | 22 |
| Sous-groupe | 01 |
| Dimensions de l'emballage | 10 |
| EAN | 4021267016937 |
| ECLASS 6.1 | 27142119 |
| ECLASS 7.1 | 27142119 |
| ETIM 4.0 | EC001642 |
| ETIM 5.0 | EC001642 |
Normes
IEC 60269-1:2006 + A1:2009 + A2:2014
IEC 60269-3:2010 + A1:2013 + A2:2019
| Taille: | D02 / E 18 |
| Details IEC | |
| Normes | |
|
IEC 60269-1:2006 + A1:2009 + A2:2014 IEC 60269-3:2010 + A1:2013 + A2:2019 |
| Electrical data IEC | |
| Courant assigné (IEC): | 50 A |
| Tension assignée (IEC) CA: | 400 V |
| Tension assignée (IEC) CC: | 250 V |
| operation class | gG |
| Pouvoir coupure assigné CA | 50 kA |
| Pouvoir coupure assigné CC | 8 kA |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 3,2 W.
(The power dissipation at full load would be 5,0 W.)
| Charactéristiques mécaniques | |
| Poids: | 1,5 kg/100 |
