for UL feeder circuits >250V

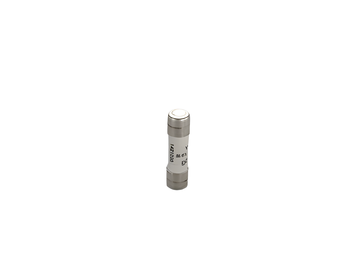

The picture may show a similar product.
Référence 36131000A
MOTUS®CrossBoard
démarreur moteur hybride 3 pôles
démareur direct inverse de 1,5 - 7,0 A / contacteur de charge résistive de 1,5 - 9,0 A
avec module IO-Link et interface CrossLink®
avec interface CrossLink®
Nouveau
Système
CrossBoard® 125A / 250A, CrossBoard® 800 A
| Groupe de produits | 21 |
| Sous-groupe | 01 |
| Dimensions de l'emballage | 1 |
| EAN | 4021267361310 |
| ECLASS 6.1 | 27370804 |
| ECLASS 7.1 | 27370804 |
| ETIM 4.0 | EC001037 |
| ETIM 5.0 | EC001037 |
Normes
IEC 60947-1:2007 + A1:2010 + A2:2014
IEC 60947-4-2:2011
IEC 61508-1:2010
ISO 13849-1:2015
UL 60947-1
Approbations
UL
for UL feeder circuits >250V
Type: 36131
UL file: E360470, UL category (for USA): NLDX https://www.ul.com
UL file: E360470, UL category (for Canada): NLDX7 https://www.ul.com
| Details IEC | |
| Normes | |
|
IEC 60947-1:2007 + A1:2010 + A2:2014 IEC 60947-4-2:2011 IEC 61508-1:2010 ISO 13849-1:2015 |
| Electrical data IEC | |
| Courant assigné (IEC): | 9 A |
| Tension assignée (IEC) CA: | 500 V |
| min. operating voltage AC: | 42 V |
| trigger characteristic: | Class 10A |
| set nominal current: | Yes |
| min. load current: | 1.5 A |
| max. switching frequency: | 2 Hz |
| switching cycles: | 30.000.000 |
| safety level: | SIL3 |
| rated frequency (IEC): | 50 / 60 Hz |
| rated isolation voltage Ui AC: | 550 V |
| Tension assignée de tenue aux chocs Uimp: | 6 kV |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 7,7 W.
(The power dissipation at full load would be 12,0 W.)
| Details UL | |
| Normes | |
| UL 60947-1 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 7.6 A |
| rated voltage (UL) AC: | 500 V |
| min. operating voltage AC: | 42 V |
| rated frequency (UL): | 50 / 60 Hz |
| SCCR unprotected max.: | 5 kA |
| 3 cycles (without OPD) @ 600 V AC | |
| SCCR protected max.: | 100 kA |
| SCCR: | 100 kA with JDDZ fuse Class J 175 A / 600 V AC |
| Charactéristiques mécaniques | |
| L x H x P: | 22.5 x 160 x 120 |
| Poids: | 51,4 kg/100 |
| Pôles: | 3 pôles |
| degree of protection: | IP20 |
| vertical installation position: | Yes |
| horizontal installation position: | No |
| Points de raccordement | |
| screw clamp connection | |
| screw drive: | 0,8x4 |
| wire stripping: | 8 mm |
| min. cross-section: | 0,2 mm² |
| max. cross-section: | 2,5 mm² |
| Md min.: | 0,5 Nm |
| Md max.: | 0,6 Nm |
| min. cross-section UL: | AWG 24 |
| max. cross-section UL: | AWG14 |
| torque (UL): | 5,0 - 7,0 lb-in |
| permitted degree of polution: | 2 |
| for UL feeder circuits >250V | |
