for UL feeder circuits >250V

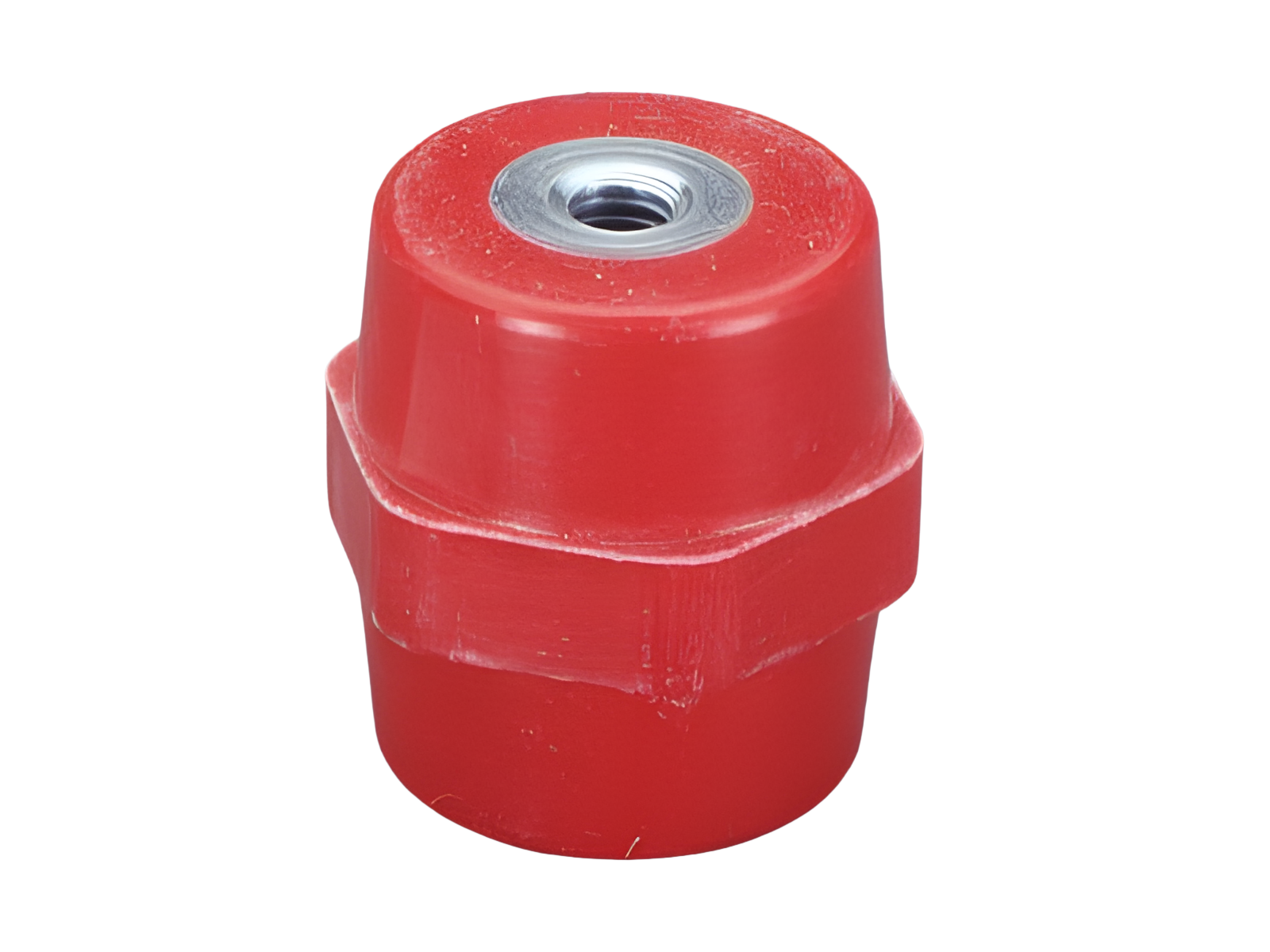

The picture may show a similar product.
Référence 05787000
isolateur
avec filetage interne des deux côtés, longueur sur plat 46
M10 x 45
| Groupe de produits | 06 |
| Sous-groupe | 89 |
| Dimensions de l'emballage | 20 |
| EAN | 4021267057879 |
| ECLASS 6.1 | 27400607 |
| ECLASS 7.1 | 27400607 |
| ETIM 4.0 | EC001166 |
| ETIM 5.0 | EC001166 |
Normes
IEC 61439-1:2020
Homologation CCC: no certification required
| Details IEC | |
| Normes | |
| IEC 61439-1:2020 |
| Electrical data IEC | |
| Tension assignée (IEC) CA: | 2000 V |
| Tension assignée (IEC) CC: | 2000 V |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 0,0 W.
(The power dissipation at full load would be 0,0 W.)
| Charactéristiques mécaniques | |
| L x H x P: | 46 x 46 x 45 |
| Poids: | 15,3 kg/100 |
| Points de raccordement | |
| female thread | |
| M10 | |
|
Conseils |
The installation of the insulator is required on a flat surface on both sides. The fixing screw must be fixed on both surfaces. |
| short-circuit withstandability: | no data |
