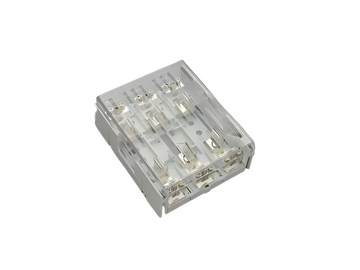

The picture may show a similar product.
Référence 03229000
fusible 80 A
-Mersen-
600 V AC, time delay
Class J, 29x118
| Groupe de produits | 22 |
| Sous-groupe | 33 |
| Dimensions de l'emballage | 5 |
| EAN | 4021267032296 |
| ECLASS 6.1 | 27142002 |
| ECLASS 7.1 | 27142002 |
| ETIM 4.0 | EC002704 |
| ETIM 5.0 | EC002704 |
Normes
UL 248-8
UL 248-1
Approbations
UL
for UL feeder circuits >250V
Type: AJT
UL file: E2137, UL category (for USA): JDDZ_ https://www.ul.com
| Taille: | Class J 100 A |
| Details IEC | |
| Normes | |
| operation class | time delay |
| Details UL | |
| Normes | |
|
UL 248-8
UL 248-1 |
| for UL feeder circuits >250V |
| Electrical data UL | |
| rated current (UL): | 80 A |
| rated voltage (UL) AC: | 600 V |
| rated frequency (UL): | 50 / 60 Hz |
| rated voltage (UL) DC: | 400 V |
| Icc: | 200 kA |
| SCCR: | DC 100 kA |
| Charactéristiques mécaniques | |
| L x H x P: | 29 x 117 x 29 |
| Poids: | 14,5 kg/100 |
| for UL feeder circuits >250V |
