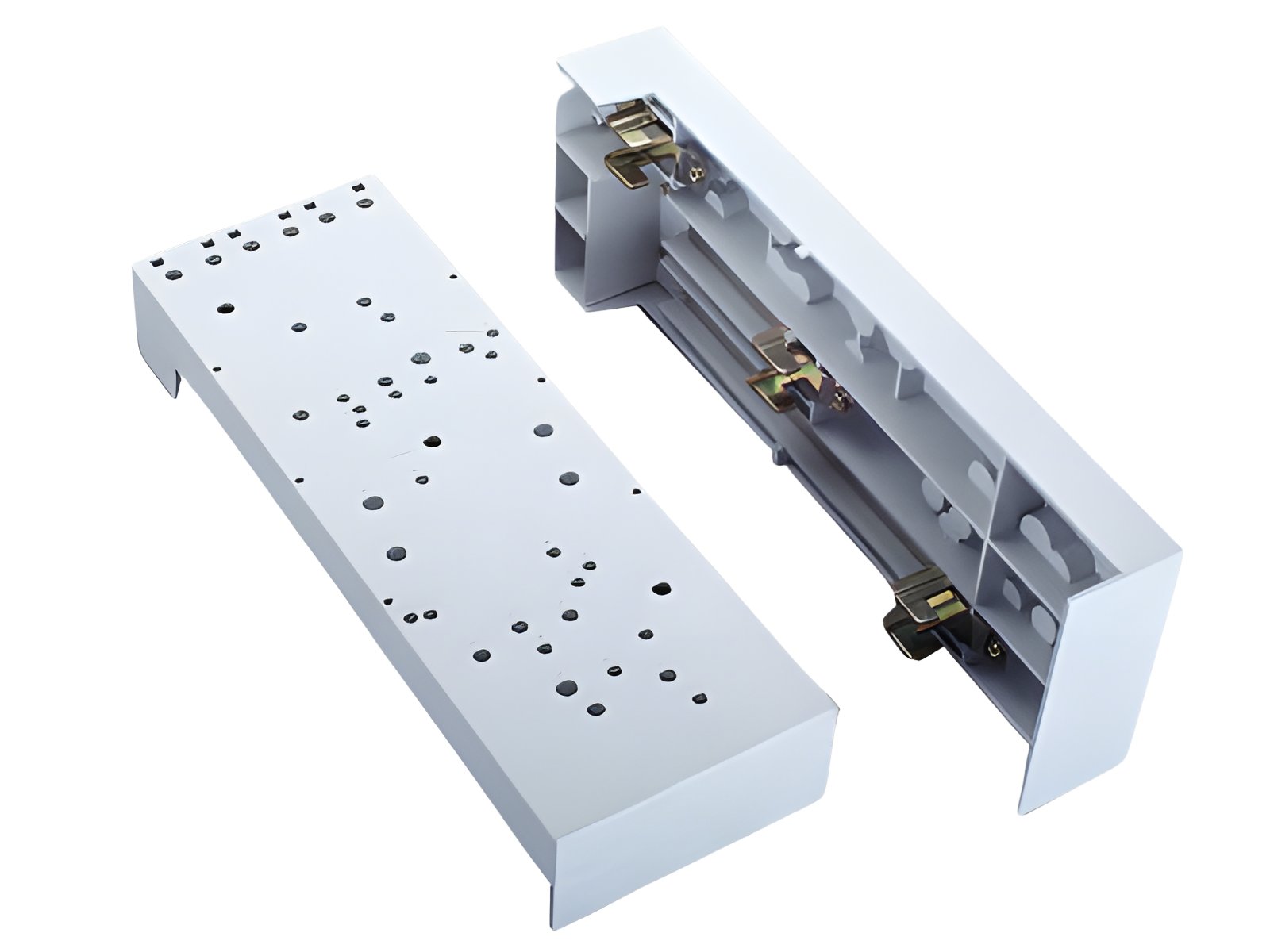

The picture may show a similar product.
Référence 32001000
EQUES®100Energy
adaptateur de jeu de barres, 160 A
108 x 315
pour jeux de barres 30, 40, 50, 60 x 10
Système
100Energy
| Groupe de produits | 05 |
| Sous-groupe | 45 |
| Dimensions de l'emballage | 1 |
| EAN | 4021267320010 |
| catalog page | 2015 : 3.1 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Normes
IEC 61439-1:2011
Approbations
EAC
EAC Type: EQ
Homologation CCC: no certification required
| Details IEC | |
| Normes | |
| IEC 61439-1:2011 |
| Electrical data IEC | |
| Courant assigné (IEC): | 160 A |
| Tension assignée (IEC) CA: | 690 V |
| rated isolation voltage Ui AC: | 800 V |
| Tension assignée de tenue aux chocs Uimp: | 6 kV |
| short-circuit withstandability: | the short-circuit capacity of the combination of adapter and MCCB depends on the MCCB |
power dissipation of the article:
The power dissipation at a typical load of 80 % results to 11,4 W.
(The power dissipation at full load would be 17,8 W.)
| Charactéristiques mécaniques | |
| L x H x P: | 108 x 315 x 49 |
| Poids: | 87,7 kg/100 |
| pour jeux de barres: | 30, 40, 50, 60 x 10 |
Conseils
For safe mechanical and electrical connection of the devices to the busbar. Mounting options for DIN rails and various switchgear, for hole pattern see downloads: 2D CAD symbol
