Connection kit LTL NH1-3 for RJ12 cables (37901)

La imagen puede mostrar un producto similar.

Descripción

Part No.: 37901 000A

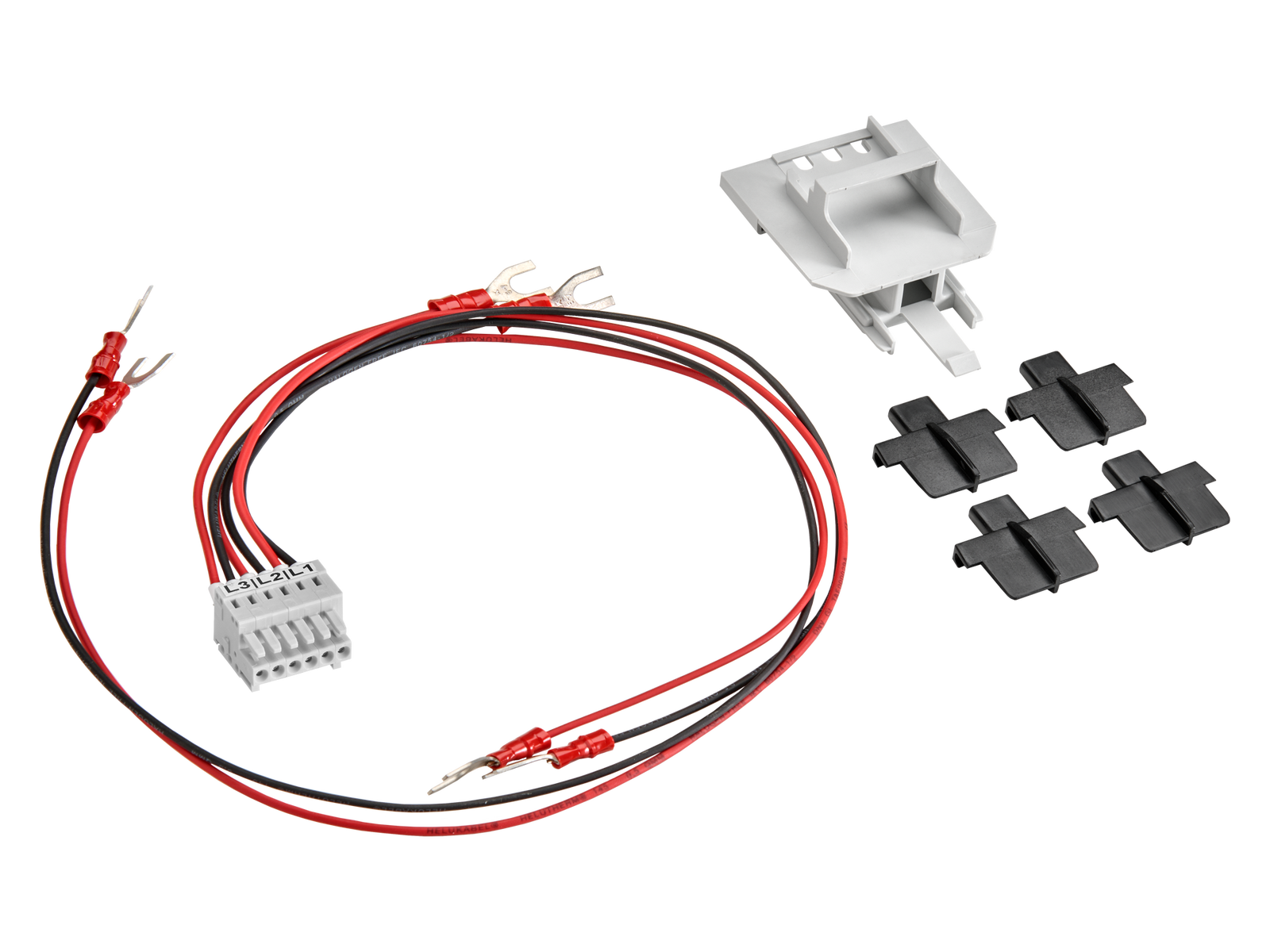

Connection kit LTL NH1-3 for RJ12 cables

spring strip with 6 x 0.5 mm² cables

for internal wiring of the transformers and connection of the RJ12 cable

disponible en breve

grupo de producto 12
subgrupo 70
embalaje 1
EAN 4021267376017
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Homologaciónes

Normas

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Datos técnicos

datos IEC
Normas
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

datos eléctricos

disipación de potencia del articulo:

The power dissipation at a typical load of 80 % results to 0,0 W.

(The power dissipation at full load would be 0,0 W.)

datos mecánicos
peso: 2,8 kg/100

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF) - draft

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf) - draft

| Text for specification - standard version (*.rtf) - draft

Se utiliza para

37535 000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 1 polo conmutable
versión alta con abrazadera tipo V 95 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 150 A / 333 mV, accuracy class 0.5, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas

37535 000B
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 1 polo conmutable
versión alta con abrazadera tipo V 95 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 150 A / 333 mV, accuracy class 1, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas

37700 000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 3 polos conmutables
versión alta con tornillo M8
cuerpo del borne de aluminio, pieza de presión de latón
prewired with 3x measuring transformers 150 A / 333 mV, accuracy class 0.5, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
NEW
Mas

37530 000B
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 3 polos conmutables
versión alta con abrazadera tipo V 95 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 150 A / 333 mV, accuracy class 1, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas

37530 000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 3 polos conmutables
high version with V-clamp 16-120 mm²
cuerpo del borne de aluminio, pieza de presión de acero
prewired with 3x measuring transformers 150 A / 333 mV, accuracy class 0.5, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas
