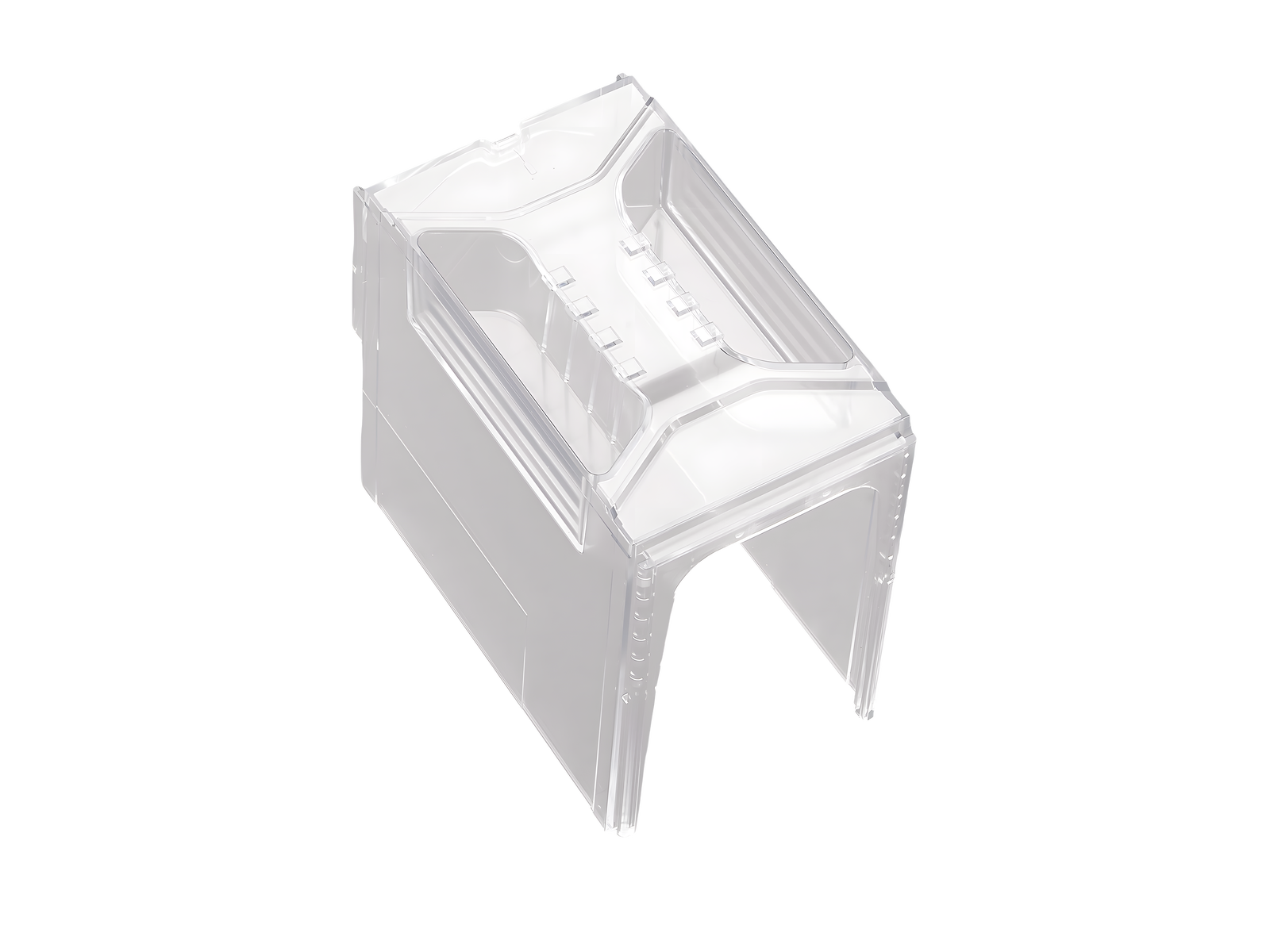

cubierta del área de conexión (33733)

La imagen puede mostrar un producto similar.

Descripción

Part No.: 33733000A

cubierta del área de conexión

universal para carriles NH de talla 1 - 3 y bloque de terminales de 800 A

talla 1-3

sistema

185Power

grupo de producto 12
subgrupo 70
embalaje 1
EAN 4021267337339
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Homologaciónes

Normas

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Datos técnicos

datos IEC
Normas
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
datos mecánicos
An x A x P: 100 x 166 x 150
peso: 30,0 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)
