RJ12 lead with pin connector strip Wago (37907)

La imagen puede mostrar un producto similar.

Descripción

Part No.: 37907 000A

RJ12 lead with pin connector strip Wago

with lead RJ12, 0.3 m

to connect prewired in-line fuse switch-disconnectors with the current extension module 37100

NEW

grupo de producto 12
subgrupo 70
embalaje 1
EAN 4021267379070
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Homologaciónes

Normas

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Datos técnicos

datos IEC
Normas
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

datos eléctricos

disipación de potencia del articulo:

The power dissipation at a typical load of 80 % results to 0,0 W.

(The power dissipation at full load would be 0,0 W.)

datos mecánicos
peso: 1,9 kg/100

Application notes

not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

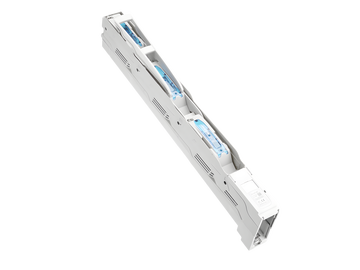

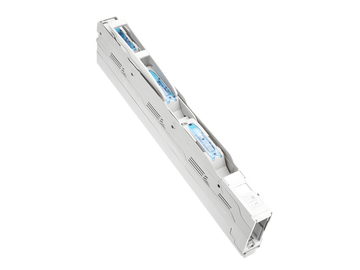

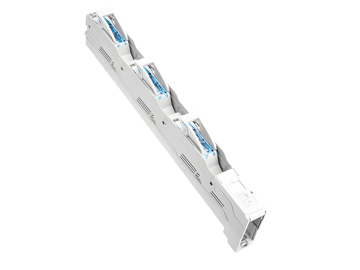

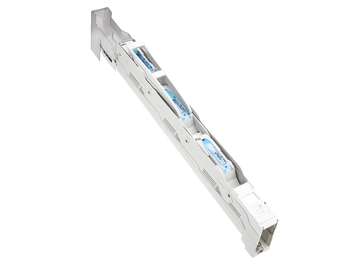

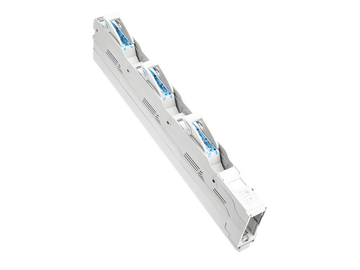

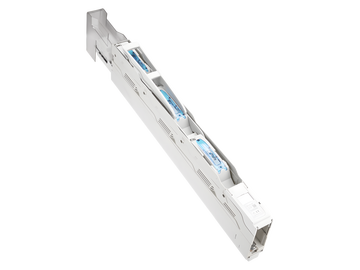

Se utiliza para

37702 000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 400 A
talla 2, 1 polo conmutable
tornillo M12
prewired with 3x measuring transformers 400 A / 333 mV, accuracy class 1, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas

37717 000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 400 A
talla 2, 1 polo conmutable
tornillo M12
prewired with 3x measuring transformers 400 A / 333 mV, accuracy class 1, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
NEW
Mas

37577 000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 250 A
talla 1, 1 polo conmutable
abrazadera tipo V 50-300 mm²
cuerpo del borne de acero, pieza de presión de acero
prewired with 3x measuring transformers 250 A / 333 mV, accuracy class 1, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas

37532 000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 400 A
talla 2, 3 polos conmutables
V-clamp 50-300 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 400 A / 333 mV, accuracy class 1, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas

37536 000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 250 A
talla 1, 1 polo conmutable
abrazadera tipo V 35-240 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 250 A / 333 mV, accuracy class 1, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas

37538 000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 600 A
talla 3, 1 polo conmutable
V-clamp 50-300 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 600 A / 333 mV, accuracy class 1, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas

37533 000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 600 A
talla 3, 3 polos conmutables
V-clamp 50-300 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 600 A / 333 mV, accuracy class 1, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas

37526 000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 250 A
talla 1, 1 polo conmutable
abrazadera tipo V 35-240 mm²
cuerpo del borne de aluminio, pieza de presión de latón
prewired with 3x measuring transformers 250 A / 333 mV, accuracy class 1, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
NEW
Mas

37531 000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 250 A
talla 1, 1 polo conmutable
abrazadera tipo V 35-240 mm²
terminal body alu, pressure piece brass
prewired with 3x measuring transformers 250 A / 333 mV, accuracy class 1, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas

37537 000B
QUADRON®185Power
interruptor-seccionador fusible vertical, 400 A
talla 2, 1 polo conmutable
abrazadera tipo V 50-300 mm²
cuerpo del borne de aluminio, pieza de presión de latón
prewired with 3x measuring transformers 400 A / 333 mV, accuracy class 0.5, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
NEW
Mas

37537 000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 400 A
talla 2, 1 polo conmutable
abrazadera tipo V 50-300 mm²
cuerpo del borne de aluminio, pieza de presión de latón
prewired with 3x measuring transformers 400 A / 333 mV, accuracy class 1, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
NEW
Mas

37578 000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 400 A
talla 2, 1 polo conmutable
abrazadera tipo V 50-300 mm²
cuerpo del borne de acero, pieza de presión de acero
prewired with 3x measuring transformers 400 A / 333 mV, accuracy class 1, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
NEW
Mas

37527 000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 400 A
talla 2, 1 polo conmutable
abrazadera tipo V 35-240 mm²
cuerpo del borne de aluminio, pieza de presión de latón
prewired with 3x measuring transformers 400 A / 333 mV, accuracy class 1, with 6-pole plug connection
para barras: 30, 40, 60, 80, 100, 120 x 10
NEW
Mas
