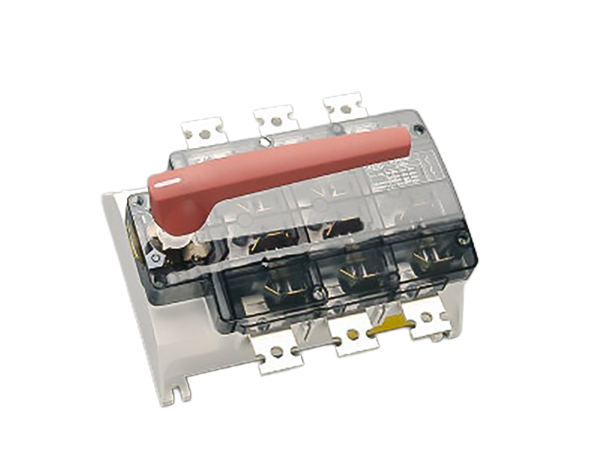

La imagen puede mostrar un producto similar.
Part No.: 33357000
CAPUS®Panel
interruptor-seccionador de 3 polos
tornillo M10, maneta roja
630 A
for mounting plate
sistema
Panel
ventajas del producto
double-breaking main contacts,
visible separation sections,
user-independent switching,
assembly and connection material contained in scope of delivery
| grupo de producto | 14 |
| subgrupo | 09 |
| embalaje | 1 |
| EAN | 4021267333577 |
| ECLASS 6.1 | 27371403 |
| ECLASS 7.1 | 27371403 |
| ETIM 4.0 | EC000216 |
| ETIM 5.0 | EC000216 |
Normas
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
homologaciónes
IEC (CB)
tipo: LTS-630
| datos IEC | |
| Normas | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
| datos electricos IEC | |
| intensidad de corriente nominal (IEC): | 630 A |
| tensión nominal (IEC) AC: | 500 V |
| tensión nominal de aislamiento Ui AC: | 1000 V |
| tensión de pico Uimp: | 12 kV |
| Utilisation category AC (IEC 60947-3) : | AC-23B (500V) AC-22B (500V) AC-21B (500V) |
| aprobado con fusibles de característica: | gG |
| resistencia a corriente de pico en tiempo determinado Icw (1,0 s) max.: | 15 kA |
| capacidad de cerrar a cortocircuito: | 30 kA |
disipación de potencia del articulo:
The power dissipation at a typical load of 80 % results to 81,3 W.
(The power dissipation at full load would be 127,0 W.)
| Switching capacity/utilisation categories AC-23B (500V); AC-22B (500V); AC-21B (500V) Mechanical lifespan (switching operations) 7000 Rated short-circuit making capacity 30kA |
|
| conv. therm. current in housing 630 A, horizontal installation (adjacent poles) encapsulated 504 x 378 x 302 mm 630 A, vertical installation (poles beneath each other) encapsulated 500 x 500 x 300 mm |
|
| Shock protection at front with terminal space cover IP40 |
| datos mecánicos | |
| An x A x P: | 270 x 237 x 197 |
| peso: | 544,0 kg/100 |
| Polaridad: | 3 polos |
| Mounting: | for mounting plate |
Type of fastening: screw-on
connection screw (clamps and wedge clamp terminal can be retrofitted),
screw connection
M10, 28Nm ± 10% torque,
clamp connection for lam. Cu
terminal space 21x1-13mm,
8-10Nm torque
wedge clamp connection, single
cross-section 120 - 240mm², s(r), f, f+AE** Cu - Al*, 8-10Nm torque
wedge clamp connection, double
cross-section 2 x 120 - 185mm², s(r), f, f+AE** Cu, 8-10Nm torque
* Aluminium conductors must be prepared before connection in accordance with the pertinent technical recommendations. The connections are to be checked at regular intervals and serviced not later than every 6 months.
** reduction in the max. conductor cross-sections may be required.
| puntos de apriete | |
| Not suitable for aluminium cables ! | |
|
Tornillo M10 : |
|
| Not suitable for aluminium cables ! | |
|
Notas |
When installing a cover, the switch-disconnector on the housing must not be closed, the safety instructions for the Emergency Stop switch must be observed. |
