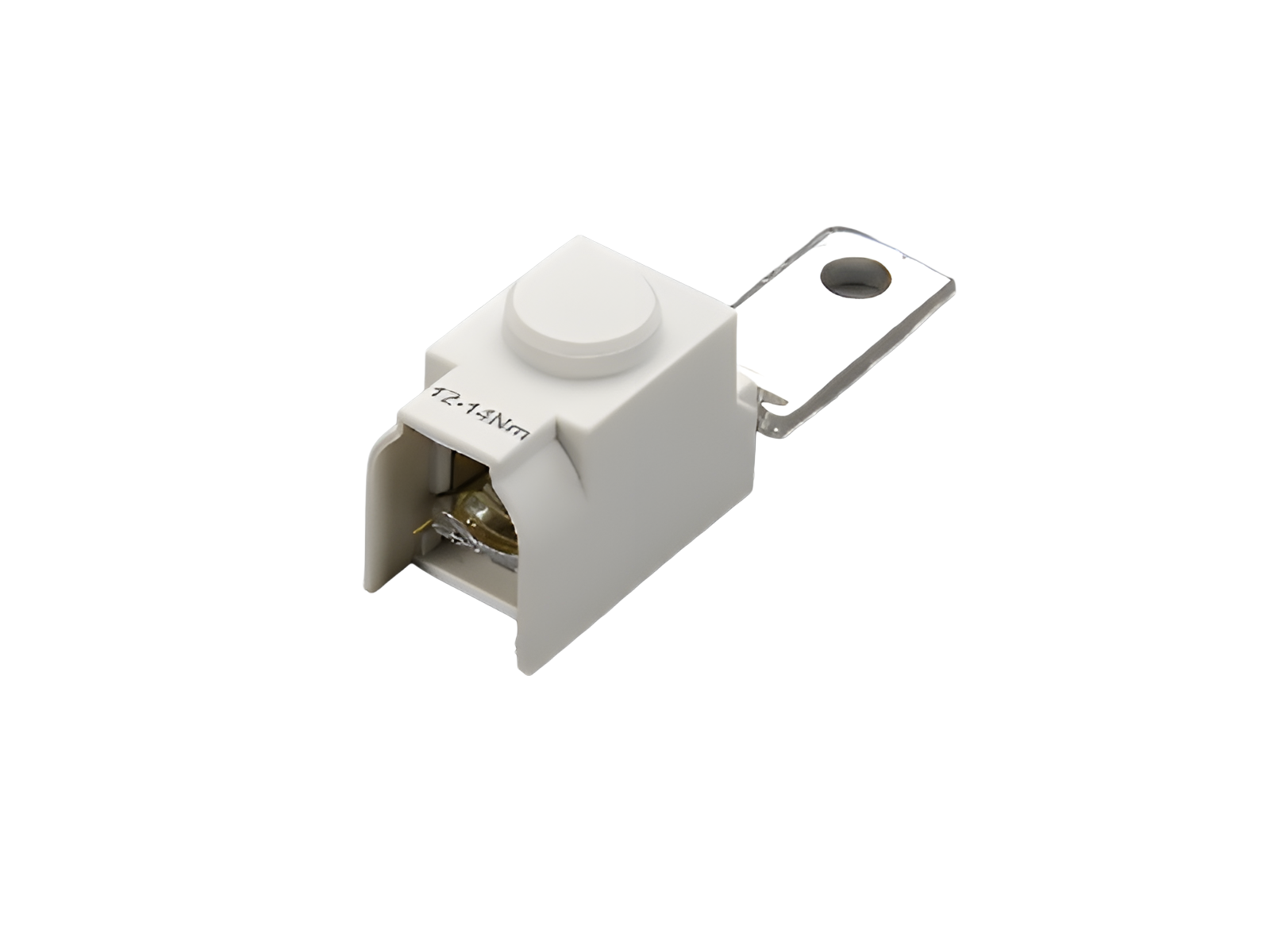

La imagen puede mostrar un producto similar.
Part No.: 33378000
borne de conexión, conexión frontal
para peine de 3 polos de 35 mm², adecuado para el seccionador NH de talla 00 con conexión atornillada
25 - 95 mm²
ventajas del producto
Shock protection: as per DIN EN 50274/BGV A3
| grupo de producto | 09 |
| subgrupo | 51 |
| embalaje | 3 |
| EAN | 4021267333782 |
| ECLASS 6.1 | 27142190 |
| ECLASS 7.1 | 27142190 |
| ETIM 4.0 | EC002498 |
| ETIM 5.0 | EC002498 |
Normas
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
| datos IEC | |
| Normas | |
|
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only |
datos eléctricos
disipación de potencia del articulo:
The power dissipation at a typical load of 80 % results to 0.0 W.
(The power dissipation at full load would be 0.0 W.)
| rated insulation voltage: 800V at pollution degree 2; 690V at pollution degree 3 | |
| Conductor connection: Cu 25-95mm² s(r); Cu 35-95mm² s(s); Cu 25-70mm² f+AE | |
| Degree of protection: IP 20 at front in combination NH-LTS, comb-type busbar and connecting terminal possible. Degree of protection near terminal depends on installation. |
| datos mecánicos | |
| An x A x P: | 23 x 32 x 86 |
| peso: | 12.1 kg/100 |
| puntos de apriete | |
| min. cross-section: | 25 mm² |
| max. cross-section: | 95 mm² |
|
Notas |
Recommended installation situation: |
