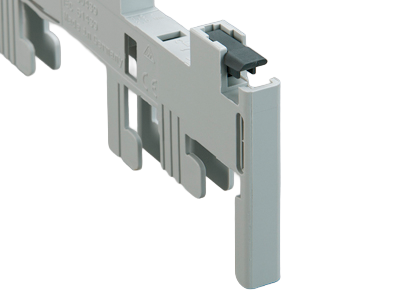

La imagen puede mostrar un producto similar.
Part No.: 32632000
módulo N
borne de 16 mm²
9 x 160
para barras 12 x 5
sistema
30Compact 5P
ventajas del producto
The device can be locked onto the busbar system in a separating position. In this way, complete units 1P+N or 3P+N can be prepared for an isolation test without the leads having to be disconnected. (see assembly manual)
| grupo de producto | 05 |
| subgrupo | 44 |
| embalaje | 12 |
| EAN | 4021267326326 |
| ECLASS 6.1 | 27370304 |
| ECLASS 7.1 | 27370304 |
| ETIM 4.0 | EC001531 |
| ETIM 5.0 | EC001531 |
Normas
IEC 61439-1:2020
Homologación CCC: no es obligatoria la certificación
| datos IEC | |
| Normas | |
| IEC 61439-1:2020 |
| datos electricos IEC | |
| tensión nominal (IEC) AC: | 690 V |
| tensión nominal de aislamiento Ui AC: | 690 V |
disipación de potencia del articulo:
The power dissipation at a typical load of 80 % results to 0.5 W.
(The power dissipation at full load would be 0.8 W.)
| Connecting terminal 1.5 - 16mm² |
| datos mecánicos | |
| An x A x P: | 9 x 160 x 114 |
| peso: | 4.4 kg/100 |
| para barras: | 12 x 5 |
|
Notas |
The device cannot be locked onto the busbar system (operating condition) and must always be plugged into module adapters. |
