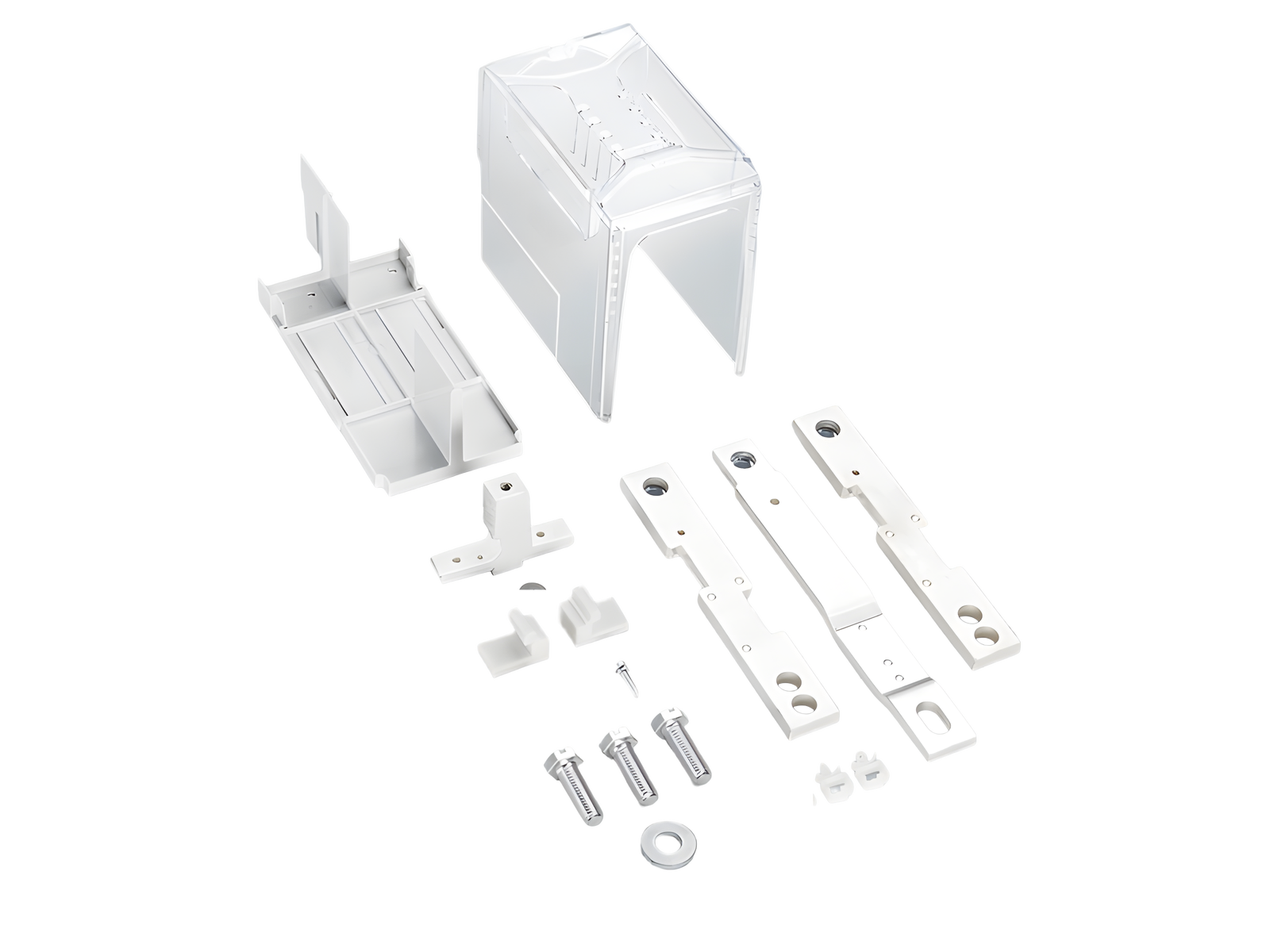

módulo de transformador de corriente universal (33762)

La imagen puede mostrar un producto similar.

Descripción

Part No.: 33762000A

módulo de transformador de corriente universal

para el montaje en el área de conexión

talla 1-3

sistema

185Power

grupo de producto 18
subgrupo 70
embalaje 1
EAN 4021267337629
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Homologaciónes

Normas

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Datos técnicos

datos IEC
Normas
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Quadron®185Power Speed:
- max. 600 A
- increase of power dissipation by 30%

Quadron®185Power, connection bottom:
- max. 630 A
- increase of power dissipation by 35%

Crito®185Power connection rail, connection bottom:
- max. 750 A
- increase of power dissipation by 28%
datos mecánicos
peso: 170.0 kg/100

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| Dimensioned drawing

| Dimensioned drawing  #2

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Accesorios

33787000
transformador de corriente de 600 A / 5 A, con declaración de conformidad
5 VA/clase 0,5
talla 1-3
phase-out product
Mas

Se utiliza para

33708000A
QUADRON®185Power
base vertical para fusibles NH, 630 A
talla 3
tornillo M12
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33706000A
QUADRON®185Power
base vertical para fusibles NH, 250 A
talla 1
tornillo M12
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33716000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 250 A
talla 1, 1 polo conmutable
tornillo M12
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33722000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 400 A
talla 2, 3 polos conmutables, con control de fusibles
tornillo M12
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33702000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 400 A
talla 2, 3 polos conmutables
tornillo M12
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33721000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 250 A
talla 1, 3 polos conmutables, con control de fusibles
tornillo M12
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33723000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 630 A
talla 3, 3 polos conmutables, con control de fusibles
tornillo M12
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33717000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 400 A
talla 2, 1 polo conmutable
tornillo M12
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33701000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 250 A
talla 1, 3 polos conmutables
tornillo M12
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33718000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 630 A
talla 3, 1 polo conmutable
tornillo M12
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33638000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 2
con control de fusibles
conexión inferior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas

33633000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 2
conexión superior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas

33636000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 1
con control de fusibles
conexión inferior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas

33640000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 3
con control de fusibles
conexión inferior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas

33631000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 1
conexión superior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
phase-out product
Mas

33632000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 2
conexión inferior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas

33635000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 3
conexión superior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas

33634000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 3
conexión inferior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas

33703000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 630 A
talla 3, 3 polos conmutables
tornillo M12
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33630000A
QUADRON®185Power Speed
seccionador vertical NH, talla de fusible 1
conexión inferior M12
double-breaking
para barras: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
Mas
