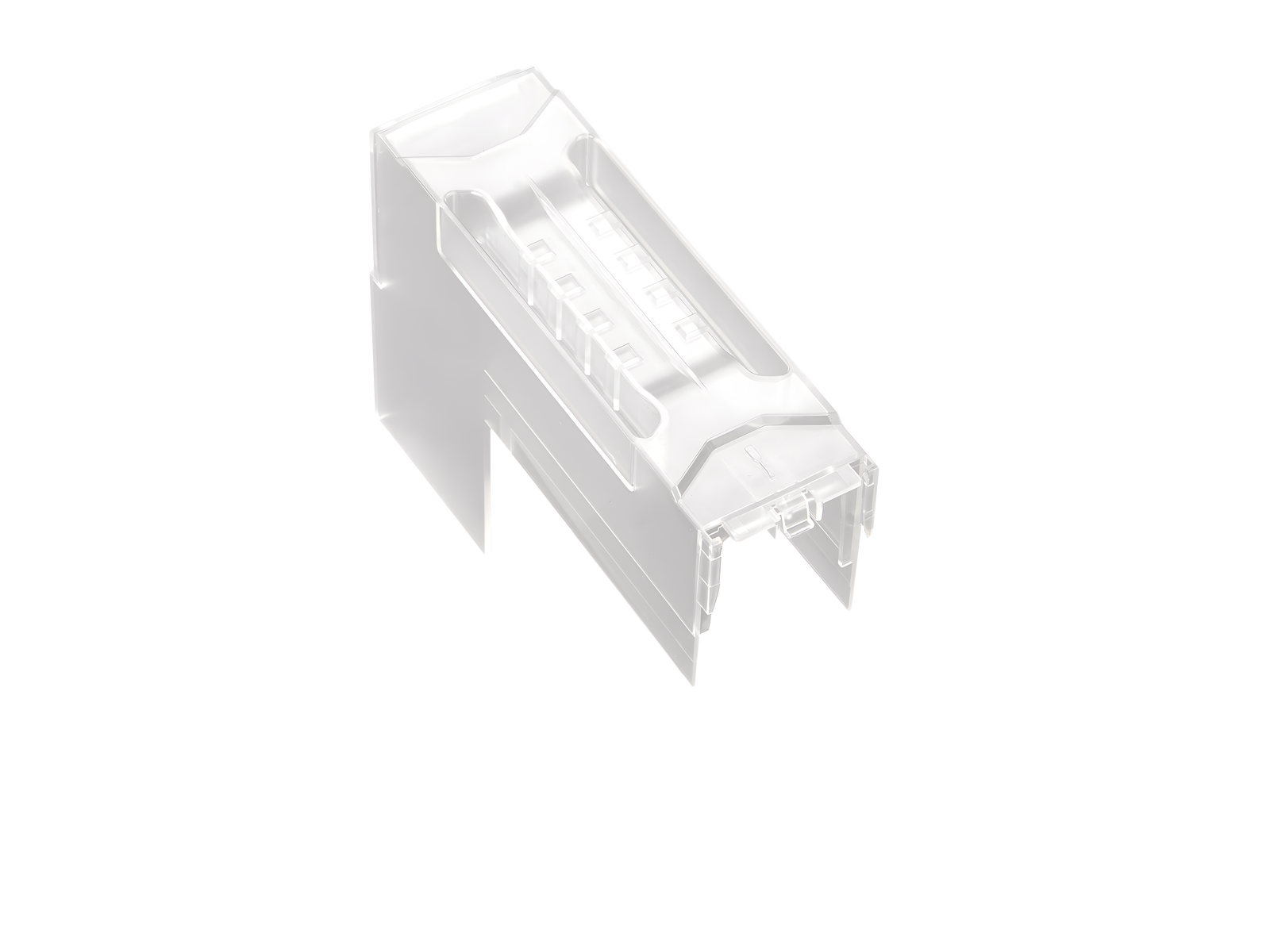

cubierta del área de conexión, modelo alto, conexión superior (33726)

La imagen puede mostrar un producto similar.

Descripción

Part No.: 33726000A

cubierta del área de conexión, modelo alto, conexión superior

für 33700, 33715, 33720, 33770, 33771, 33772

talla 00

sistema

185Power

grupo de producto 12
subgrupo 70
embalaje 1
EAN 4021267337261
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Homologaciónes

Normas

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Datos técnicos

datos IEC
Normas
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
datos mecánicos
peso: 13.4 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Se utiliza para

33770000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 3 polos conmutables
high version with box terminal 70 mm²
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33715000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 1 polo conmutable
high version with screw M8
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33772000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 1 polo conmutable
high version with box terminal 70 mm²
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33700000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 3 polos conmutables
high version with screw M8
para barras: 30, 40, 60, 80, 100, 120 x 10
Mas

33592000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
with extended touch protection IP20 when open
talla 00, 1 polo conmutable
high version with box terminal 70 mm²
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas

33591000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
with extended touch protection IP20 when open
talla 00, 1 polo conmutable
high version with screw M8
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas

33590000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
high version with box terminal 70 mm²
talla 00, 3 polos conmutables
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas

37700000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
talla 00, 3 polos conmutables
high version with screw M8
Klemmengehäuse Alu, Druckstück Messing
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas

33589000A
QUADRON®185Power
interruptor-seccionador fusible vertical, 160 A
with extended touch protection IP20 when open
talla 00, 3 polos conmutables
high version with screw M8
para barras: 30, 40, 60, 80, 100, 120 x 10
disponible en breve
Mas
