longitudinal busbar connector (01480)

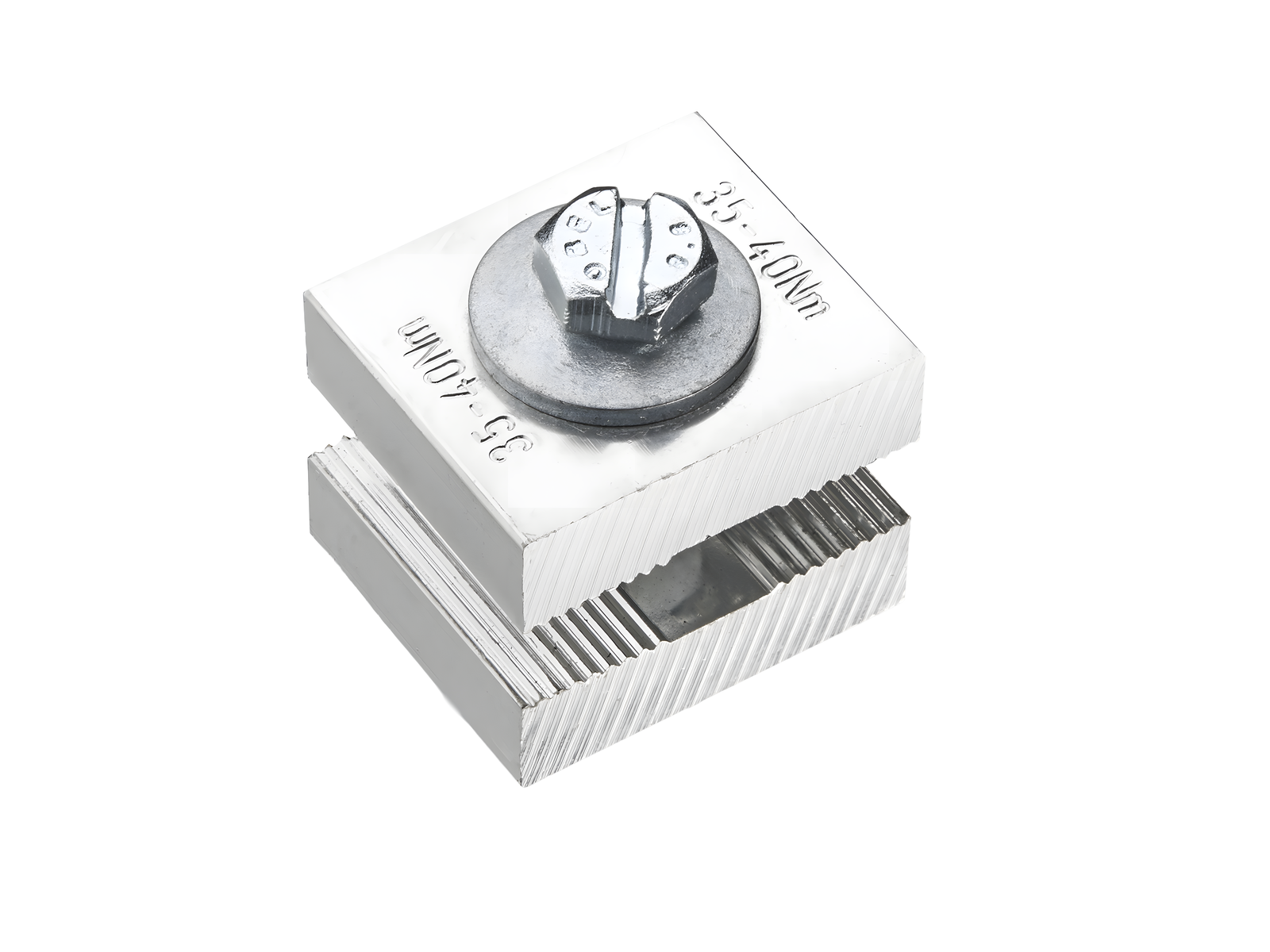

The picture may show a similar product.

Description

Part No.: 01480000A

longitudinal busbar connector

40 mm

for busbars 30, 40, 80, 100 x 10

System

185Power

Product group	07
Subgroup	33

pack size	3
EAN	4021267014803

ECLASS 6.1	27400606
ECLASS 7.1	27400606
ETIM 4.0	EC000713
ETIM 5.0	EC000713

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

for UL feeder circuits >250V

type number: CR185-C40

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020

Electrical data IEC
rated voltage (IEC) AC:	690 V

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

max. permitted voltage (IEC) AC:	1000 V
max. permitted voltage (IEC) DC:	1500 V
current capacity (IEC) max.:	750 A

the busbar connector was tested in an arrangment where the busbar supports at the connection of the 2 systems had a spacing of 200 mm

test conditions: 100x10 - 100x10 (1x 01480 + 1x 01481)
peak withstand current I_pk: 106 kA
I_cw (1,0 s): 50 kA

test conditions: 80x10 - 80x10 (2x 01480)
peak withstand current I_pk: 106 kA
I_cw (1,0 s): 50 kA

test conditions: 40x10 - 40x10 (1x 01480)
peak withstand current I_pk: 81 kA
I_cw (1,0 s): 34 kA

test conditions: 30x10 - 30x10 (1x 01480)
peak withstand current I_pk: 81 kA
I_cw (1,0 s): 34 kA

Details UL
Standards
UL 508

for UL feeder circuits >250V

Electrical data UL
rated current (UL):	700 A
rated voltage (UL) AC:	1000 V
rated frequency (UL):	50 / 60 Hz
rated voltage (UL) DC:	1000 V

SCCR unprotected max.:	42 kA
	3 cycles (without OPD) @ 1000 V AC

Mechanical data
W x H x D:	47 x 40 x 49
weight:	48.0 kg/100
for busbars:	30, 40, 80, 100 x 10

permitted busbar displacement:	1
permitted spacing between systems:	11 - 14 mm

Terminal points
screw clamp connection
M10
screw drive:	SW17
Md min.:	35.0 Nm
Md max.:	40.0 Nm

Application notes

The insulation performance of the article depends on the installation conditions.
Reference	one terminal is required to connect busbars 30x10 one terminal is required to connect busbars 40x10 2 terminals are required to connect busbars 80x10 a terminal 01480 plus a terminal 01481are required to connect busbars 100x10


for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Accessories

01416000A

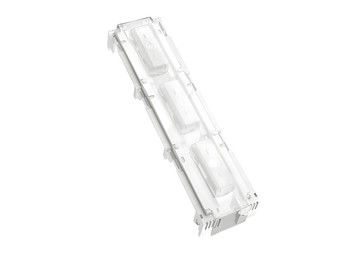

touch-safe protection shroud for longitudinal connectors
