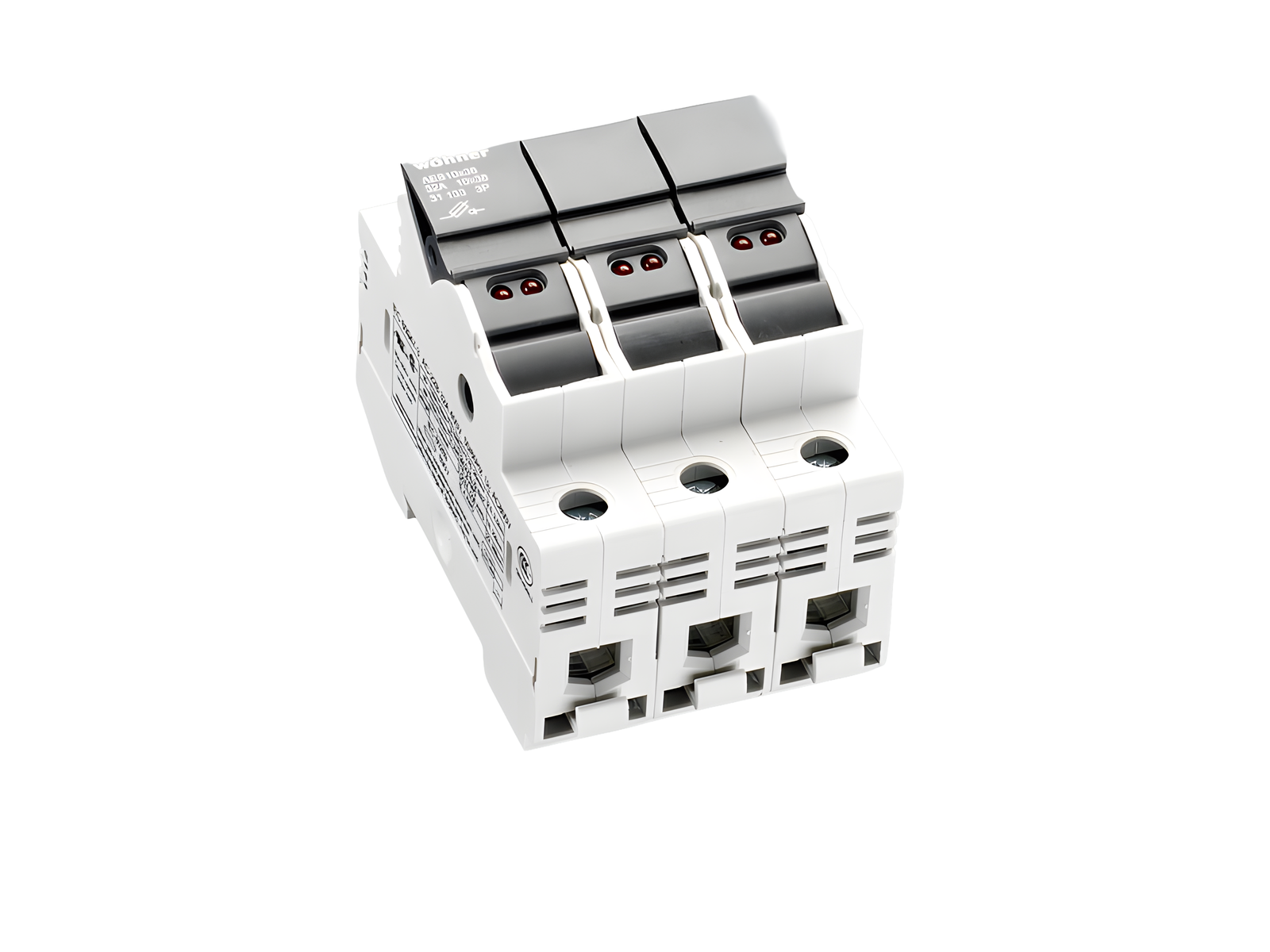

holder for cylindrical fuses, with LED (31133)

The picture may show a similar product.

Description

Part No.: 31133000

AMBUS®Panel

holder for cylindrical fuses, with LED

10 x 38 / 3P

32 A / 110 - 690 V

indication of a released fuse link

for mounting rail

System

Panel

Advantages of the product

large clamping range
holder for label

Product group 17
Subgroup 06
pack size 4
EAN 4021267311339
ECLASS 6.1 27142190
ECLASS 7.1 27142190
ETIM 4.0 EC002705
ETIM 5.0 EC002705

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

UL 4248-1

Approvals

IEC (CB) , CSA , UL , CCC

for UL feeder circuits >250V

type number: AES10x38

UL file: E230163, UL category (for USA): IZLT https://www.ul.com

UL file: E230163, UL category (for Canada): IZLT7 https://www.ul.com

CSA file: 110285, CSA class: 6225-01 https://directories.csa-international.org

CCC certificate: 2012010302581751

Technical data

for fuse links size: 10x38
fuse links acc. to standard: IEC / HD 60269-2
permitted power dissipation of the fuse-link: 3 W
Details IEC
Standards
IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only
Electrical data IEC
rated current (IEC): 32 A
rated voltage (IEC) AC: 690 V
min. operating voltage AC: 110 V
rated isolation voltage Ui AC: 690 V
rated surge voltage Uimp : 6 kV
Utilisation category AC (IEC 60947-3) : AC-22B (400V)
cond. short-circuit current with fuses (AC): 100 kA / 400 V (32A)
100 kA / 500 V (25A)
approved wth fuse links of operation class: gG

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 0.6 W.

(The power dissipation at full load would be 0.9 W.)

Supplementary data IEC

The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.
max. permitted voltage (IEC) AC: 725 V
further utilisation category AC (IEC 60947-3): AC-20B (1000 V) at pollution degree 2
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.
for fuse links as per IEC / EN 60269-2 with permitted rated power dissipations
up to max. 3W for gG/gL
up to max. 1.2W for aM
Details UL
Standards
UL 4248-1
for UL feeder circuits >250V
suitable for field-installed conductors
Electrical data UL
rated current (UL): 30 A
rated voltage (UL) AC: 600 V
min. operating voltage AC: 110 V
rated frequency (UL): 50 / 60 Hz
rated voltage (UL) DC: 600 V
for wires UL: Cu 75°C
SCCR: 100 kA
Mechanical data
W x H x D: 54 x 81 x 58
weight: 17.0 kg/100
poles: 3-pole
Mounting: for mounting rail
degree of protection: IP20
front degree of protection: IP20
Terminal points
cage clamp connection
screw drive: PZ2
wire stripping: 11 mm
min. cross-section: 0.75 mm²
max. cross-section: 25 mm²
Md min.: 2.0 Nm
Md max.: 2.5 Nm
Not suitable for aluminium cables !

min. cross-section UL: AWG 18
max. cross-section UL: AWG 4
torque (UL): 18 - 22 lb-in
for wires UL: Cu 75°C


for applications acc. to IEC / EN :
1 wire:
Cu 0,75 - 25 mm²
2 wires (of same cross-section):
Cu 0,75 - 10 mm²
flexible cables, directly or with wire-end ferrule
(flexible cables of max. cross-section may not fit when using wire-end ferrule)
Md 2,0 - 2,5 Nm / 18 - 22 lb.in.

for applications acc. to UL / CSA :
only Cu cables acc. to UL 486E
1 wire:
AWG 18 - AWG 8, Class B, Md 2,0 -2,5 Nm / 18 - 22 lb.in.
AWG 6 - AWG 4, Class C, Md 2,5 - 3,0 Nm / 22 - 26 lb.in.
2 wires (of identical cross-section):
AWG 18 - AWG 8, Class B, Md 2,0 - 2,5 Nm / 18 - 22 lb.in.
AWG 6, Class C, Md 2,0 - 2,5 Nm / 18 - 22 lb.in.

Application notes

Not suitable for aluminium cables !
A fuse-combination unit acc. to IEC 60947-3 can only be operated at a higher voltage than its rated voltage, if it is used as a fuse-disconnector without breaking capacity, up to its max. rated insulation voltage and labelled as such.

Reference

The indicator light signals that the fuse has tripped, but only when the closed fuse-holder is under voltage.
permitted power dissipation of the fuse-link: 3 W
for UL feeder circuits >250V
