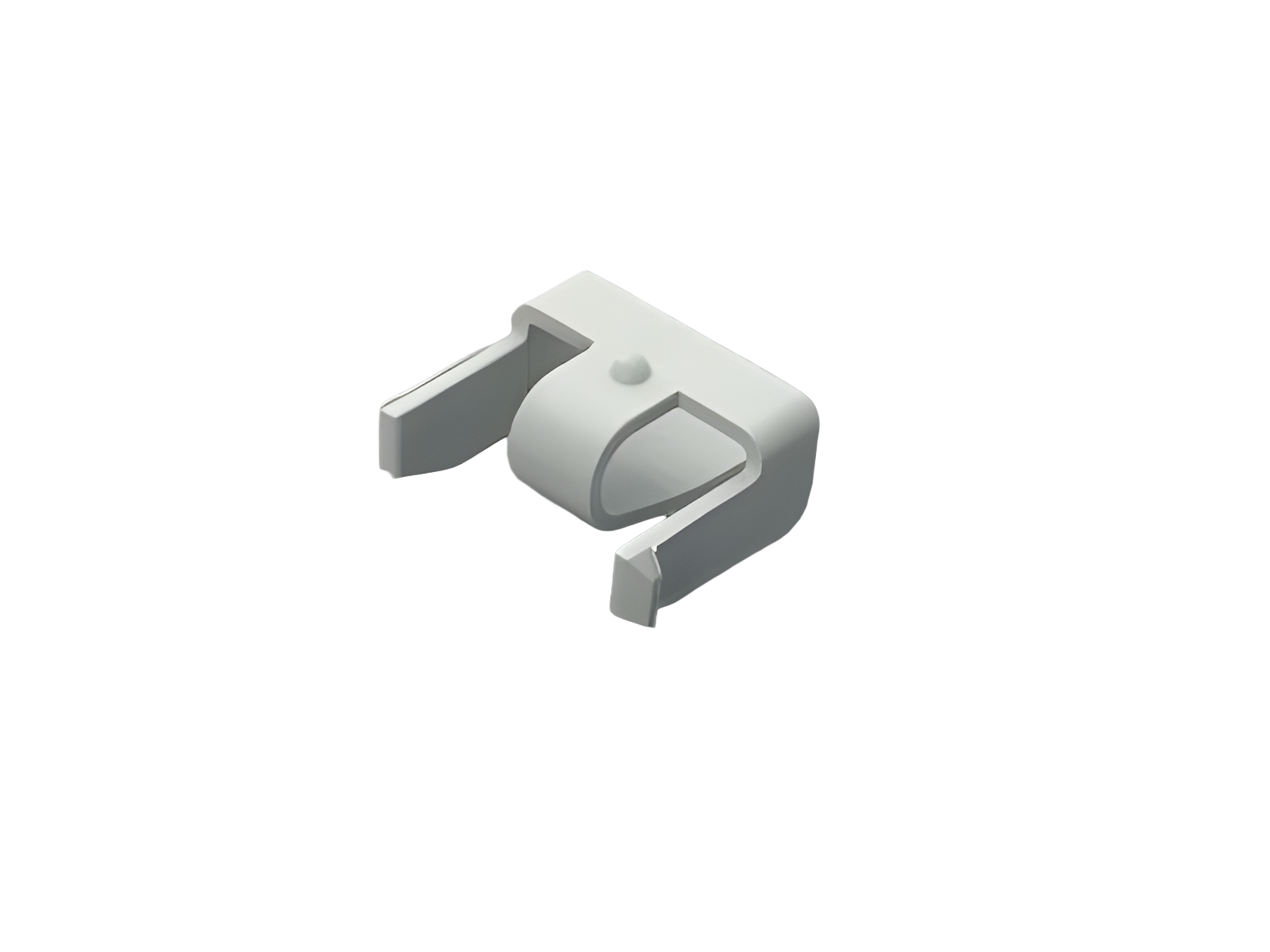

mounting clip for current transformator (33300)

The picture may show a similar product.

Description

Part No.: 33300 000

mounting clip for current transformator

for adapter SECUR®LeanStreamer

size 00

Product group	12
Subgroup	70

pack size	3
EAN	4021267333003

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Mechanical data
weight:	0.4 kg/100

Application notes


not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33728 000A
double adapter
for 2 devices size NH 00
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33286 000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70mm², with electron. fuse monitoring
size 00
for busbars: 30, 40, 50, 60 x 10
More

33235 000
in-line fuse switch-disconnector 160 A
screw M8 / clamp 70mm²
size 00
for busbars: 30, 40, 50, 60 x 10
More
