double-T section busbar 720 mm² (01831)

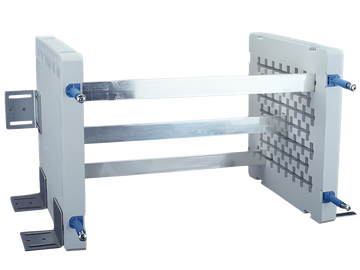

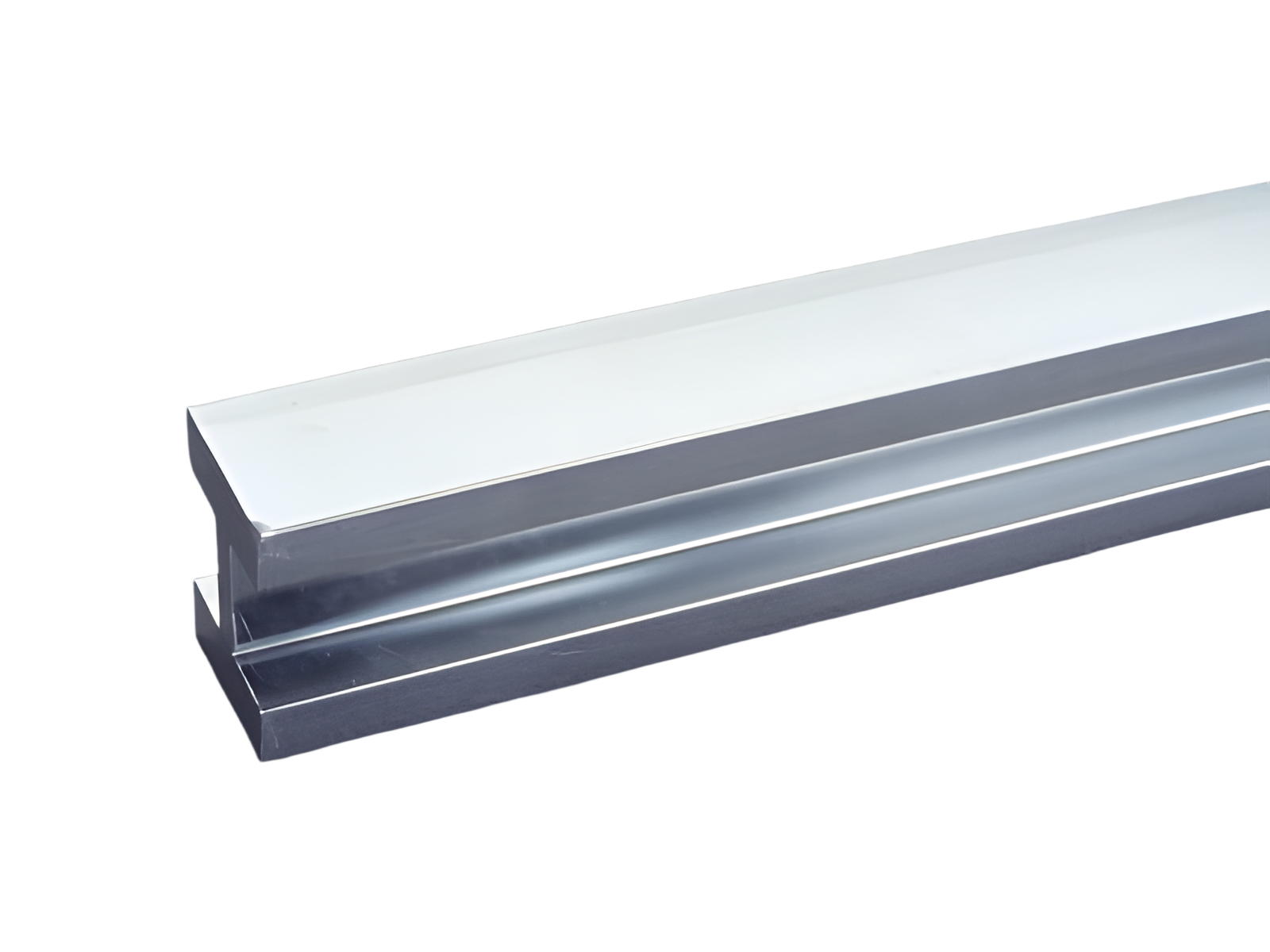

The picture may show a similar product.

Description

Part No.: 01831000

double-T section busbar 720 mm²

length 653 mm , tinned

System

60Classic, centre feed unit

Advantages of the product

Tin-plated Cu busbars considerably reduce the effort of preparing the contact points.
The Cu busbars are effective protected against aggressive media.

Product group	06
Subgroup	91

pack size	1
EAN	4021267018313

ECLASS 6.1	27370303
ECLASS 7.1	27370303
ETIM 4.0	EC001522
ETIM 5.0	EC001522

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

CSA , UL , DNV GL

for UL feeder circuits >250V

type number: H720-L

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 31.7 W.

(The power dissipation at full load would be 49.5 W.)

diagram current capacity (IEC)

Details UL
Standards
UL 508

for UL feeder circuits >250V

certified in the Woehner UL file E197039
current rating acc. to UL 508:	1400 A
Notice the rated voltage of the used busbar support in the application.

Mechanical data
W x H x D:	653 x 40 x 30
weight:	424.0 kg/100
cross-section:	720 mm²

Edge radius 0.5

Application notes

Please respect the insulation characteristics of the busbar support for your application.

short-circuit withstandability:	see product description of the used busbar support

for UL feeder circuits >250V
