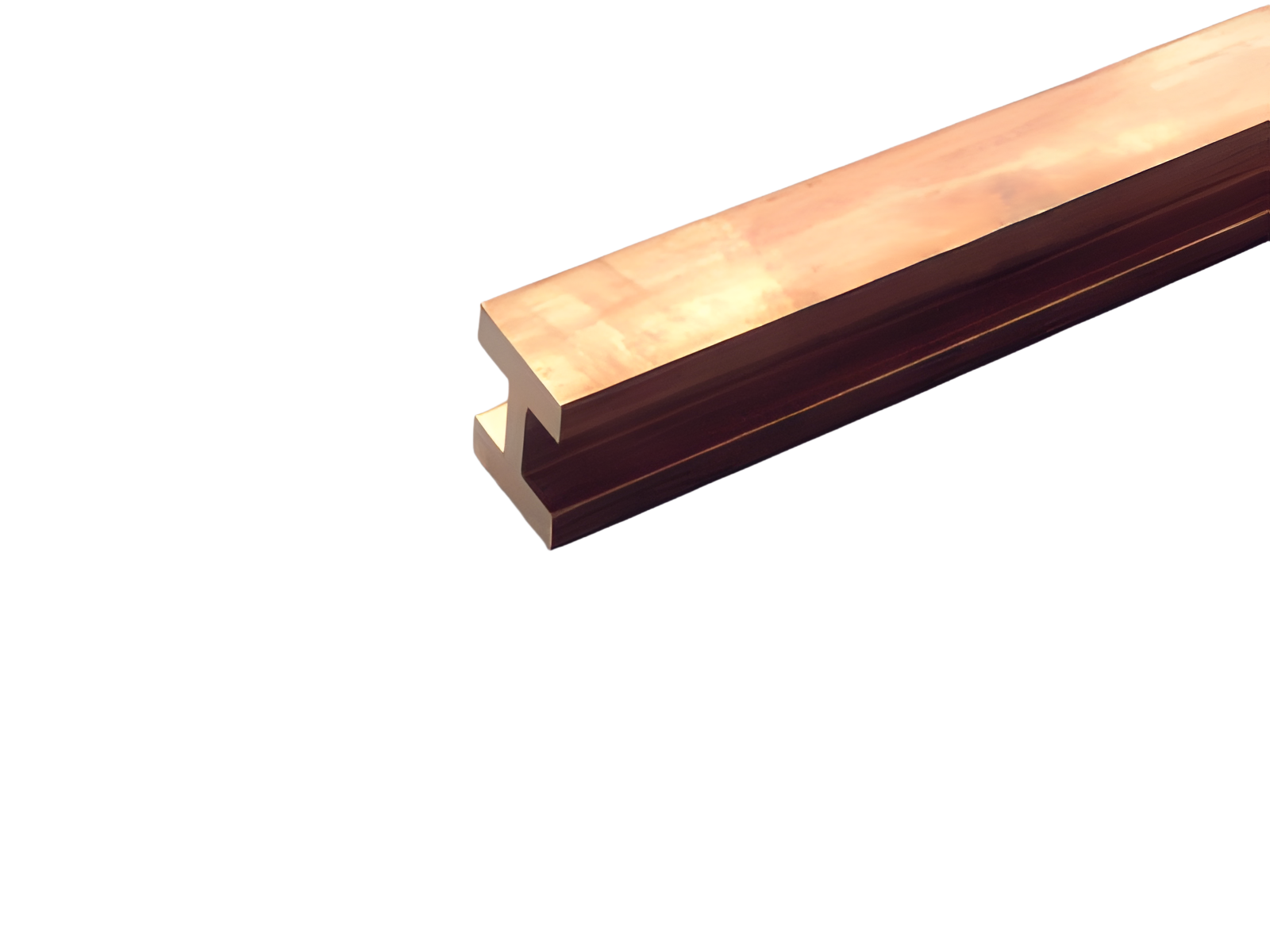

double-T section busbar 720 mm² (01229)

The picture may show a similar product.

Description

Part No.: 01229000

double-T section busbar 720 mm²

length 3.60 m, plain

System

60Classic, centre feed unit

Product group	06
Subgroup	91

pack size	1
EAN	4021267012298

ECLASS 6.1	27370303
ECLASS 7.1	27370303
ETIM 4.0	EC001522
ETIM 5.0	EC001522

Approvals

Standards

IEC 61439-1:2020

UL 508

Approvals

CSA , UL , DNV GL

for UL feeder circuits >250V

type number: H720-L

UL file: E123577, UL category (for USA): NMTR https://www.ul.com

UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com

CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020

Electrical data

power dissipation of the article:

The power dissipation at a typical load of 80 % results to 174.7 W.

(The power dissipation at full load would be 273.0 W.)

Supplementary data IEC
The following values have been verified with tests under certain conditions. Please ask Wöhner for this conditions before designing your panel.

current at 55 K:

1600 A

diagram current capacity (IEC)

Details UL
Standards
UL 508

for UL feeder circuits >250V

certified in the Woehner UL file E197039
current rating acc. to UL 508:	1400 A
Notice the rated voltage of the used busbar support in the application.

Mechanical data
W x H x D:	3600 x 30 x 40
weight:	2332.0 kg/100
cross-section:	720 mm²

Edge radius 0.5

Application notes

Please respect the insulation characteristics of the busbar support for your application.

short-circuit withstandability:	see product description of the used busbar support

for UL feeder circuits >250V
