terminal compartment cover (33733)

The picture may show a similar product.

Description

Part No.: 33733000A

terminal compartment cover

universal for NH-rails size 1 - 3 and connection rail 800 A

size 1- 3

System

185Power

Product group	12
Subgroup	70

pack size	1
EAN	4021267337339

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Mechanical data
W x H x D:	100 x 166 x 150
weight:	30.0 kg/100

Application notes


short-circuit withstandability:	not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

| Text for specification - GAEB90 (in German) (*.d81)

Usage

33702000A
QUADRON^®185Power
in-line fuse switch-disconnector 400 A
size 2, 3-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33717000A
QUADRON^®185Power
in-line fuse switch-disconnector 400 A
size 2, 1-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33718000A
QUADRON^®185Power
in-line fuse switch-disconnector 630 A
size 3, 1-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33723000A
QUADRON^®185Power
in-line fuse switch-disconnector 630 A
size 3, 3-pole switchable, with fuse monitoring
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33722000A
QUADRON^®185Power
in-line fuse switch-disconnector 400 A
size 2, 3-pole switchable, with fuse monitoring
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33716000A
QUADRON^®185Power
in-line fuse switch-disconnector 250 A
size 1, 1-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33701000A
QUADRON^®185Power
in-line fuse switch-disconnector 250 A
size 1, 3-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33703000A
QUADRON^®185Power
in-line fuse switch-disconnector 630 A
size 3, 3-pole switchable
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33721000A
QUADRON^®185Power
in-line fuse switch-disconnector 250 A
size 1, 3-pole switchable, with fuse monitoring
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33633000A
QUADRON^®185Power Speed
NH in-line switch-disconnector-fuse size 2
connection top M12
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

33638000A
QUADRON^®185Power Speed
NH in-line switch-disconnector-fuse size 2
with fuse monitoring
connection bottom M12
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

33635000A
QUADRON^®185Power Speed
NH in-line switch-disconnector-fuse size 3
connection top M12
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

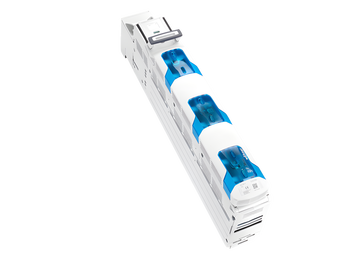

33631000A
QUADRON^®185Power Speed
NH in-line switch-disconnector-fuse size 1
connection top M12
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
phase-out product
More

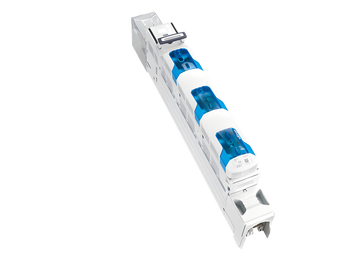

33636000A
QUADRON^®185Power Speed
NH in-line switch-disconnector-fuse size 1
with fuse monitoring
connection bottom M12
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

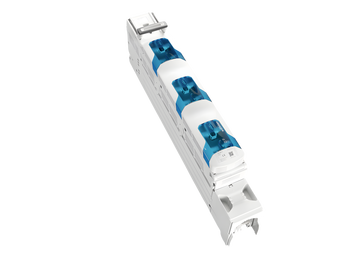

33634000A
QUADRON^®185Power Speed
NH in-line switch-disconnector-fuse size 3
connection bottom M12
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

33632000A
QUADRON^®185Power Speed
NH in-line switch-disconnector-fuse size 2
connection bottom M12
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

33640000A
QUADRON^®185Power Speed
NH in-line switch-disconnector-fuse size 3
with fuse monitoring
connection bottom M12
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

33630000A
QUADRON^®185Power Speed
NH in-line switch-disconnector fuse size 1
connection bottom M12
double-breaking
for busbars: 30, 40, 60, 80, 100, 120 x 10
accessory required for busbar mounting
More

33708000A
QUADRON^®185Power
NH in-line fuse base 630 A
size 3
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33707000A
QUADRON^®185Power
NH in-line fuse base 400 A
size 2
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

01438000A
CRITO^®185Power
connection rail
3-pole
screw M12
connection top or bottom
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

33706000A
QUADRON^®185Power
NH in-line fuse base 250 A
size 1
screw M12
for busbars: 30, 40, 60, 80, 100, 120 x 10
More

https://pim.woehner.de/EN/US/1000158214

Find your contact

to the contact site

Wöhner GmbH & Co. KG
Elektrotechnische Systeme
Mönchrödener Str. 10
96472 Rödental

Order hotline (Germany)
+49 9563 751 161
order@woehner.de

Technical hotline (Germany)
+49 9563 751 260
support@woehner.com
