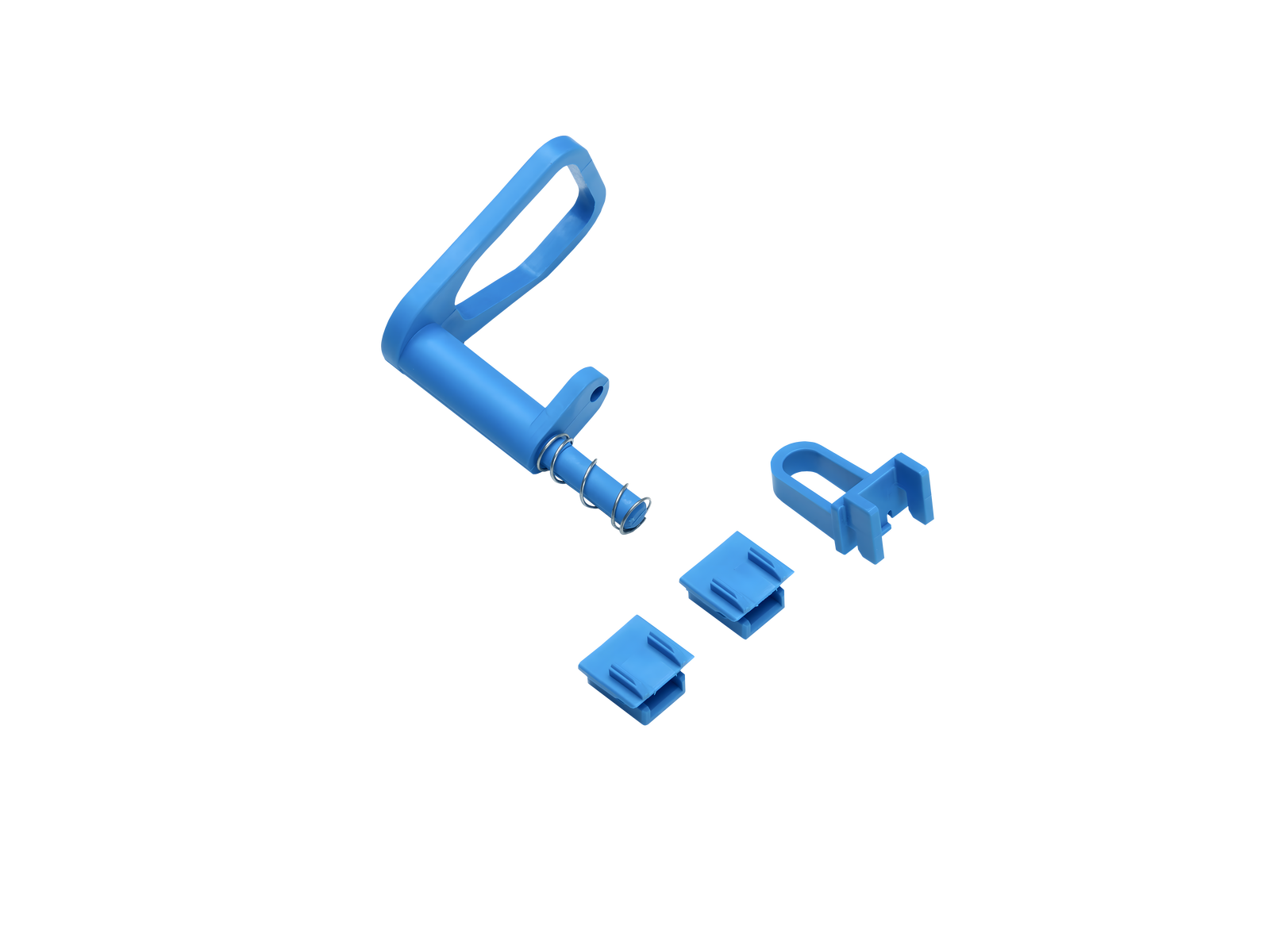

lid interlock (33157)

The picture may show a similar product.

Description

Part No.: 33157 000

lid interlock

for sealing wire or 3 padlocks with shackle of 4 - 7 mm

Size 1 - 3

System

60Classic

Product group	09
Subgroup	51

pack size	10
EAN	4021267331573

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Mechanical data
weight:	0.5 kg/100

Application notes


not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

CAD Daten WSCAD

Downloads

| General technical information

| Mounting instructions

| Data packet EPlan (*.edz)

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

33603 000
QUADRON^®60Classic
NH fuse switch-disconnector size 3, 630 A
screw M12
connection top or bottom
for busbars: 12, 20, 30 x 10 and section busbars
More

33393 000
QUADRON^®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
box terminal
for mounting plate
More

33149 000
QUADRON^®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
with electromechanical fuse monitoring
for mounting plate
More

33202 000
QUADRON^®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
for mounting plate
More

33150 000
QUADRON^®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
with electromechanical fuse monitoring
for mounting plate
More

33151 000
QUADRON^®Panel
NH fuse switch-discon. size 3, 630 A, panel mounting
screw M12
with electromechanical fuse monitoring
for mounting plate
More

33203 000
QUADRON^®Panel
NH fuse switch-discon. size 3, 630 A, panel mounting
screw M12
for mounting plate
More

33331 000
QUADRON^®Panel
NH fuse switch-discon. size 2, 400 A, panel mounting
screw M10
with electronic fuse monitoring
for mounting plate
More

33600 000
QUADRON^®60Classic
NH fuse switch-disconnector size 1, 250 A
box terminal
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33330 000
QUADRON^®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
with electronic fuse monitoring
for mounting plate
More

33201 000
QUADRON^®Panel
NH fuse switch-discon. size 1, 250 A, panel mounting
screw M10
for mounting plate
More

33162 000
QUADRON^®60Classic
NH fuse switch-disconnector size 3, 630 A
screw M12
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10 and section busbars
More

33160 000
QUADRON^®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33332 000
QUADRON^®Panel
NH fuse switch-discon. size 3, 630 A, panel mounting
screw M12
with electronic fuse monitoring
for mounting plate
More

33161 000
QUADRON^®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
with electromechanical fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10 and section busbars
More

33602 000
QUADRON^®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
connection top or bottom
for busbars: 12, 20, 30 x 10 and section busbars
More

33326 000
QUADRON^®60Classic
NH fuse switch-disconnector size 2, 400 A
screw M10
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10 and section busbars
More

33327 000
QUADRON^®60Classic
NH fuse switch-disconnector size 3, 630 A
screw M12
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 20, 30 x 10 and section busbars
More

33325 000
QUADRON^®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
with electronic fuse monitoring
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

33601 000
QUADRON^®60Classic
NH fuse switch-disconnector size 1, 250 A
screw M10
connection top or bottom
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

https://pim.woehner.de/EN/US/1000047358

Find your contact

to the contact site

Wöhner GmbH & Co. KG
Elektrotechnische Systeme
Mönchrödener Str. 10
96472 Rödental

Order hotline (Germany)
+49 9563 751 161
order@woehner.de

Technical hotline (Germany)
+49 9563 751 260
support@woehner.com
