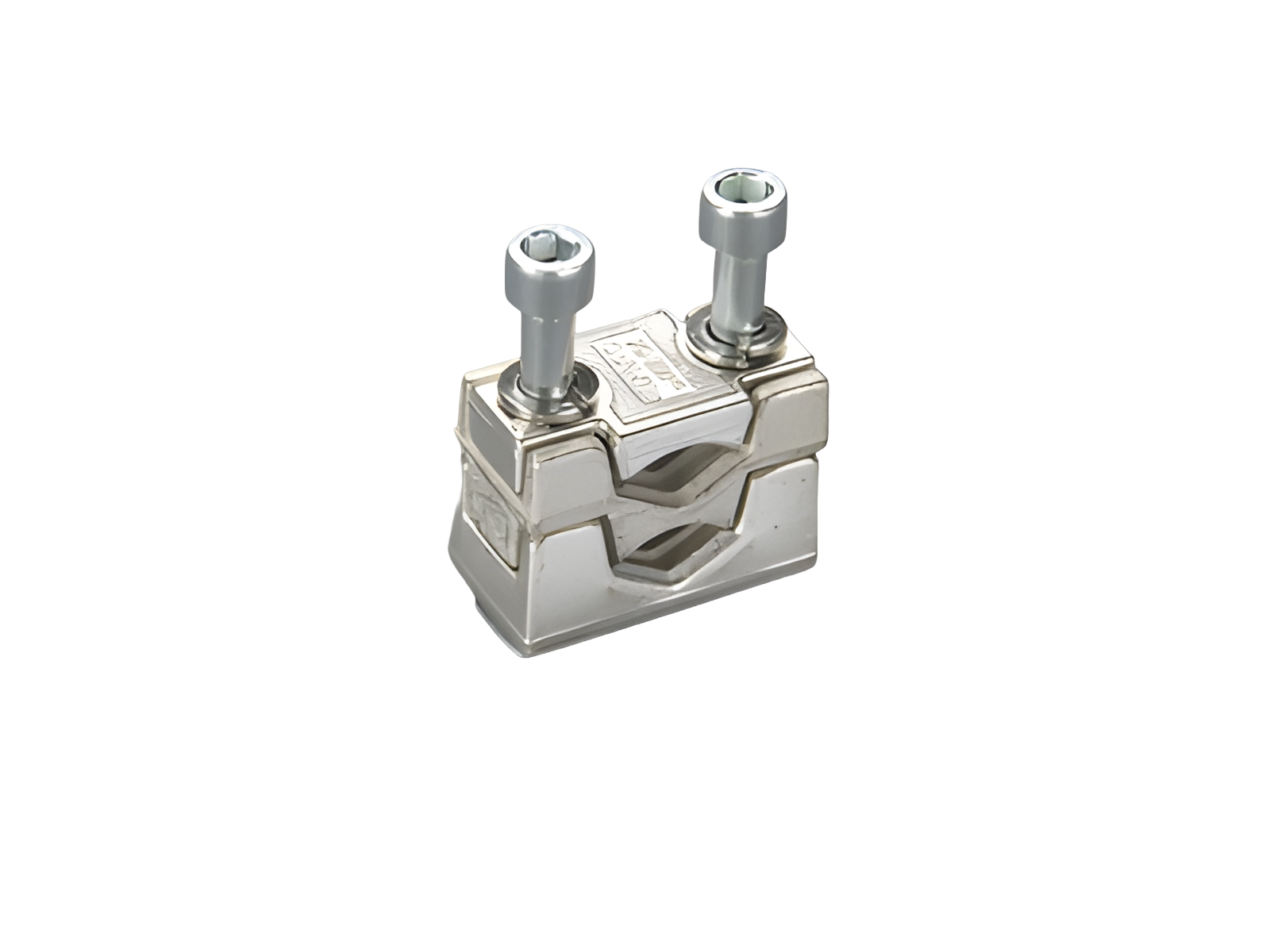

prism terminal, double, for Cu cables (33145)

The picture may show a similar product.

Description

Part No.: 33145000

prism terminal, double, for Cu cables

2x 35 - 70 mm²

for QCB-NH1, QCS-NH1, QCS-320

System

60Classic

Product group	09
Subgroup	51

pack size	1
EAN	4021267331450

ECLASS 6.1	27142190
ECLASS 7.1	27142190
ETIM 4.0	EC002498
ETIM 5.0	EC002498

Approvals

Standards

IEC 60947-1:2020
IEC 60947-3:2020 AC ratings only

Technical data

Details IEC
Standards
IEC 60947-1:2020 IEC 60947-3:2020 AC ratings only

Mechanical data
weight:	16.6 kg/100

Terminal points
screw drive:	S5
wire stripping:	23 mm
min. cross-section:	35 mm²
max. cross-section:	70 mm²
rm:	35 - 70 mm²
f:	35 - 70 mm²
f + AE:	35 - 70 mm²
(f + AE may not fit with max. cross-section)
sm:	35 - 70 mm²
Md min.:	4.8 Nm
Md max.:	7.2 Nm
Not suitable for aluminium cables !

Application notes

Not suitable for aluminium cables !

short-circuit withstandability:	determined by main product

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| Mounting instructions

| CAD model 3D PDF

| CAD model 3D STP

| Data packet EPlan (*.edz)

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)
