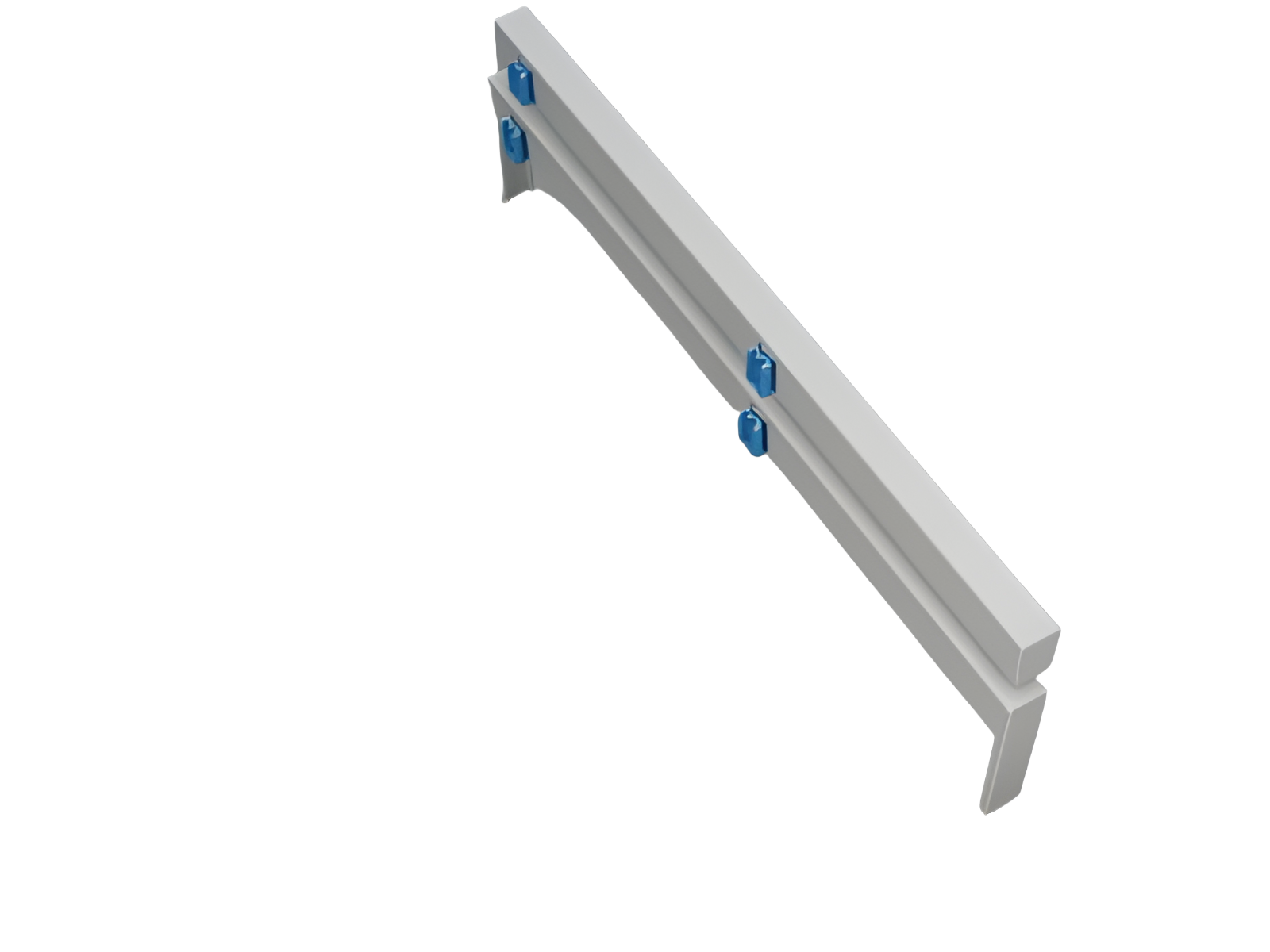

side-mounted module for busbar adapters (32964)

The picture may show a similar product.

Description

Part No.: 32964000

side-mounted module for busbar adapters

attachable to both sides

9 x 200

for EMC60..

System

60Classic

Product group 05
Subgroup 57
pack size 10
EAN 4021267329648
ECLASS 6.1 27370390
ECLASS 7.1 27370390
ETIM 4.0 EC002498
ETIM 5.0 EC002498

Approvals

Standards

IEC 61439-1:2020

Approvals

DNV GL

for UL feeder circuits >250V

CCC approval: no certification required

Technical data

Details IEC
Standards
IEC 61439-1:2020
for UL feeder circuits >250V
Mechanical data
W x H x D: 9 x 200 x 52
weight: 4.3 kg/100

Application notes

short-circuit withstandability: not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit
for UL feeder circuits >250V

Links

Article master data, overviews and prices

Current prices and surcharges

3D and 2D data in a wide range of formats

Downloads

| General technical information

| CAD model 3D PDF

| CAD model 3D STP

| CAD symbol 2D DXF

| Dimensioned drawing

| EU declaration of conformity

| Product description (PDF)

| Product data for design verfication according to IEC / EN 61439-1

| Text for specification - extended version (*.rtf)

| Text for specification - standard version (*.rtf)

Usage

32420000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 200, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32426000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
54 x 260, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32425000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
45 x 260, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

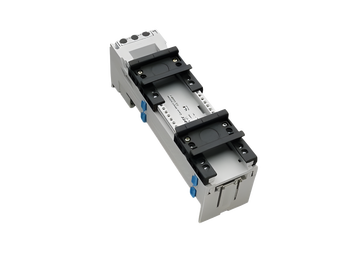

32421000
EQUES®60Classic
busbar component support
2 adjustable mounting rails
54 x 200, with removable upper section, without electrical connection
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32408000
EQUES®60Classic
busbar adapter 32 A
2 adjustable mounting rails
54 x 260, with removable upper section and leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32402000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 260, with removable upper section and leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

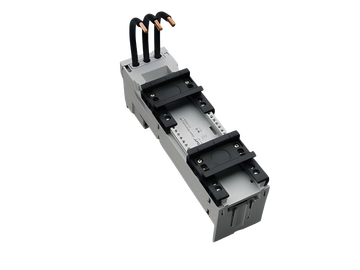

32412000
EQUES®60Classic
busbar adapter 45 A
2 adjustable mounting rails
54 x 200, with removable upper section and leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32400000
EQUES®60Classic
busbar adapter 25 A
2 adjustable mounting rails
45 x 200, with removable upper section and leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32416000
EQUES®60Classic
busbar adapter 45 A
2 adjustable mounting rails
54 x 260, with removable upper section and leads AWG 8 (10 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32404000
EQUES®60Classic
busbar adapter 32 A
2 adjustable mounting rails
54 x 200, with removable upper section and leads AWG 10 (6 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More

32401000
EQUES®60Classic
busbar adapter 16 A
for direct starter Allen-Bradley 140M-RC2E, Eaton PKZM0, Siemens S00, Schneider Electric GV2 with spring terminals
45 x 200, with removable upper section and leads AWG 12 (4 mm²)
for busbars: 12, 15, 20, 25, 30 x 5, 10 and section busbars
More
