The picture may show a similar product.
Part No.: 32950000

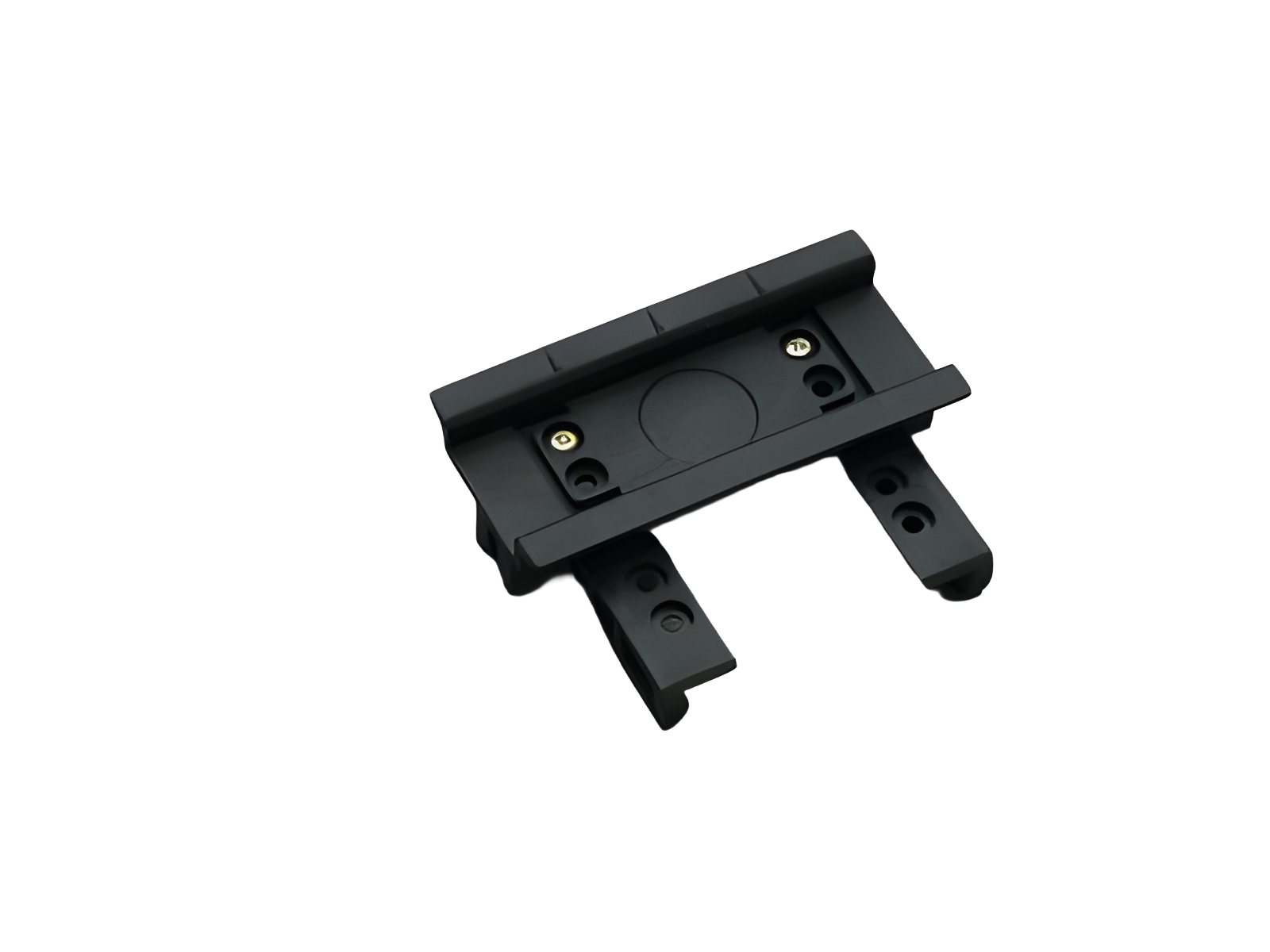

mounting rail 72 mm
for busbar adapters
System
60Classic
| Product group | 05 |
| Subgroup | 57 |
| pack size | 10 |
| EAN | 4021267329501 |
| ECLASS 6.1 | 27370390 |
| ECLASS 7.1 | 27370390 |
| ETIM 4.0 | EC000212 |
| ETIM 5.0 | EC001285 |
Standards
IEC 61439-1:2020
UL 508
Approvals
CSA , UL , DNV GL
for UL feeder circuits >250V
type number: TS35-L
UL file: E123577, UL category (for USA): NMTR https://www.ul.com
UL file: E123577, UL category (for Canada): NMTR7 https://www.ul.com
CSA file: 110285, CSA class: 3211-37 https://directories.csa-international.org
CCC approval: no certification required
| Details IEC | |
| Standards | |
| IEC 61439-1:2020 |
| Details UL | |
| Standards | |
| UL 508 |
| for UL feeder circuits >250V |
| Mechanical data | |
| W x H x D: | 72 x 57 x 19 |
| weight: | 2.0 kg/100 |
| short-circuit withstandability: | not applicable, since the product does not contain or carry any live parts or is not stressed in the case of a short-circuit |
| for UL feeder circuits >250V | |
